Nutone 851N Exhaust Fan

Model: 851N

Save Part Not Listed?
product name

Nutone 851N

...
...
1
Thumb Nut BRO-14436
...
2
Grille Assembly BRO-12310
...
3
Adjustable Sleeve Assembly BRO-11796
...
4
Motor Bracket Assembly BRO-17009
...
5
Motor BRO-14395
...
6
Fan Blade Assembly BRO-14400
...
7
Housing Assembly BRO-10981
...
8
Inner Louver Assembly, Louver Assembly Includes Hinge Rod. BRO-10742
...
9
Rubber Bumper BRO-10290
...
10
Receptical Mtg. Plate BRO-10986
...
11
Plug Receptical BRO-10034
...
12
Grommet For Motor Bracket BRO-10058
...
13
Screw Stud (1/4-20 X 1 1/4) BRO-17022
...
14
Screw Stud (1/4-20 X 1 3/4) BRO-17021
...
15
Screw Stud (1/4-20 X 1 3/4) BRO-17023

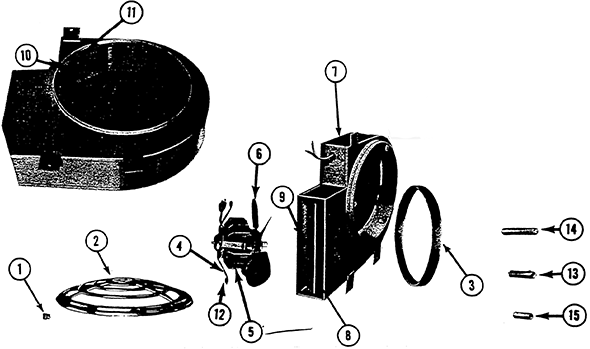

Schematic Image Zoomed
