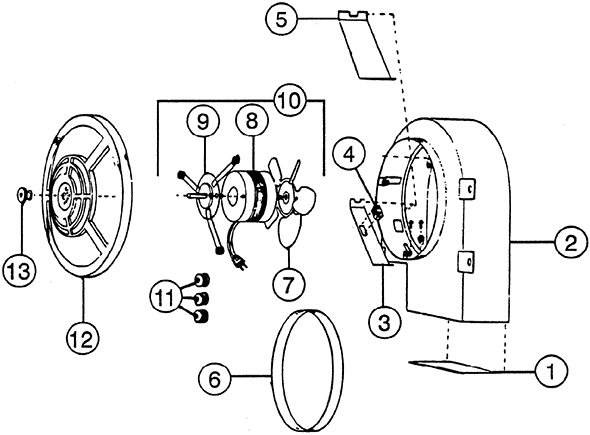

Nutone 8510 Exhaust Fan

Model: 8510

Save Part Not Listed?

Nutone 8510

Envelope Assembly(Includes Screw Studs -1 3/4 Lg. And 13/16" Lg.) BRO-170130000

Envelope Assembly(Includes Screw Studs -1 3/4 Lg. And 13/16" Lg.) BRO-17013-0000

Louver BRO-10742000

Louver BRO-10742-000

"A" Housing Complete Ref. No'S1,2,3,4 & 5 BRO-69006-000

"A" Housing Complete Ref. No'S1,2,3,4 & 5 BRO-69006000

Receptacle Mounting Plate BRO-69007-000

Receptacle Mounting Plate BRO-69007000

Plug Receptacle BRO-10034-000

Plug Receptacle BRO-10034000

Outlet Box Cover BRO-10987000

Outlet Box Cover BRO-10987-000

Fan Blade (10" Dia. -5 1/16" Hub) BRO-14400000

Fan Blade (10" Dia. -5 1/16" Hub) BRO-14400-000

Motor (5/16" Shaft) No. On Motor Data Plate -Ja2R009N Or Ak4619A C.C.W. Rot. BRO-26735SER

Motor (5/16" Shaft) No. On Motor Data Plate -Ja2R009N Or Ak4619A C.C.W. Rot. BRO-26735-SER

Motor Bracket BRO-64926-000

Motor Bracket BRO-64926000

"B" Unit (Motor, Fan Blade And Motor Bracket) BRO-69036000

"B" Unit (Motor, Fan Blade And Motor Bracket) BRO-69036-000

Grommet Set (3) BRO-1241A000

Grommet Set (3) BRO-1241A-000

Grille -Anodized Aluminum (13 1/2 Dia.) BRO-17705000

Grille -Anodized Aluminum (13 1/2 Dia.) BRO-17705-000

Thumb Nut BRO-14436000

Thumb Nut BRO-14436-000
