Nutone 8310 Exhaust Fan

Model: 8310

Save Part Not Listed?
product name

Nutone 8310

...
...
2
Outlet Box Cover BRO-10737000
...
2
Outlet Box Cover BRO-10737-000
...
3
Receptacle Mounting Plate Complete BRO-69004-000
...
3
Receptacle Mounting Plate Complete BRO-69004000
...
4
Receptacle BRO-10034-000
...
4
Receptacle BRO-10034000
...
6
Housing Assembly Current Production BRO-15846005
...
6
Housing Assembly Current Production BRO-15846-005
...
7
Louver Assembly BRO-10742000
...
7
Louver Assembly BRO-10742-000
...
8
Grille Assembly BRO-17701018
...
8
Grille Assembly BRO-17701-018
...
9
Grille Screw Current -1/4 -20 X 19/16 BRO-12220001
...
9
Grille Screw Current -1/4 -20 X 19/16 BRO-12220-001
...
9
Grille Screw Old Style -1/4-20X 13/16 BRO-21988001
...
9
Grille Screw Old Style -1/4-20X 13/16 BRO-21988-001
...
10
"B" Unit (Motor, Blade, Bracket) Current BRO-69097000
...
10
"B" Unit (Motor, Blade, Bracket) Current BRO-69097-000
...
11
Motor Bracket Current BRO-15848000
...
11
Motor Bracket Current BRO-15848-000
...
12
Motor Current BRO-26721-SER
...
12
Motor Current BRO-26721SER
...
12
Motor Early Production BRO-1195A000
...
12
Motor Early Production BRO-1195A-000
...
13
Fan Blade Current BRO-18760-000
...
13
Fan Blade Early Production BRO-11805-000
...
13
Fan Blade Current BRO-18760000
...
13
Fan Blade Early Production BRO-11805000
...
14
Grommet Set Early Production BRO-1241A-000
...
14
Grommet Set Early Production BRO-1241A000

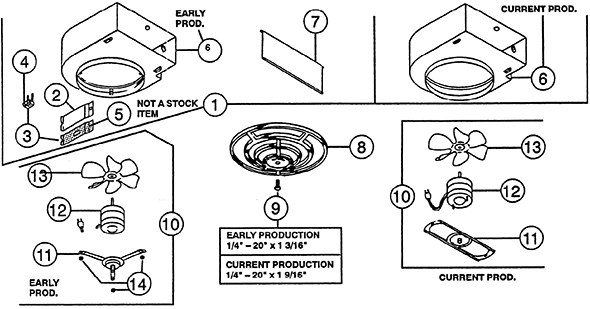

Schematic Image Zoomed
