Nutone 8220 Exhaust Fan

Model: 8220

Save Part Not Listed?
product name

Nutone 8220

...
...
1
Grille Screw BRO-11245001
...
1
Grille Screw BRO-11245-001
...
2
Grille Assembly BRO-17701018
...
2
Grille Assembly BRO-17701-018
...
3
13" Unit Ref. No'S 4, 5, And 6 BRO-69028000
...
3
13" Unit Ref. No'S 4, 5, And 6 BRO-69028-000
...
4
Motor Bracket BRO-11829000
...
4
Motor Bracket BRO-11829-000
...
5
Motor BRO-2670-SER
...
5
Motor BRO-2670SER
...
6
Fan Blade BRO-11805-000
...
6
Fan Blade BRO-11805000
...
7
Hanger Bar Set (2) BRO-13306-000
...
7
Hanger Bar Set (2) BRO-13306000
...
8
"A" Housing BRO-109414M5
...
9
Outlet Box Cover Complete BRO-10247-000
...
9
Outlet Box Cover Complete BRO-10247000
...
10
Plug Receptacle BRO-10034-000
...
10
Plug Receptacle BRO-10034000
...
11
Outlet Box Cover BRO-10247-000
...
11
Outlet Box Cover BRO-10247000
...
12
Outlet Box (Not Shown) BRO-10473-000
...
12
Outlet Box (Not Shown) BRO-10473000
...
13
Ceiung Mounting Bracket (Set Of 4) BRO-53194-000
...
13
Ceiung Mounting Bracket (Set Of 4) BRO-53194000

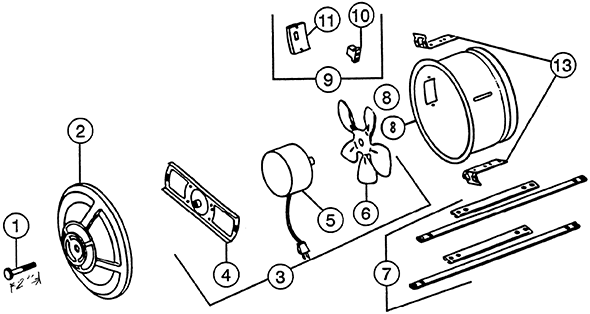

Schematic Image Zoomed
