product name

Nutone 8110WH Exhaust Fan

Model: 8110WH

Save Part Not Listed?
product name

Nutone 8110WH

...
...
1
Grille Screw BRO-11245001
...
1
Grille Screw BRO-11245-001
...
2
Grille Assembly-11" Square Aluminum White BRO-17707-206
...
2
Grille Assembly-11" Square Aluminum BRO-17707-018
...
2
Grille Assembly-11" Square Aluminum BRO-17707018
...
2
Grille Assembly-11" Square Aluminum White BRO-17707206
...
3
"B" Unit (Ref. No. 4, 5, And 6) BRO-69029000
...
3
"B" Unit (Ref. No. 4, 5, And 6) BRO-69029-000
...
4
Motor Bracket BRO-69098000
...
4
Motor Bracket BRO-69098-000
...
5
Motor 5/16" Shaft - No. On Data Plate Ak4K36A Or Aa2M080F BRO-26754SER
...
5
Motor 5/16" Shaft - No. On Data Plate Ak4K36A Or Aa2M080F BRO-26754-SER
...
6
Fan Blade - 10" Diameter 5/16" Hub BRO-14400000
...
6
Fan Blade - 10" Diameter 5/16" Hub BRO-14400-000
...
7
Outlet Box BRO-10029-005
...
7
Outlet Box BRO-10029005
...
8
Inside Sleeve Assembly BRO-1255A000
...
8
Inside Sleeve Assembly BRO-1255A-000
...
10
Spring Rod Assembly BRO-12438000
...
10
Spring Rod Assembly BRO-12438-000
...
11
Outlet Box Cover Assy. (Ref. No'S. 12, 13 & 14) BRO-12498000
...
11
Outlet Box Cover Assy. (Ref. No'S. 12, 13 & 14) BRO-12498-000
...
12
Plug Receptacle BRO-10034000
...
12
Plug Receptacle BRO-10034-000
...
13
Outlet Box Cover And Lever Only BRO-69056-000
...
13
Outlet Box Cover And Lever Only BRO-69056000
...
14
Switch (Push Type) BRO-10035-000
...
14
Switch (Push Type) BRO-10035000
...
15
Envelope Assembly (Pull Chain) BRO-10164-000
...
15
Envelope Assembly (Pull Chain) BRO-10164000

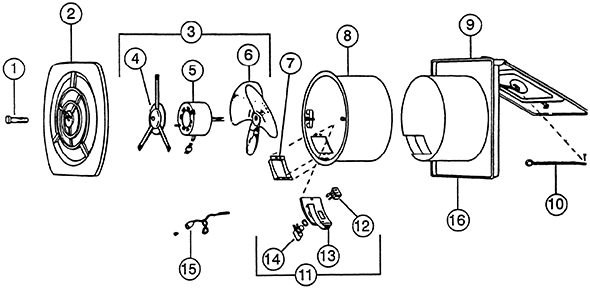

Schematic Image Zoomed
