Nutone 811 Exhaust Fan

Model: 811

Save Part Not Listed?
product name

Nutone 811

...
...
1
Grille Screw BRO-11245
...
1-B
Outside Sleeve, Panel, And Louver Assembly BRO-10129
...
2
Grille BRO-12044
...
3
Motor Bracket Assembly BRO-10344
...
4
Motor (Alternate - 12033) BRO-10342
...
5
Fan Blade Assembly BRO-10710
...
6
Inside Sleeve Assembly BRO-10020
...
7
Outside Sleeve, Louver And Panel Assembly BRO-10008
...
8
Outlet Box BRO-10029
...
9
Outlet Box Cover Assembly BRO-12498
...
10
Felt Strips BRO-10021
...
11
Spring Rod BRO-12053
...
12
Chain Catch BRO-12042
...
13
Envelope Assembly, Envelope Assembly Contains Chain Pendant, Chain Spring, Chain Coupling, Envelope. BRO-10164

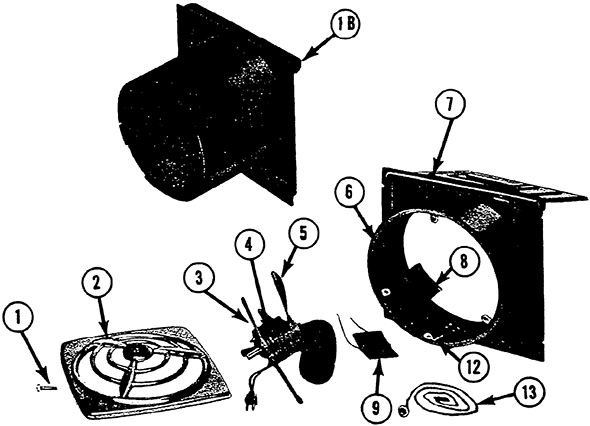

Schematic Image Zoomed
