Nutone 8070N Exhaust Fan

Model: 8070N

Save Part Not Listed?
product name

Nutone 8070N

...
...
1
Grille Screw 1/4" - 20 X 2" BRO-11245001
...
1
Grille Screw 1/4" - 20 X 2" BRO-11245-001
...
3
13" Unit (Motor, Blade & Bracket) BRO-0432A-000
...
3
13" Unit (Motor, Blade & Bracket) BRO-0432A000
...
4
Motor Bracket Assembly BRO-11829-000
...
4
Motor Bracket Assembly BRO-11829000
...
5
Motor BRO-35107000
...
5
Motor BRO-35107-000
...
6
Fan Blade BRO-35108000
...
6
Fan Blade BRO-35108-000
...
7
Outlet Box BRO-10473000
...
7
Outlet Box BRO-10473-000
...
8
Outlet Box Cover Assembly BRO-10247000
...
8
Outlet Box Cover Assembly BRO-10247-000
...
9
Outlet Box Plate BRO-10247000
...
9
Outlet Box Plate BRO-10247-000
...
10
Plug Receptacle BRO-10034000
...
10
Plug Receptacle BRO-10034-000
...
11
Inside Sleeve Assembly BRO-12046005
...
11
Inside Sleeve Assembly BRO-12046-005
...
12
Louver Spring BRO-12492000
...
12
Louver Spring BRO-12492-000
...
13
Louver Assembly BRO-12069-000
...
13
Louver Assembly BRO-12069000
...
14
Sleeve, Panel And BRO-10820-005
...
14
Sleeve, Panel And BRO-10820005

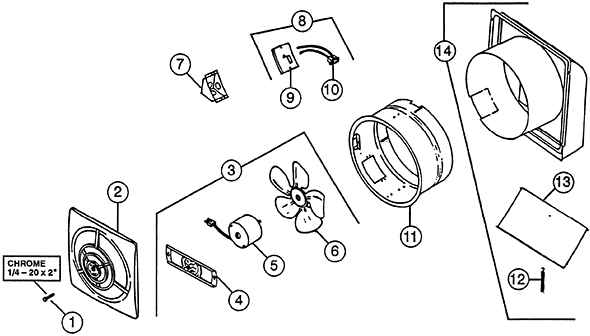

Schematic Image Zoomed
