Nutone 8010SA Exhaust Fan

Model: 8010SA

Save Part Not Listed?
product name

Nutone 8010SA

...
...
xx
New Production White Plastic Grille 180 Cfm(Will Not Fit Into Existing Housing8 ") BRO-507
...
xx
Motor Mounting Nut (2 Required & Sold Individually) BRO-S99260425
...
1
Grille Screw - 1/4" X 20" X 2", Silver BRO-S11245001
...
2
Metal Grille Satin Aluminum - 11" X 11" Square W/ Center Hole BRO-S17703018
...
3
B-Unit Assy - 26750Ser (Ccwmotor) 11805 (Ccwblade)11829(Bracket) BRO-S0432A000
...
4
Motor Bracketmotor Bracket BRO-S11829000
...
5
Motor - Ja2C271 Ja2C134, Ccw, Shaft Size 1/4 " BRO-S26750SER
...
6
Fan Blade- Metal, 5 Blade, Ccw (7.75 Wide W/ 1/4 Diam) BRO-S11805000
...
15
Receptacle (Black) BRO-S99270982
...
16
Aluminum Filter - 9 1/2" Diameter BRO-S99010042

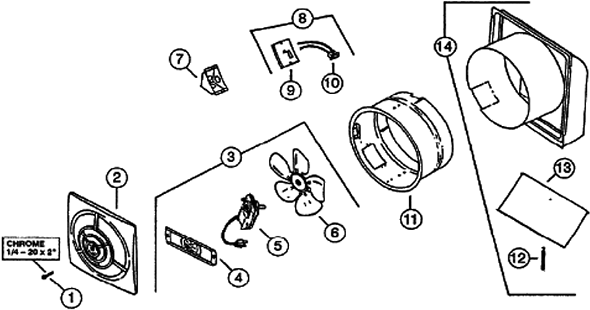

Schematic Image Zoomed
