Nutone 8010N Exhaust Fan

Model: 8010N

Save Part Not Listed?
product name

Nutone 8010N

...
...
1
Grille Screw BRO-11245001
...
1
Grille Screw BRO-11245-001
...
2
White BRO-17703-206
...
2
White BRO-17703206
...
3
"B" Unit Assembly BRO-0432A-000
...
3
"B" Unit Assembly BRO-0432A000
...
4
Motor Bracket Assembly BRO-11829000
...
4
Motor Bracket Assembly BRO-11829-000
...
5
Motor BRO-35107000
...
5
Motor BRO-35107-000
...
6
Fan Blade BRO-35108000
...
6
Fan Blade BRO-35108-000
...
7
Outlet Box BRO-10473000
...
7
Outlet Box BRO-10473-000
...
8
Inside Sleeve Assembly BRO-10154-000
...
8
Inside Sleeve Assembly BRO-10154000
...
9
Outside Sleeve, Panel & Louver BRO-10157000
...
9
Outside Sleeve, Panel & Louver BRO-10157-000
...
10
Rod And Spring A Embly BRO-12438000
...
10
Rod And Spring A Embly BRO-12438-000
...
11
Pull Chain Assembly BRO-10164000
...
11
Pull Chain Assembly BRO-10164-000
...
12
Outlet Box Cover Assembly BRO-12497000
...
12
Outlet Box Cover Assembly BRO-12497-000
...
13
Push Switch BRO-10035-000
...
13
Push Switch BRO-10035000
...
14
Outlet Box Cover BRO-0457A-000
...
14
Outlet Box Cover BRO-0457A000
...
15
Plug Receptacle BRO-10034-000
...
15
Plug Receptacle BRO-10034000

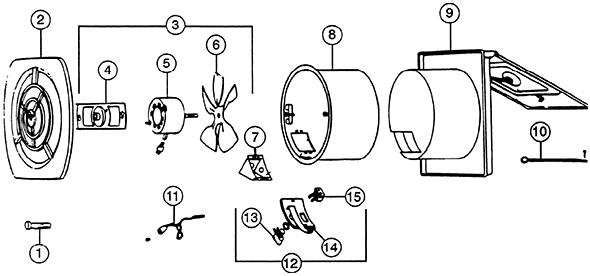

Schematic Image Zoomed
