Nutone 778WHNT Exhaust Fan

Model: 778WHNT

Save Part Not Listed?
product name

Nutone 778WHNT

...
...
D
Wire Panel Assembly (Includes Key Nos. 9, 10, 11) BRO-97015171
...
C
Blower Assembly (Includes Key Nos. 4 Thru 8) BRO-97018327
...
B
Grille Pan Assembly (Includes Key No. 3) BRO-99390176
...
A
Light Fixture Assembly (Includes Key Nos. 1, 2 And B) BRO-97018015
...
1
Glass Shade BRO-99526716
...
2
Shade Mounting Hardware BRO-97018016
...
3
Lamp, 13 W Gu24 Type Fluorescent BRO-99271393
...
4
Motor Nut, Hex Keps BRO-99260425
...
5
Motor Plate BRO-97018311
...
6
Grille Screw BRO-99150583
...
7
Motor BRO-99080634
...
8
Blower Wheel BRO-99020300
...
9
Lamp Receptacle, White BRO-99270981
...
10
Motor Receptacle, Black BRO-99270982
...
11
Wiring Panel BRO-98009612
...
12
Ground Screw BRO-99150471
...
13
Screw, 8-18 X 3/8' BRO-99170245
...
14
Wiring Plate BRO-98008868
...
15
Damper / Duct Connector BRO-97003932
...
16
Housing Assembly BRO-97014922

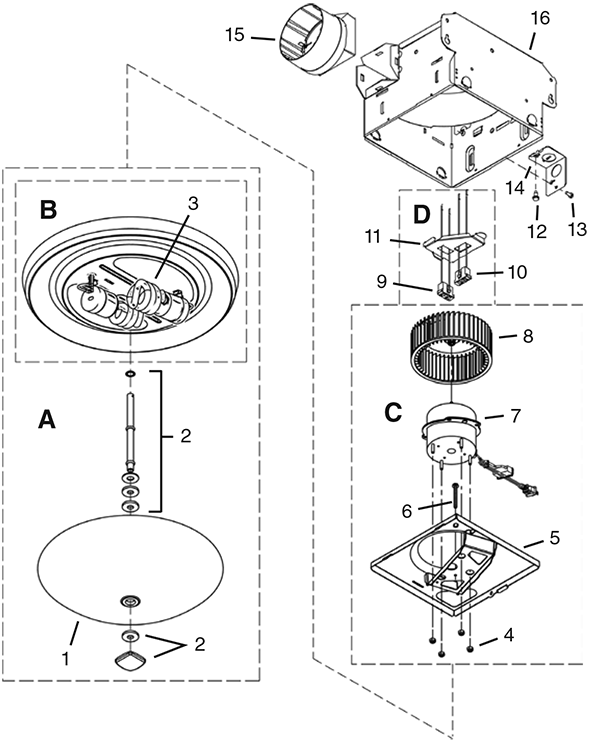

Schematic Image Zoomed
