product name

Nutone 770F Exhaust Fan

Model: 770F

Save Part Not Listed?
product name

Nutone 770F

...
...
1
Power Unit Assembly BRO-0684B000
...
1
Power Unit Assembly BRO-0684B-000
...
2
Motor BRO-87547-000
...
2
Motor BRO-87547000
...
3
Blower Wheel BRO-68739-000
...
3
Blower Wheel BRO-68739000
...
4
Reflector Assembly BRO-88730000
...
4
Reflector Assembly BRO-88730-000
...
5
Duct Adapter Assembly BRO-30652000
...
5
Duct Adapter Assembly BRO-30652-000
...
6
Hanger Bar (1) BRO-44388000
...
6
Hanger Bar (1) BRO-44388-000
...
7
Grille And Lens Assembly BRO-85315000
...
7
Grille And Lens Assembly BRO-85315-000
...
8
Wing Nut BRO-16133-000
...
8
Wing Nut BRO-16133000
...
9
Fan Receptacle BRO-10034000
...
9
Fan Receptacle BRO-10034-000
...
10
Light Receptacle BRO-82304000
...
10
Light Receptacle BRO-82304-000
...
11
Lens BRO-891 08000
...
11
Lens BRO-891 08-000
...
12
Grille BRO-85316000
...
12
Grille BRO-85316-000
...
13
Lampholder BRO-85978-000
...
13
Lampholder BRO-85978000
...
14
Ballast BRO-89378-000
...
14
Ballast BRO-89378000
...
15
Reflector BRO-88555-206
...
15
Reflector BRO-88555206

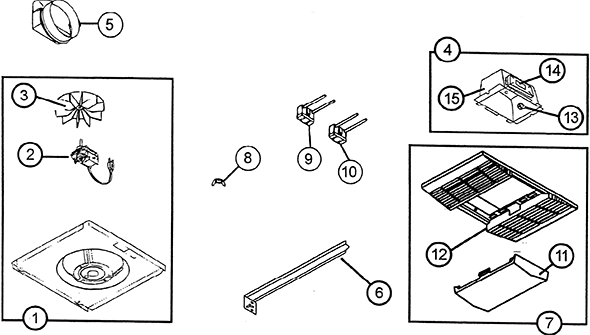

Schematic Image Zoomed
