Nutone 768CHNT Exhaust Fan

Model: 768CHNT

Save Part Not Listed?
product name

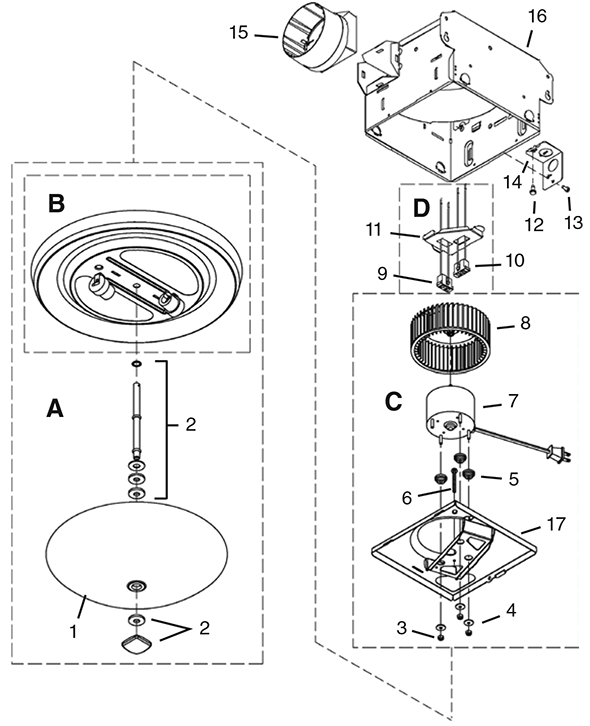

Nutone 768CHNT

...
...
D
Wire Panel Assembly (Includes Key Nos. 9, 10, 11) BRO-97015171
...
C
Blower Assembly (Includes Key Nos. 3 Thru 8) BRO-97016671
...
B
Grille Pan Assembly BRO-97017806
...
A
Light Fixture Assembly (Light Fixture Assembly Includes Glass Shade (Key No. 1), Mounting Hardware (Key No.2), And Grille Pan Assembly B BRO-97017772
...
1
Glass Shade BRO-99526716
...
2
Shade Mounting Hardware BRO-97017794
...
3
Motor Nut, Hex Lock 8-32 (4 Req.) BRO-99260558
...
4
Motor Washer (3 Req.) BRO-99250959
...
5
Motor Grommet (3 Req.) BRO-99100491
...
6
Grille Screw BRO-99150583
...
7
Motor BRO-97016722
...
8
Blower Wheel BRO-99020276
...
9
Lamp Receptacle, White BRO-99270981
...
10
Motor Receptacle, Black BRO-99270982
...
11
Wiring Panel BRO-98009612
...
12
Ground Screw BRO-99150471
...
13
Screw, 8-18 X 3/8" BRO-99170245
...
14
Wiring Plate BRO-98008868
...
15
Damper / Duct Connector BRO-97014185
...
16
Housing Assembly BRO-97014922
...
17
Motor Plate BRO-97016630
