Nutone 765HFL Ceiling Heater

Model: 765HFL

Save Part Not Listed?
product name

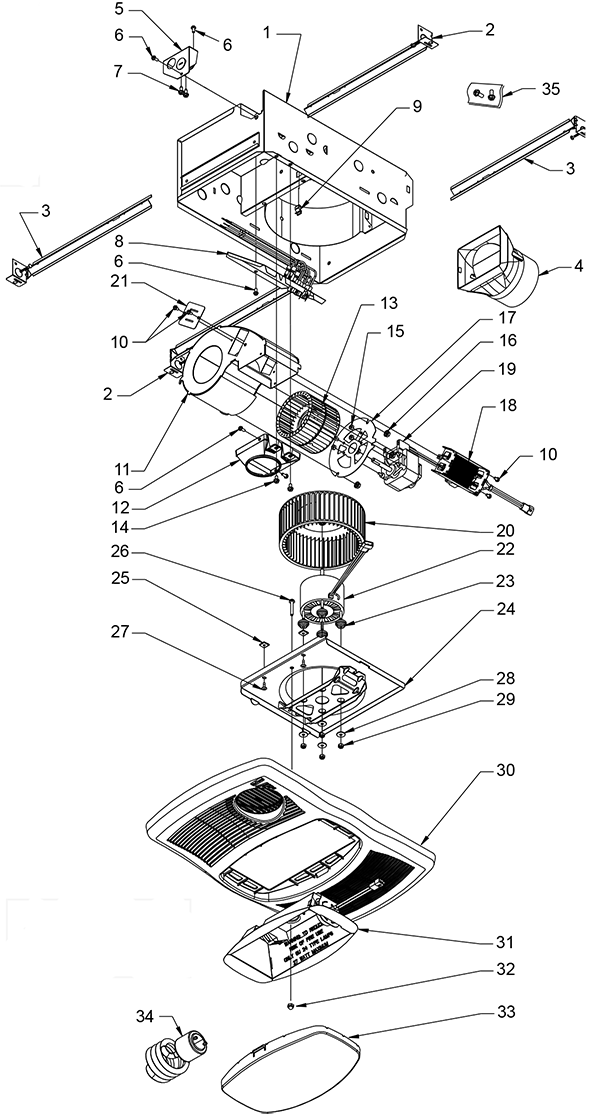

Nutone 765HFL

...
...
xx
Blower Assembly (Includes Key Nos. 20, 22, 23, 24, 26, 28, 29) BRO-97017769
...
xx
Heater Scroll Assembly (Includes Key Nos. 6, 10 Thru 19, 21) BRO-97017768
...
1
Housing Assembly BRO-97017572
...
2
Slide Mounting Channel Rh (2 Req) BRO-97017712
...
3
Slide Mounting Channel Lh (2 Req) BRO-97017711
...
4
Duct Connector Assembly, 4" BRO-97016449
...
5
Electrical Knockout Panel BRO-98010407
...
6
Screw, 8-18 X .375" (5 Req) BRO-99170245
...
7
Screw, Ground 10-32 X .500 Ph Hwh (2 Req) BRO-99150471
...
8
Wire Panel Assembly BRO-97017713
...
9
Wire Clip BRO-99420666
...
10
Screw, 8B X .25 Sl Hx Sr W (4 Req) BRO-99150415
...
11
Heater Scroll BRO-97017609
...
12
Transition BRO-98010405
...
13
Heater Wheel BRO-99020294
...
14
Screw, 10-24 X .375" (2 Req) BRO-99160304
...
15
Nut, 6-32 X 5/16 Twin Whiz (4 Req) BRO-99260428
...
16
Nut, 10-24 Whiz Hex Flange (4 Req) BRO-99260488
...
17
Heater Motor Bracket BRO-98010409
...
18
Heater Element BRO-97016565
...
19
Heater Motor BRO-99080606
...
20
Fan Wheel BRO-99020293
...
21
Heating Element Mounting Bracket BRO-98010089
...
22
Fan Motor BRO-99080602
...
23
Isolator Bushing (4 Req) BRO-99100491
...
24
Partition Assembly BRO-97017606
...
25
Sheet Metal Nut, 8-18 (2 Req) BRO-93260454
...
26
Screw, 10-24 X 1.25" BRO-99150583
...
27
Screw, 8-18 X .500" (2 Req) BRO-93150459
...
28
Washer, Flat, 8 (4 Req) BRO-99250959
...
29
Nut, Hex Lock, 8-32 (4 Req) BRO-99260558
...
30
Grille Assembly BRO-97017663
...
31
Reflector Assembly BRO-97017672
...
32
Acorn Nut BRO-97005316
...
33
Light Lens BRO-99111414
...
34
Fluorescent Lamp, 27W, BRO-99271360
...
35
Screw Hardware Bag BRO-97017739
