Nutone 761WHNT Exhaust Fan

Model: 761WHNT

Save Part Not Listed?
product name

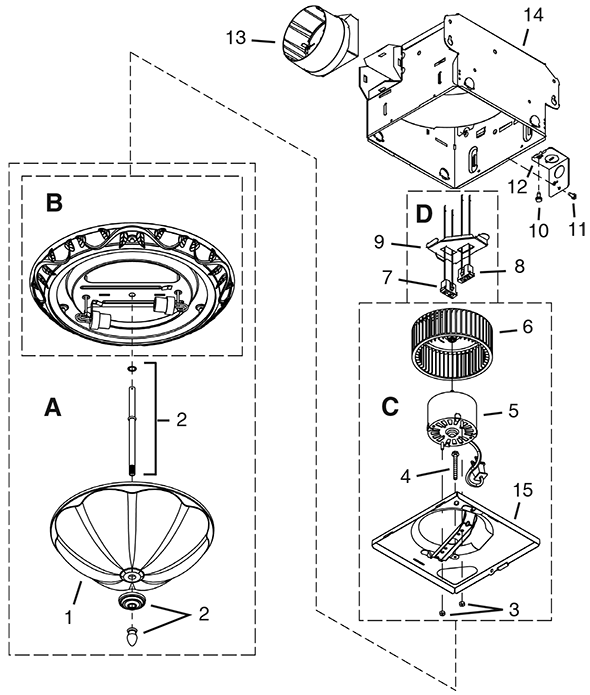

Nutone 761WHNT

...
...
D
Wire Panel Assembly (Includes Key Nos. 7, 8, 9) BRO-97015171
...
C
Blower Assembly (Includes Key Nos. 3 Thru 6) BRO-97017799
...
B
Grille Pan Assembly BRO-97017798
...
A
Light Fixture Assembly (Light Fixture Assembly Includes Glass Shade (Key No. 1), Mounting Hardware (Key No.2), And Grille Pan Assembly B BRO-97017767
...
1
Glass Shade BRO-99526708
...
2
Shade Mounting Hardware BRO-97017795
...
3
Motor Nut, Hex Keps 8-32 (2 Req.) BRO-99260425
...
4
Grille Screw BRO-99150583
...
5
Motor BRO-99080517
...
6
Blower Wheel BRO-97017164
...
7
Lamp Receptacle, White BRO-99270981
...
8
Motor Receptacle, Black BRO-99270982
...
9
Wiring Panel BRO-98009612
...
10
Ground Screw BRO-99150471
...
11
Screw, #8-18 X 3/8" BRO-99170245
...
12
Wiring Plate BRO-98008868
...
13
Damper / Duct Connector BRO-97014185
...
14
Housing Assembly BRO-97014922
...
15
Motor Plate BRO-97014926
