Nutone 758NT Exhaust Fan

Model: 758NT

Save Part Not Listed?
product name

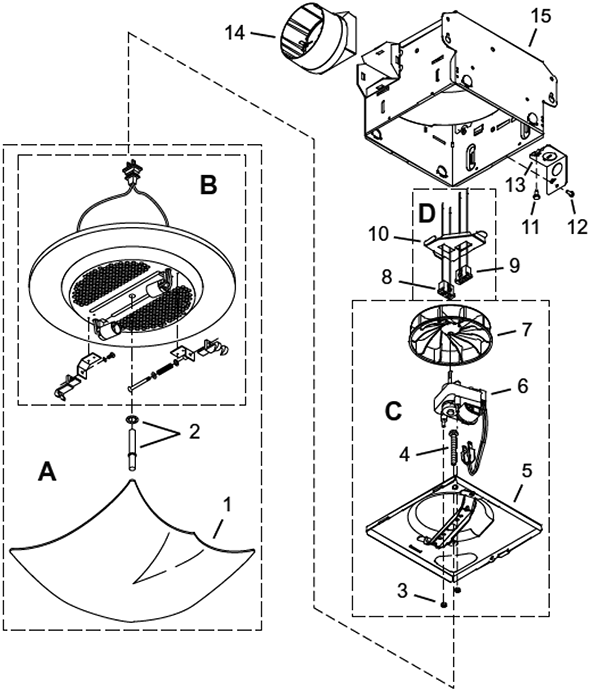

Nutone 758NT

...
...
A
Light Fixture Assembly BRO-99525301
...
D
Wire Panel BRO-97015171
...
C
Blower Assy BRO-97015312
...
2
Mounting Rod & Washer BRO-97016719
...
3
Motor Nut BRO-99260428
...
4
Grille Screw BRO-99150618
...
5
Motor Plate BRO-97014926
...
6
Motor BRO-99080522
...
6
Motor Mounting Nut BRO-99260428
...
7
Blower Wheel - 5 1/4" X 1", Plastic BRO-99110446
...
8
Receptacle - White BRO-99270981
...
9
Receptacle - Black BRO-99270982
...
10
Wiring Panel BRO-98009612
...
11
Ground Screw BRO-99150471
...
12
Sheet Metal Screw 8-18 X .375 BRO-99170245
...
13
Wiring Plate BRO-98008868
...
14
Damper/Duct Connector Assy BRO-97014185
...
15
Housing BRO-97014922
