product name

Nutone 757SNNT Exhaust Fan

Model: 757SNNT

Save Part Not Listed?
product name

Nutone 757SNNT

...
...
xx
Motor Mounting Bracket BRO-97016630
...
D
Wire Panel Assy BRO-97015171
...
C
Blower Assembly Modified Replacment BRO-97016671
...
A
Light Fixture Assembly BRO-99525323
...
xx
Motor Mounting Nut (3 Required & Sold Individually) BRO-99260425
...
2
Glass Shade BRO-97016714
...
3
Shade Mounting Hardware BRO-97016717
...
4
Nut, Hex Lock 8-32 BRO-99260558
...
5
Washers 8 C .625 (4 Required) BRO-99250959
...
6
Rubber Mount Isolator (4 Required) BRO-99100491
...
7
Grille Screw W/ Nut BRO-99150618
...
8
Motor Modified - Ja2C55 Ccw 1/4 D 1 1/4Length BRO-97016722
...
9
Blower Wheel - 5 1/2" X 2 1/8", Ccw, Black Plastic BRO-99020276
...
10
Receptacle - White BRO-99270981
...
12
Wiring Panel BRO-98009612
...
13
Ground Screw BRO-99150471
...
14
Sheet Metal Screw 8-18 X .375 BRO-99170245
...
15
Wiring Plate BRO-98008868
...
16
Damper/Duct Connector Assy BRO-97014185
...
17
Housing Assy BRO-97014922

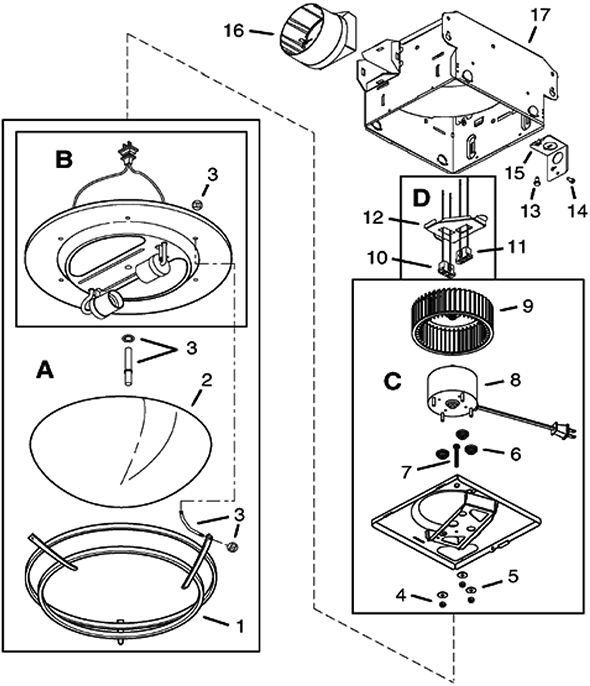

Schematic Image Zoomed
