Nutone 754NT Exhaust Fan

Model: 754NT

Save Part Not Listed?
product name

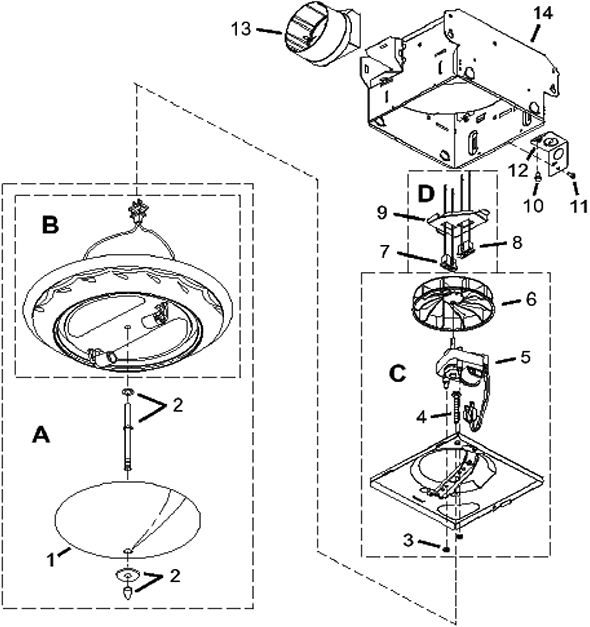

Nutone 754NT

...
...
D
Wire Panel Assy BRO-97015171
...
C
Blower Assy BRO-97015312
...
B
Grill Pan Assembly - Satin Nickel BRO-97016703
...
B
Grill Pan Assembly - Rubbed Bronze BRO-97016700
...
A
Light Fixture Assembly - Rubbed Bronze BRO-99525297
...
A
Light Fixture Assembly- Satin Nickel BRO-99525296
...
1
Glass Shade BRO-97016702
...
2
Shade Mounting Hardware - Rubbed Bronze BRO-97016701
...
3
Motor Nut BRO-99260428
...
4
Grille Screw BRO-99150618
...
5
Motor BRO-99080522
...
6
Blower Wheel - 5 1/4" X 1", Plastic BRO-99110446
...
7
Receptacle - White BRO-99270981
...
9
Wiring Panel BRO-98009612
...
10
Ground Screw BRO-99150471
...
11
Sheet Metal Screw 8-18 X .375 BRO-99170245
...
12
Wiring Plate BRO-98008868
...
13
Damper/Duct Connector Assy BRO-97014185
...
14
Housing Assy BRO-97014922
