Nutone 744SFLNT Exhaust Fan

Model: 744SFLNT

Save Part Not Listed?
product name

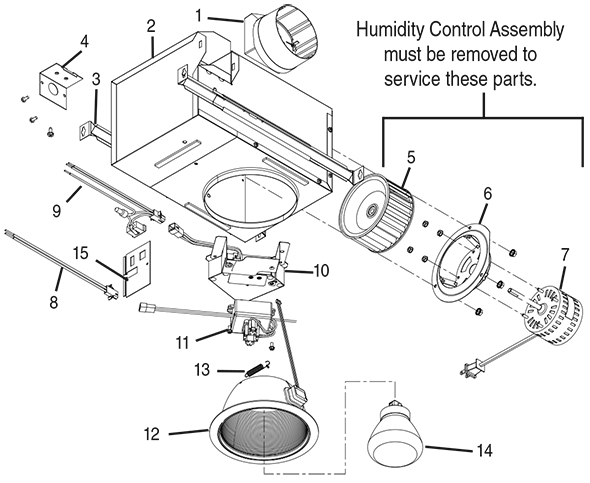

Nutone 744SFLNT

...
...
xx
Motor / Motor Bracket Assembly (Includes Key Nos. 6 & 7) BRO-97016454
...
1
Damper / Duct Connector BRO-97014185
...
2
Housing Assembly BRO-97016382
...
3
Mounting Bracket (4 Req.) BRO-98003036
...
4
Wiring Adaptor Plate BRO-98005512
...
5
Blower Wheel BRO-99524804
...
6
Motor Bracket / Venturi BRO-99524805
...
7
Motor BRO-99080557
...
8
Lamp Wire Harness BRO-99770141
...
9
Main Wire Harness BRO-99770143
...
10
Humidity Control Assy. (Includes Lamp Bracket) BRO-97018168
...
11
Ballast / Lampholder BRO-99271401
...
12
Trim Ring / Baffle With Springs & Humidity Sensor BRO-97018169
...
13
Baffle Springs (2 Req.) BRO-99525160
...
14
Fluorescent Lamp BRO-97016848
...
15
Electrical Box Cover BRO-98010628
