Nutone 744NT Exhaust Fan

Model: 744NT

Save Part Not Listed?
product name

Nutone 744NT

...
...
xx

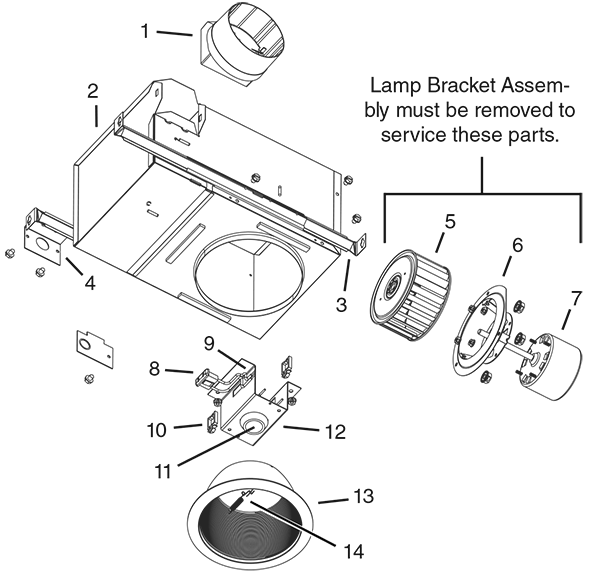

Lamp Bracket Assembly (Includes Key Nos. 8 Thru 12) BRO-97016453
...
xx
Motor / Motor Bracket Assembly (Includes Key Nos. 6 & 7) BRO-97016454
...
1
Damper / Duct Connector BRO-97014185
...
2
Housing Assembly BRO-97016382
...
3
Mounting Bracket (4 Req.) BRO-98003036
...
4
Wiring Adaptor Plate BRO-98005512
...
5
Blower Wheel BRO-99524804
...
6
Motor Bracket / Venturi BRO-99524805
...
7
Motor BRO-99080557
...
8
Receptacle BRO-99271323
...
9
Thermal Protector BRO-99271322
...
10
Plastic Wire Clip BRO-99420551
...
11
Lamp Socket BRO-99770033
...
12
Lamp Bracket BRO-97016491
...
13
Trim Ring / Baffle With Springs BRO-99524802
...
14
Baffle Springs (2 Req.) BRO-99525160
