Nutone 741WHNT Exhaust Fan

Model: 741WHNT

Save Part Not Listed?
product name

Nutone 741WHNT

...
...
xx
Finial Nut - Satin Nickel BRO-97015574
...
xx
Finial Nut - White BRO-97013914
...
C
Wire Panel Assembly (Includes Key Nos. 20, 21, 22) BRO-97015171
...
xx
Finial Cap - Satin Nickel BRO-97015575
...
xx
Finial Cap - White BRO-97013916
...
B
Blower Assembly (Includes Key Nos. 15 Thru 19) BRO-97015312
...
A
Light Fixture Assembly BRO-99523700
...
1
Finial Nut - Bright Brass BRO-97013913
...
2
Finial Cap - Bright Brass BRO-97013915
...
3
Glass Shade BRO-99523639
...
4
Shade Mounting Rod BRO-99523652
...
5
Washer BRO-99523339
...
6
Lamp Socket (2 Req.) BRO-97015320
...
7
Hex Nut, 1/8 Jam BRO-99523636
...
8
Wire Harness BRO-97015313
...
14
Grille/Pan BRO-99523502
...
15
Motor Nut, 6-32 Hex (2 Req.) BRO-99260428
...
16
Grille Screw BRO-99150618
...
17
Motor Plate BRO-97014926
...
18
Motor BRO-99080522
...
19
Blower Wheel BRO-99110446
...
20
Lamp Receptacle, White BRO-99270981
...
21
Motor Receptacle, Black BRO-99270982
...
22
Wiring Panel BRO-98009612
...
23
Ground Screw BRO-99150471
...
24
Screw, 8-18 X 318" BRO-99170245
...
25
Wiring Plate BRO-98008868
...
26
Damper/Duct Connector BRO-97014185
...
27
Housing Assembly BRO-97014922

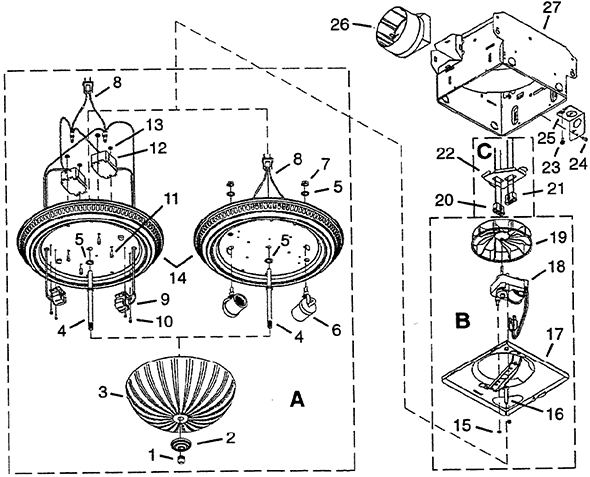

Schematic Image Zoomed
