Nutone 696N Exhaust Fan

Model: 696N

Save Part Not Listed?
product name

Nutone 696N

...
...
1
Louver BRO-29865000
...
1
Louver BRO-29865-000
...
2
Receptacle BRO-10034-000
...
2
Receptacle BRO-10034000
...
3
Outlet Box BRO-29864-000
...
3
Outlet Box BRO-29864000
...
4
Power Unit Assembly BRO-34742000
...
4
Power Unit Assembly BRO-34742-000
...
5
Fan Blade BRO-68920000
...
5
Fan Blade BRO-68920-000
...
6
Motor Version A BRO-65878000
...
6
Motor Version B BRO-34484000
...
6
Motor Version B BRO-34484-000
...
6
Motor Version A BRO-65878-000
...
8
Mounting Plate Assembly Version A BRO-68753000
...
8
Mounting Plate Assembly Version B BRO-34487000
...
8
Mounting Plate Assembly Version A BRO-68753-000
...
8
Mounting Plate Assembly Version B BRO-34487-000
...
9
Grille W/Springs Plastic BRO-53098-000
...
9
Grille W/Springs Plastic BRO-53098000
...
10
Spring Set (2) BRO-0442A-000
...
10
Spring Set (2) BRO-0442A000

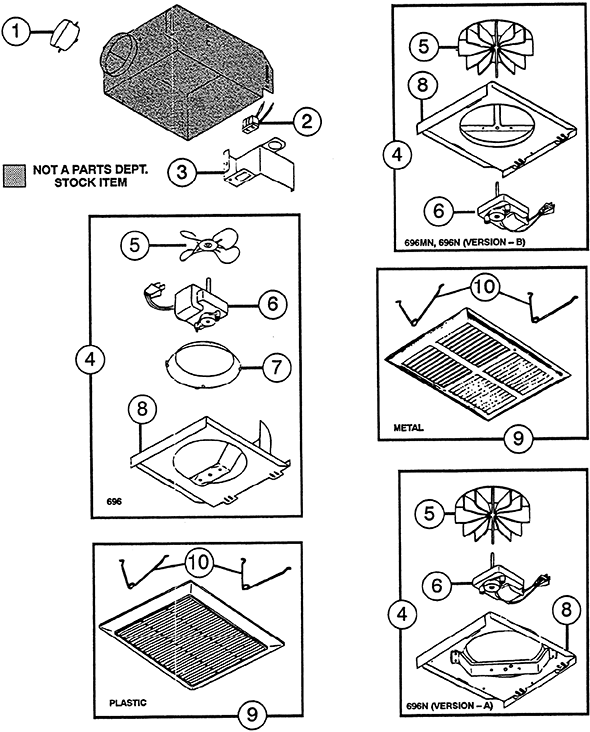

Schematic Image Zoomed
