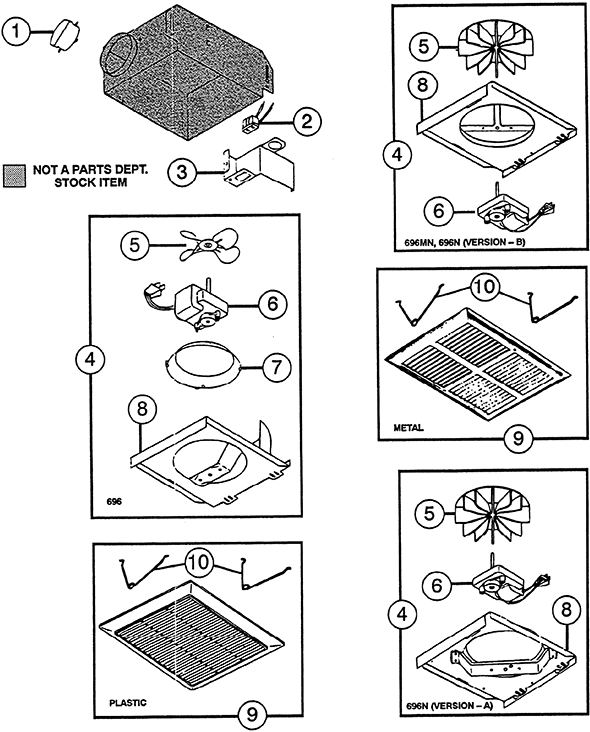

Nutone 696 Exhaust Fan

Model: 696

Save Part Not Listed?
product name

Nutone 696

...
...
1
Louver BRO-29865000
...
1
Louver BRO-29865-000
...
2
Receptacle BRO-10034000
...
2
Receptacle BRO-10034-000
...
3
Outlet Box BRO-29864000
...
3
Outlet Box BRO-29864-000
...
4
Power Unit Assembly BRO-34742000
...
4
Power Unit Assembly BRO-34742-000
...
5
Fan Blade BRO-17728000
...
5
Fan Blade BRO-17728-000
...
6
Motor BRO-29938000
...
6
Motor BRO-29938-000
...
8
Mounting Plate Assembly BRO-68753000
...
8
Mounting Plate Assembly BRO-68753-000
...
9
Grille W/Springs Plastic BRO-53098000
...
9
Grille W/Springs Plastic BRO-53098-000
...
10
Spring Set (2) BRO-0442A-000
...
10
Spring Set (2) BRO-0442A000
