Nutone 687 Exhaust Fan

Model: 687

Save Part Not Listed?
product name

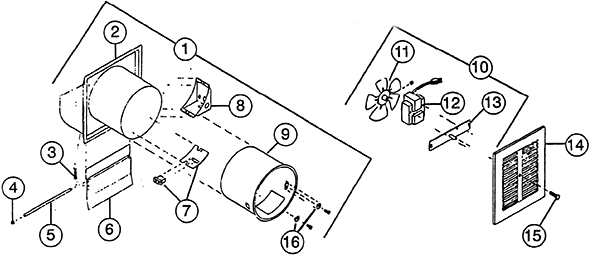

Nutone 687

...
...
3
Spring BRO-10877000
...
3
Spring BRO-10877-000
...
4
Pal Nut BRO-26855-000
...
4
Pal Nut BRO-26855000
...
5
Hinge Rod BRO-22638-000
...
5
Hinge Rod BRO-22638000
...
6
Louver BRO-22637000
...
6
Louver BRO-22637-000
...
7
Outlet Box Cover Assembly BRO-22642000
...
7
Outlet Box Cover Assembly BRO-22642-000
...
8
Outlet Box BRO-10473000
...
8
Outlet Box BRO-10473-000
...
9
Inside Sleeve BRO-22639000
...
9
Inside Sleeve BRO-22639-000
...
10
"B" Unit BRO-1315A000
...
10
"B" Unit BRO-1315A-000
...
11
Fan Blade BRO-22651000
...
11
Fan Blade BRO-22651-000
...
12
Motor BRO-1200A000
...
12
Motor BRO-1200A-000
...
13
Motor Bracket BRO-15589000
...
13
Motor Bracket BRO-15589-000
...
14
Grille BRO-13178-018
...
14
Grille BRO-13178018
...
15
Grille Screw BRO-21988-001
...
15
Grille Screw BRO-21988001
...
16
Speed Nuts BRO-18218-000
...
16
Speed Nuts BRO-18218000
