Nutone 686 Exhaust Fan

Model: 686

Save Part Not Listed?
product name

Nutone 686

...
...
1
Damper Screw -2 Required BRO-15584000
...
1
Damper Screw -2 Required BRO-15584-000
...
2
Damper Half -2 Required BRO-16754-000
...
2
Damper Half -2 Required BRO-16754000
...
3
Speed Nuts -2 Required BRO-18218-000
...
3
Speed Nuts -2 Required BRO-18218000
...
4
Outlet Box Cover Assembly BRO-22642000
...
4
Outlet Box Cover Assembly BRO-22642-000
...
5
Plug Receptacle BRO-10034000
...
5
Plug Receptacle BRO-10034-000
...
6
Outlet Box Cover BRO-22643005
...
6
Outlet Box Cover BRO-22643-005
...
7
"B" Unit BRO-15588000
...
7
"B" Unit BRO-15588-000
...
8
Fan Blade Assembly BRO-13728000
...
8
Fan Blade Assembly BRO-13728-000
...
9
Motor BRO-1200A000
...
9
Motor BRO-1200A-000
...
10
Motor Bracket Ass Em Bly BRO-15589000
...
10
Motor Bracket Ass Em Bly BRO-15589-000
...
11
Grille Anodized Alum. BRO-13178-018
...
11
Grille White Plastic BRO-30430-000
...
11
Grille White Plastic BRO-30430000
...
11
Grille Anodized Alum. BRO-13178018
...
12
Grille Screw White Plastic BRO-66716-000
...
12
Grille Screw Anodized Alum. BRO-21988-001
...
12
Grille Screw White Plastic BRO-66716000
...
12
Grille Screw Anodized Alum. BRO-21988001

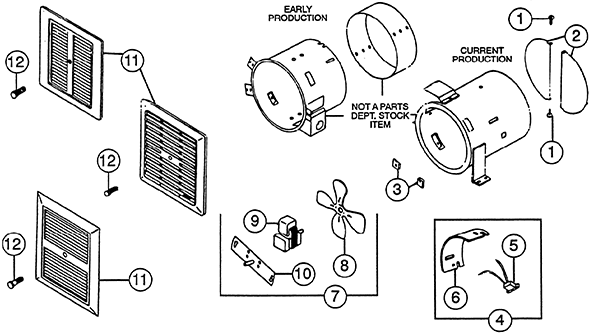

Schematic Image Zoomed
