Nutone 682LNT Exhaust Fan

Model: 682LNT

Save Part Not Listed?
product name

Nutone 682LNT

...
...
1
Mounting Bracket BRO-2005502
...
1
Mounting Bracket BRO-20055-02
...
2
Knockout Plate & Ground Screw BRO-7599900
...
2
Knockout Plate & Ground Screw BRO-75999-00
...
3
Receptacle, Black BRO-99270982
...
4
Receptacle, White BRO-0214201
...
4
Receptacle, White BRO-02142-01
...
5
Wiring Cover BRO-2012604
...
5
Wiring Cover BRO-20126-04
...
6
Riser BRO-25263-02
...
6
Riser BRO-2526302
...
7
Charcoal Filter BRO-97009563
...
8
Motor Bracket BRO-25083-01
...
8
Motor Bracket BRO-2508301
...
9
Motor BRO-02200-41
...
9
Motor BRO-0220041
...
10
Fan Blade BRO-99020187
...
11
Light Reflector BRO-2526900
...
11
Light Reflector BRO-25269-00
...
12
Light Socket BRO-0215308
...
12
Light Socket BRO-02153-08
...
13
Grille Spring (2 Req.) BRO-99140187
...
14
Grille Assembly (Includes Key No. 13) BRO-97009649
...
15
Light Lens BRO-76079-00
...
15
Light Lens BRO-7607900
...
16
Thermal Protector - Light BRO-02189-01
...
16
Thermal Protector - Light BRO-0218901
...
17
Thermal Protector - Motor BRO-02189-00
...
17
Thermal Protector - Motor BRO-0218900
...
18
Screw, 8 Hex Washer Captive Hd. BRO-0310032
...
18
Screw, 8 Hex Washer Captive Hd. BRO-03100-32
...
19
Nut, Keps BRO-0420014
...
19
Nut, Keps BRO-04200-14

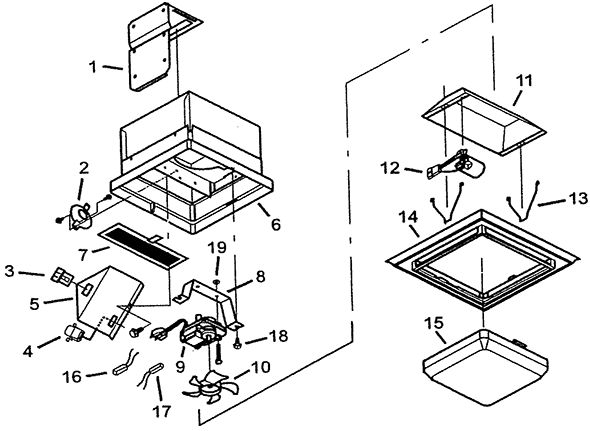

Schematic Image Zoomed
