Nutone 660 Ceiling Heater

Model: 660

Save Part Not Listed?
product name

Nutone 660

...
...
1
Mounting Bracket-4 Required BRO-53693000
...
1
Mounting Bracket-4 Required BRO-53693-000
...
2
Hanger Rod Set BRO-1171A-000
...
2
Hanger Rod Set BRO-1171A000
...
3
Access Plate BRO-57119-000
...
3
Access Plate BRO-57119000
...
4
Plug Receptacle -Black BRO-66204000
...
4
Plug Receptacle -Black BRO-66204-000
...
5
Plug Receptacle -White BRO-18105-000
...
5
Plug Receptacle -White BRO-18105000
...
6
Heat Box Assembly BRO-53698-000
...
6
Heat Box Assembly BRO-53698000
...
7
Fan Blade 7/32 Dia. Hub BRO-6915A-000
...
7
Fan Blade 3/16 Dia. Hub BRO-17728-000
...
7
Fan Blade 3/16 Dia. Hub BRO-17728000
...
7
Fan Blade 7/32 Dia. Hub BRO-6915A000
...
8
Heat Motor BRO-1166A000
...
8
Heat Motor BRO-1166A-000
...
9
Plug Assembly-White BRO-54157000
...
9
Plug Assembly-White BRO-54157-000
...
10
Thermal Fuse Link BRO-53702000
...
10
Thermal Fuse Link BRO-53702-000
...
11
Insulator Bushing Set- 2 Req'D BRO-69314000
...
11
Insulator Bushing Set- 2 Req'D BRO-69314-000
...
12
Element Support- 6 Req'D BRO-27546000
...
12
Element Support- 6 Req'D BRO-27546-000
...
13
Heat Element BRO-58120000
...
13
Heat Element BRO-58120-000
...
14
Motor Plate BRO-53705000
...
14
Motor Plate BRO-53705-000
...
15
Grille BRO-53714-000
...
15
Grille BRO-53714000
...
16
Grille Screw BRO-52844-015
...
16
Grille Screw BRO-52844015
...
17
Reflector Current Prod. BRO-56685-014
...
17
Reflector Early Prod. BRO-63685000
...
17
Reflector Current Prod. BRO-56685014
...
17
Reflector Early Prod. BRO-63685-000
...
18
Lampsocket BRO-53717-000
...
18
Lampsocket BRO-53717000
...
19
Lens BRO-53740-000
...
19
Lens BRO-53740000

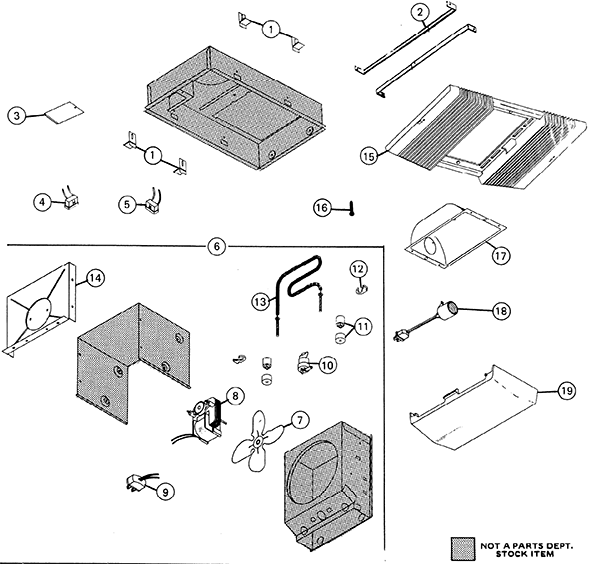

Schematic Image Zoomed
