Nutone 64000 Range Hood

Model: 64000

Save Part Not Listed?

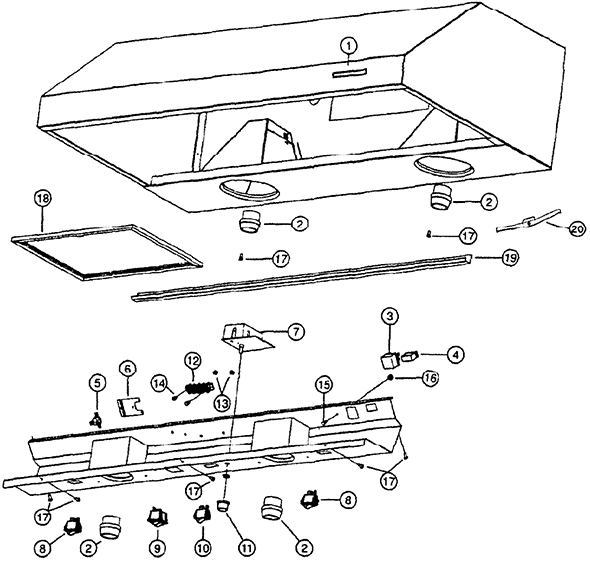

product name

Nutone 64000

...
...
xx
10' Rangemaster Cords For Heat Lamp BRO-V03518
...
xx
Halogen Lamp BRO-V02544
...
xx
Heat Lamp BRO-V03598
...
xx
In Tallation Guide BRO-V03515
...
xx
Parts Bag ((4) Lock Nut 10-32, (1) Wire Clamp Lp16-Ap, (8) Double Thread Screw 6-12X0.5, (2) Wire Connectors 748, (6) 8X3/8" Screws, (2) 6X1/2" Screws) BRO-V13278
...
xx
Rangemaster 10" Lighted Switch Wire BRO-V03520
...
xx
Rangemaster 10" Control Wire BRO-V03519
...
xx
Rangemaster 10" Power Cords BRO-V03517
...
1
'Rangemaster'' Logo BRO-V03493
...
2
Lamp Socket BRO-V02264
...
3
Male Connector BRO-V02773
...
4
Female Connector BRO-V02772
...
5
Thermal Cutoff 206 Degrees F BRO-V03435
...
6
Support For Thermal Cutoff BRO-V03436
...
7
Rangemaster Speed Controller BRO-V03501
...
8
Spst Carling Single Switch BRO-V03507
...
9
Spst Carling Double Switch BRO-V03502
...
10
Spst Carling Lighted Single Switch BRO-V03503
...
11
Rangemaster Speed Control Button BRO-V03504
...
12
Rangemaster Terminal Strip BRO-V03505
...
13
Lock Nut 8-32 BRO-V00673
...
14
Screw 8-32 X 1/2" Qdrx BRO-V02512
...
15
Machine Screw 8-32 X 1/4'' BRO-V01869
...
16
Lock Nut 6-32 BRO-V01582
...
17
Screw 8-3/8" T/B 8 Head BRO-V00606
...
18
Rangemaster/Ffiilltteerr 8,930 X 9,800 BRO-V03509
...
18
Rangemaster Filter 11,930 X 9,800 BRO-V03510
...
19
Grease Collection Channel 30" BRO-V13216
...
19
Grease Collection Channel 48" BRO-V13219
...
19
Grease Collection Channel 42" BRO-V13218
...
19
Grease Collection Channel 36" BRO-V13217
...
20
Filter Clip BRO-V03686

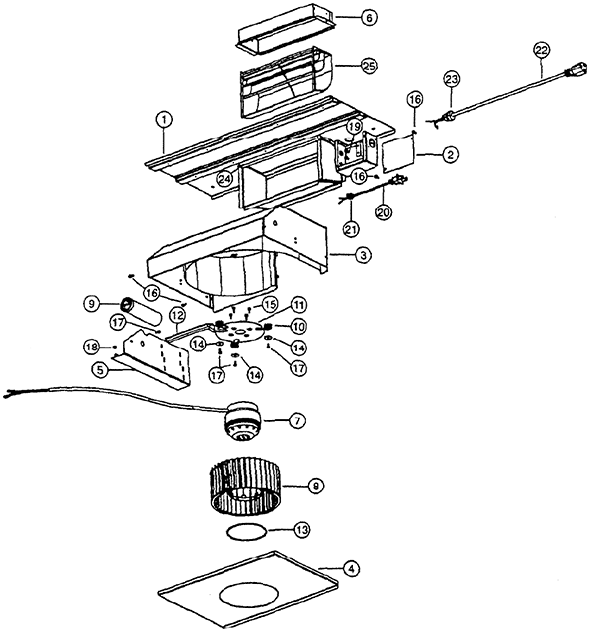

Nutone 64000

...
...
xx
8" Tie Rap BRO-V01831
...
xx
Wire 18 Tew Brown X 10' BRO-V11614
...
1
Rough-In Plate BRO-V12997
...
2
Outlet Box Cover BRO-V13230
...
3
Blower Chassis BRO-V13233
...
4
Blower Cover BRO-V13235
...
5
Capacitor Cover BRO-V13240
...
6
Adapter & Damper BRO-V13296
...
7
Motor 165W Cw BRO-V01766
...
8
Blower Impeller 7.094" X 3.375"Cw BRO-V03400
...
9
Capacitator 15 Mfd BRO-V02160
...
10
Motor Grommet G-431-1 BRO-V02001
...
11
Motor Mount BRO-V11705
...
12
Wire Loom BRO-V01857
...
13
Impeller Ring BRO-V01810
...
14
Washer 3/16"Di X 3/4"De BRO-V00871
...
15
Metric Screw M4 X 6Mm Pan Qdrx BRO-V01927
...
16
Screw 8 X 3/8", T/S, 8 Head BRO-V00606
...
17
Machine Screw 6-32 X 1/4" BRO-V01869
...
18
Lock Nut 6-32 BRO-V01582
...
19
Screw 10-32 X 3/8, T/E, Green BRO-V00613
...
20
36" Blower Power Cord BRO-V03494
...
21
Strain Relief For Blower Power Cord BRO-V03495
...
22
Power Cord, 120 Volts BRO-V03496
...
23
Strain Relief For Power Cord BRO-V00660
...
24
Foam 1/2" X 1/2" X 10" BRO-V03577
...
25
Air Deflector BRO-V03500

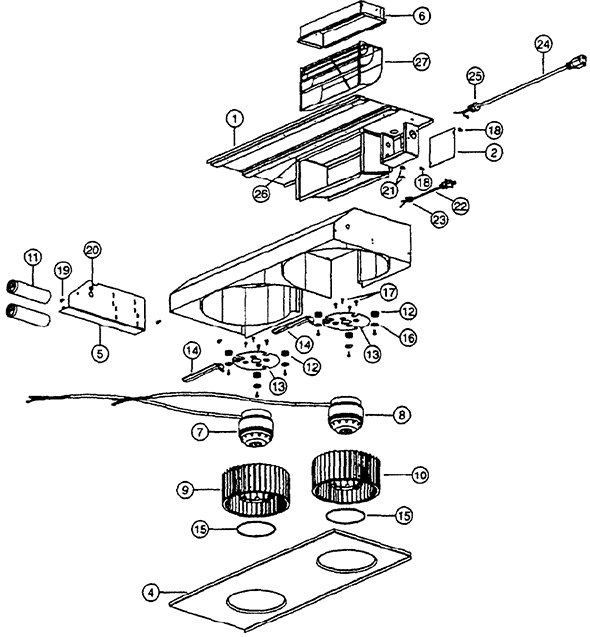

Nutone 64000

...
...
xx
Wire 18 Tew Brown X 10'' BRO-V11614
...
xx
8" Tie Rap BRO-V01831
...
1
Rough-In Plate BRO-V12997
...
2
Electric Box Cover BRO-V13230
...
3
Blower Chassis BRO-V13234
...
4
Blower Cover BRO-V13236
...
5
Capacitor Cover BRO-V13240
...
6
Adapter & Damper BRO-V13296
...
7
Motor 165W Cw BRO-V01766
...
8
Motor 165W Ccw BRO-V03457
...
9
Blower Impeller, Hood 7.094" X 3.375"Cw BRO-V03400
...
10
Blower Impeller, Hood 7.094" X 3.375"Ccw BRO-V03399
...
11
Capacitor 15 Mfd BRO-V02160
...
12
Motor Grommet G-431-1 BRO-V02001
...
13
Motor Mount BRO-V11705
...
14
Wire Cover BRO-V01857
...
15
Impeller Ring BRO-V01810
...
16
Washer 3/16"Di X 3/4'De BRO-V00871
...
17
Metric Screw M4 X 6Mm Pan Odrx BRO-V01927
...
18
Screw 8 X 3/8", T/B, 8 Head BRO-V00606
...
19
Machine Screw 6-32 X 1/4" BRO-V01869
...
20
Lock Nut 6-32 BRO-V01582
...
21
Screw 10-32 X 36'', T/F, Green BRO-V00613
...
22
36'' Blower Power Cord BRO-V03494
...
23
Strain Relief For Blower Power Cord BRO-V03495
...
24
Power Cord, 120 Volts BRO-V03496
...
25
Strain Relief For Power Cord BRO-V00660
...
26
Foam 1/2" X 1/2" X 10" BRO-V03577
...
27
Air Deflector BRO-V03500
