Nutone 606SSW Exhaust Fan

Model: 606SSW

Save Part Not Listed?
product name

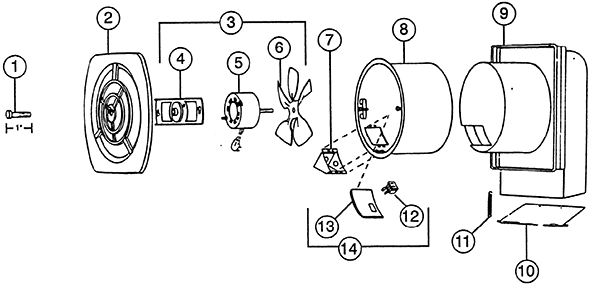

Nutone 606SSW

...
...
xx
Switch (Not Shown) BRO-11471000
...
xx
Switch (Not Shown) BRO-11471-000
...
1
Grille Screw (1-Inch) BRO-11244001
...
1
Grille Screw (1-Inch) BRO-11244-001
...
2
Grille BRO-11751-018
...
2
Grille BRO-11751018
...
3
"B" Unit BRO-69027-000
...
3
"B" Unit BRO-69027000
...
4
Motor Bracket BRO-11829-000
...
4
Motor Bracket BRO-11829000
...
5
Motor -1/4" Shaft No. On Data Plate 8253210100, Ja26024, Al4125A BRO-26750SER
...
5
Motor -1/4" Shaft No. On Data Plate 8253210100, Ja26024, Al4125A BRO-26750-SER
...
6
Fan Blade Assembly BRO-11805000
...
6
Fan Blade Assembly BRO-11805-000
...
7
Outlet Box BRO-10473000
...
7
Outlet Box BRO-10473-000
...
8
Inside Sleeve Assembly BRO-12046-005
...
8
Inside Sleeve Assembly BRO-12046005
...
11
Louver Spring BRO-12492000
...
11
Louver Spring BRO-12492-000
...
12
Plug Receptacle BRO-10034000
...
12
Plug Receptacle BRO-10034-000
...
13
Outlet Box Cover BRO-10247000
...
13
Outlet Box Cover BRO-10247-000
