Nutone 605N Ceiling Heater

Model: 605N

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Nutone 605N

...
...
1
Mounting Bracket (1)-4 Required BRO-53693000
...
1
Mounting Bracket (1)-4 Required BRO-53693-000
...
2
Access Cover BRO-57119-000
...
2
Access Cover BRO-57119000
...
3
Hanger Rod BRO-1171A-000
...
3
Hanger Rod BRO-1171A000
...
4
Duct Adaptor Assembly BRO-53697000
...
4
Duct Adaptor Assembly BRO-53697-000
...
5
Heat Box Assembly BRO-53698-000
...
5
Heat Box Assembly BRO-53698000
...
6
Fan Blade 7/32 Dia. Hub BRO-6915A-000
...
6
Fan Blade 7/32 Dia. Hub BRO-6915A000
...
7
Heat Motor W/Fan Blade BRO-1166A-000
...
7
Heat Motor W/Fan Blade BRO-1166A000
...
8
Plug Assembly BRO-54157-000
...
8
Plug Assembly BRO-54157000
...
9
Motor Plate BRO-53705000
...
9
Motor Plate BRO-53705-000
...
10
Thermal Fuse Link BRO-53702000
...
10
Thermal Fuse Link BRO-53702-000
...
11
Insulator Bushing Set (11-2 Required BRO-69314-000
...
11
Insulator Bushing Set (11-2 Required BRO-69314000
...
12
Element Support (1)-6 Required BRO-27546-000
...
12
Element Support (1)-6 Required BRO-27546000
...
13
Heat Element BRO-58120-000
...
13
Heat Element BRO-58120000
...
14
Vent (B" Unit Assembly) BRO-K4237-000
...
14
Vent (B" Unit Assembly) BRO-K4237000
...
15
Motor Mount BRO-K4239-000
...
15
Motor Mount BRO-K4239000
...
16
Motor-Vent BRO-53709-000
...
16
Motor-Vent BRO-53709000
...
17
Blower Wheel W/Clip BRO-K3035-000
...
17
Blower Wheel W/Clip BRO-K3035000
...
18
Plug Receptacle Black BRO-66204000
...
18
Plug Receptacle Black BRO-66204-000
...
18
Plug Receptacle White BRO-56721000
...
18
Plug Receptacle White BRO-56721-000
...
19
Grille BRO-53714-000
...
19
Grille BRO-53714000
...
20
Strap BRO-53716-000
...
20
Strap BRO-53716000
...
21
Grille Screw BRO-52844-015
...
21
Grille Screw BRO-52844015
...
22
Lens BRO-K4248-000
...
22
Lens BRO-K4248000

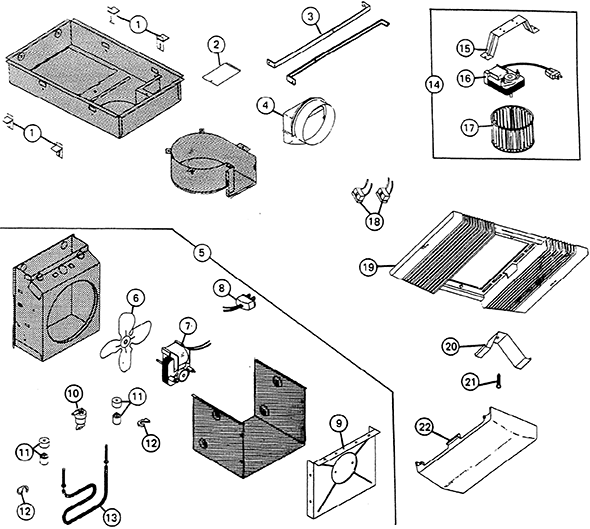

Schematic Image Zoomed
