product name

Nutone 60000 Range Hood

Model: 60000

Save Part Not Listed?
product name

Nutone 60000

...
...
xx
Filter, 9" Wide BRO-99010248
...
xx
30" Rear Liner BRO-98007902
...
xx
36" Rear Liner BRO-98007904
...
xx
42" Rear Liner BRO-98007906
...
xx
48" Rear Liner BRO-98007908
...
xx
54" Rear Liner BRO-98007910
...
xx
60" Rear Liner BRO-98007912
...
xx
66" Rear Liner BRO-98007914
...
xx
72" Rear Liner BRO-98007916
...
xx
Filter, 12" Wide BRO-99010249
...
xx
Filter, 15" Wide BRO-99010250
...
xx
Filter, 18" Wide BRO-99010251
...
xx
Parts Bag (Contains (4) 10-16 X 11/2 Slotted Pan Hd. Screws) BRO-97007475
...
xx
Wire Harness BRO-99270978
...
xx
Wire Assembly, 11" White BRO-97014166
...
xx
Wire Assembly, 9" Black BRO-97010591
...
1
Nameplate BRO-99090857
...
2
Lamp Socket F/ Halogen BRO-99270976
...
3
Lamp Socket F/ Warming BRO-97014167
...
4
Male Plug BRO-99270979
...
5
Female Receptacle BRO-97014164
...
6
Screw, 6-32 X 5/8 Machine BRO-99160377
...
7
Thermostat BRO-99030138
...
8
Ground Clip BRO-99390015
...
9
Terminal Block BRO-97014165
...
10
Speed Control BRO-97010758
...
11
Nut, Speed Control BRO-99260491
...
12
Knob, Speed Control BRO-99360118
...
13
Switch, Heat Lamp BRO-99030171
...
14
Switch, Light BRO-99030227
...
15
Switch, Illuminated, Fan BRO-99030229
...
16
Side Seal BRO-99110885
...
17
Side Liner, Left BRO-98007918
...
18
Side Liner, Right BRO-98007917
...
19
Screw, 8-18 X 3/8 BRO-99150478
...
20
Rear Seal BRO-99110884
...
22
Nut, 6-32 X 5/16 BRO-99260428

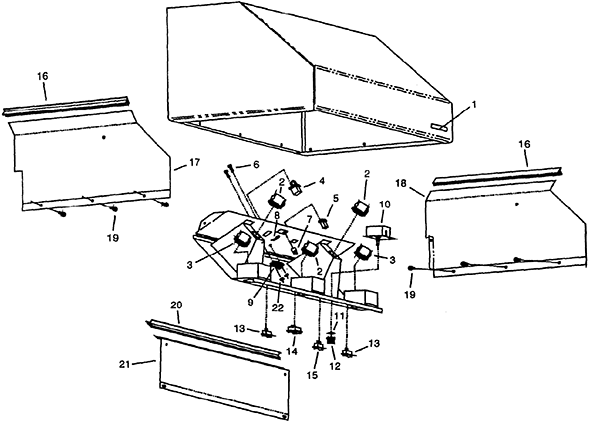

Schematic Image Zoomed
