Nutone 336 Range Hood

Model: 336

Save Part Not Listed?
product name

Nutone 336

...
...
1
Cover BRO-98009538
...
2
Foam Seal BRO-99100531
...
3
Motor Support BRO-98009539
...
4
Damper Flap (2 Req.) BRO-98009541
...
5
Damper Spring (2 Req.) BRO-99140145
...
6
Grille BRO-98009537
...
7
Blower Assembly BRO-99080479
...
8
Spacer Ring BRO-99710037
...
9
Capacitor BRO-99271203
...
10
Wire Assembly BRO-99271221
...
11
Terminal Boot BRO-99100530
...
12
Capacitor Clamp BRO-99390136
...
13
Bushing BRO-99400079
...
14
Screw, 8-18 X 3/8 Ph Tr Hd (12 Req.) BRO-99150478
...
15
Screw, M6 X 1-16 (4 Req.) BRO-99170269
...
16
Washer, Lock, Int. Tooth, 1/4 (5 Req.) BRO-99250958
...
17
Screw, 12-24 X .312 Slt Hwh 2 BRO-99150506
...
18
Cord Clamp BRO-99270461
...
19
Nut, Whiz, 1/4-20 (9 Req.) BRO-99260477
...
20
Ground Screw, 10-32 X 1/2 Slt Hx Hd (2 Req.) BRO-99150471
...
21
Screw, 1/4 -20 X1/2 Ph Pan Hd (9 Req.) BRO-99160411

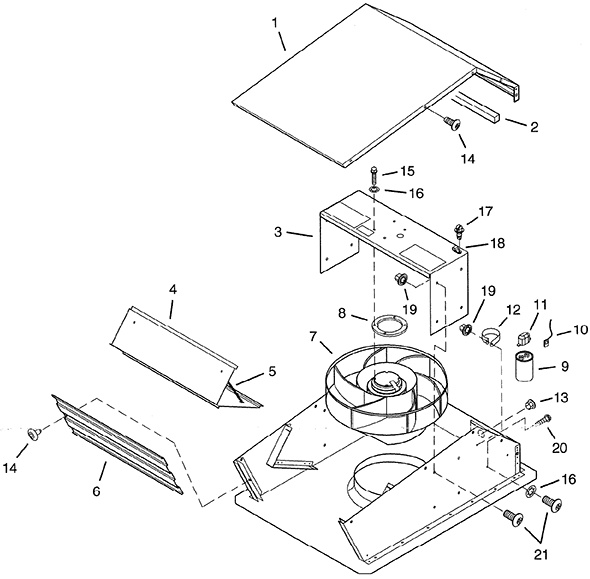

Schematic Image Zoomed
