product name

Nutone 329 Range Hood

Model: 329

Save Part Not Listed?
product name

Nutone 329

...
...
xx
Tray Assembly, Complete (Includes Key Nos. 7 Thru 17) 9BRO-7005283
...
1
Rough-In Plate BRO-97013418
...
2
Hanger Strap (2 Req.) BRO-97002303
...
3
Nut, Hanger Strap (4 Req.) BRO-99260421
...
4
Housing Assembly BRO-97002309
...
5
Aluminum Filter (2 Req.) BRO-99010103
...
6
Light Lens (2 Req.) BRO-99050014
...
10
Switch Bracket BRO-98003355
...
10
Nameplate BRO-99090632
...
11
Light Socket (2 Req.) BRO-99270423
...
12
Light Switch BRO-99030296
...
13
Fan Switch BRO-97013416
...
14
Heat Sentry Thermostat BRO-97006616
...
16
Knob (2 Req.) BRO-99360119
...
17
Cord 9BRO-9770015

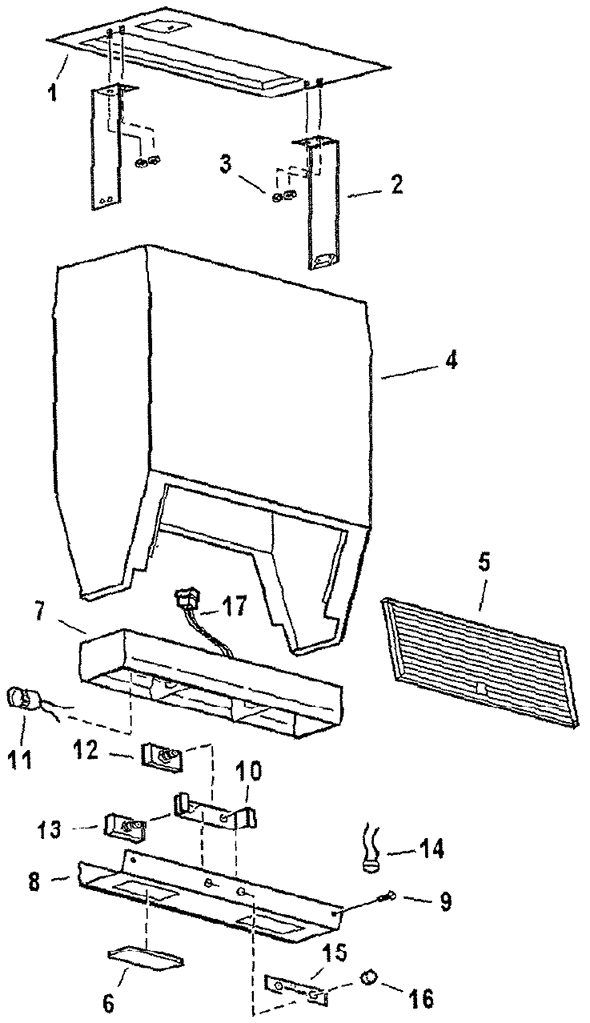

Schematic Image Zoomed
