Nutone 3260 Range Hood

Model: 3260

Save Part Not Listed?
product name

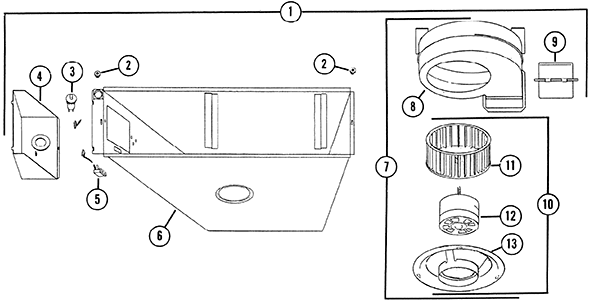

Nutone 3260

...
...
xx
Envelope Assembly (Not Shown) BRO-16267
...
1
"A" Unit Assembly. Ref. No' S. 2 Thru 7 BRO-18260
...
2
Mounting Nut (2 Required) BRO-18267
...
3
Pushswitch BRO-18269
...
4
Outlet Box Assembly BRO-18271
...
5
Receptacle Assembly BRO-17487
...
6
Housing Assembly BRO-18261
...
7
"B" Unit Assembly. Ref. No' S. 8 Thru 10 BRO-16274
...
8
Blower Housing Assembly BRO-16276
...
9
Damper Assembly BRO-69151
...
10
Power Unit Assembly BRO-16287
...
11
Blower Wheel BRO-16296
...
12
Motor 1/4" Shaft. No.On Data Plate Ak4138A Or Aa2C032F BRO-26742
...
13
Motor Bracket BRO-16286
Schematic Image Zoomed
