product name

Nutone 326 Range Hood

Model: 326

Save Part Not Listed?
product name

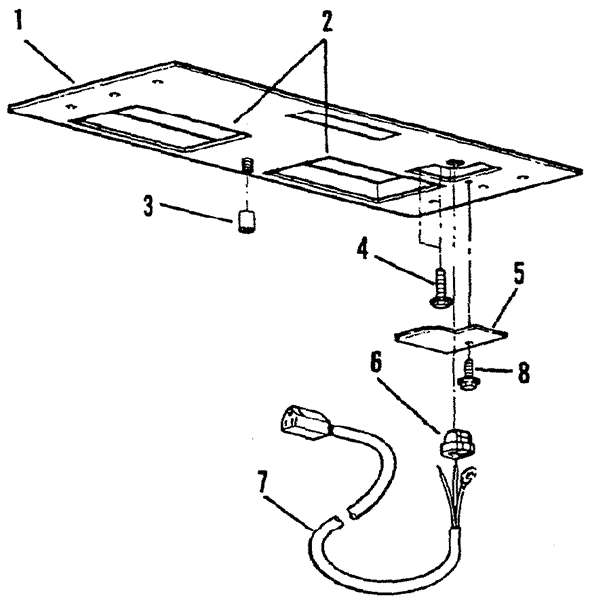

Nutone 326

...
...
xx
Parts Bag (Contains (6) 10-16 X 11/2 Slotted Pan Hd. Machine - Screws) BRO-97002302
...
1
Rough-In Plate Weldment BRO-97014160
...
2
Polyfoam BRO-99100387
...
3
Barrel Nut BRO-99380605
...
4
Screw, 10-32 X 1/2 Hex Washer Hd BRO-99150471
...
5
Outlet Box Cover BRO-98003370
...
6
Strain Relief BRO-99100382
...
7
Power Cord BRO-99440033
...
8
Screw, 8-18 X 3/ 8' BRO-99170245

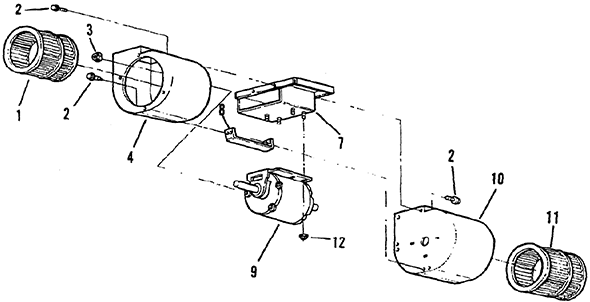

Nutone 326

...
...
1
Blower Wheel, Clockwise BRO-97014247
...
2
Screw, 8-18 X 3/8' BRO-99170245
...
4
Scroll, Left BRO-97002321
...
7
Motor Mount BRO-97002322
...
8
Scroll Brace BRO-98003366
...
9
Motor BRO-97011215
...
10
Scroll, Flight BRO-97002320
...
11
Blower Wheel. Counterclockwise BRO-99020121
...
12
Nut, 1/4-20 Flanged Hex BRO-99260477
