product name

Nutone 3061 Range Hood

Model: 3061

Save Part Not Listed?
product name

Nutone 3061

...
...
1
Plug BRO-69146000
...
2
Inspection Cover BRO-17490005
...
3
Lamp Socket (1) 2-Required BRO-14979000
...
4
Housing Assy. BRO-69177005
...
5
Lens (1) 2-Required Glass BRO-17628000
...
6
Receptical BRO-10034000
...
7
Light Switch BRO-17482000
...
8
Housing Front BRO-17479005
...
9
Speed Control BRO-19325000
...
10
Knob Set (1-Fan, 1-Light) BRO-63912000
...
11
Deflector BRO-17606005
...
12
"B" Unit (Motor, Blade, Belt & Ring) BRO-17636000
...
13
Fan Blade BRO-14400000
...
14
Motor 5/16" Shaft BRO-26735000
...
15
Locking Plate BRO-14389000
...
16
Motor Bracket BRO-17639000
...
17
Filter Comp. W/Frame BRO-17644000
...
18
Filter Only BRO-17655000
...
19
Choke Coil Assy. BRO-21362000
...
20
Housing - Lamp (2-Required) BRO-17624000

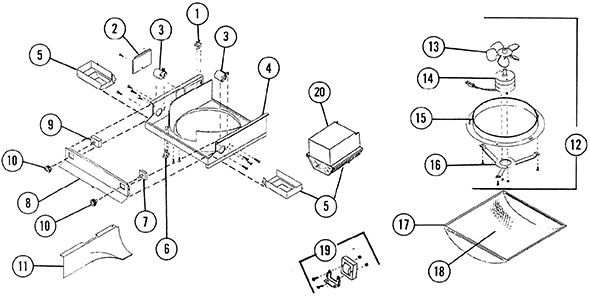

Schematic Image Zoomed
