Norcold N8DC SERIES

Model: N8DC

Save Part Not Listed?
product name

Norcold N8DC

...
...

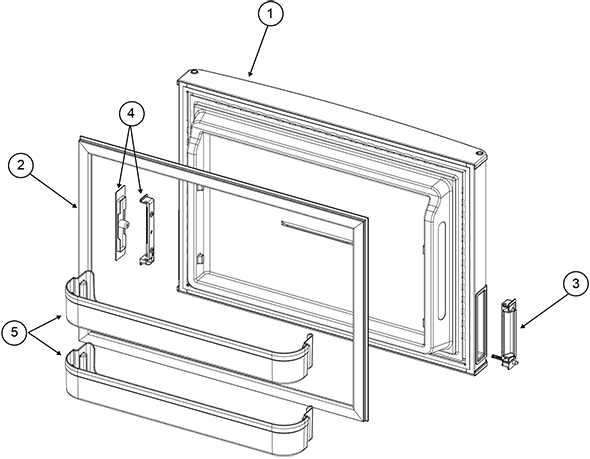

1
Freezer Door Assembly W/Gasket Stainless NRC-640153
...
1
Freezer Door Assembly W/Gasket Blk Stainless (Sn Se183Wdw00150 And Below) NRC-640197
...
1
Freezer Door Assembly W/Gasket Blk Stainless (Sn Se183Wdw00151 And Above) NRC-640349
...
1
Kit Service 10' Black Doors (Replacement For Blkss) NRC-641018
...
1
Kit Service 8' Black Doors (Replacement For Blkss) NRC-641019
...
1
Freezer Door Assembly W/Gasket Black NRC-641016
...
2
Freezer Door Gasket NRC-640152
...
3
Handle Assembly Ur/Ll W/(2) M4 X 16 Screws NRC-640156
...
3
Handle Assembly Ul/Lr W/(2) M4 X 16 Screws NRC-640160
...
4
Handle Cover And Bracket W/(2) M4 X 16 Screws NRC-640154
...
5
Door Bin NRC-640155

Norcold N8DC

...
...
NS
Bottle Retainer NRC-640161
...

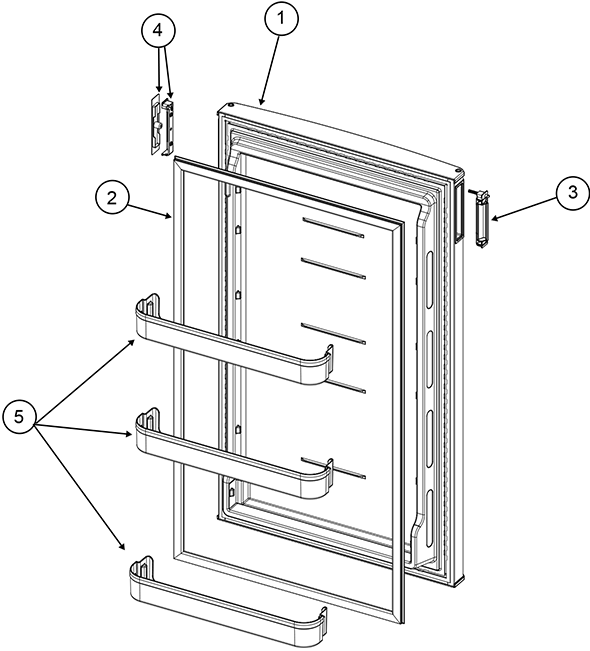

1
Door Assembly W/Gasket Stainless NRC-640158
...
1
Door Assembly W/Gasket Blk Stainless (Sn Se183Wdw00150 And Below) NRC-640198
...
1
Door Assembly W/Gasket Blk Stainless (Sn Se183Wdw00151 And Above) NRC-640350
...
1
Door Assembly W/ Gasket Stainless NRC-640467
...
1
Door Assembly W/Gasket Blk Stainless NRC-640468
...
1
Kit Service 10' Black Doors (Replacement For Blk Ss) NRC-641018
...
1
Kit Service 8' Black Doors (Replacement For Blk Ss) NRC-641019
...
1
Door Assembly W/Gasket Black NRC-641015
...
1
Door Assembly W/Gasket Black NRC-641017
...
2
Fresh Food Gasket NRC-640157
...
2
Fresh Food Gasket NRC-640466
...
3
Handle Assembly Ul/Lr W/(2) M4 X 16 Screws NRC-640160
...
3
Handle Assembly Ur/Ll W/(2) M4 X 16 Screws NRC-640156
...
4
Handle Cover And Bracket W/(2) M4 X 16 Screws NRC-640159
...
5
Door Bin NRC-640155

Norcold N8DC

...
...
NS
Center Hinge And (2) M5 X 20 Screws NRC-640208
...
NS
Shelf Mounting Clip-Split Shelf NRC-640473
...
NS
Interior Fan (Use 640093) NRC-640179
...
NS
Kit Service Evaporator (Inner) Fan Replacement NRC-640093
...
NS
Mounting Screw And Grommet Cap, 2 Pc, White NRC-62362208
...
NS
Mounting Screws And Caps, 4 Pc Each, White NRC-691590
...
NS
Mounting Screws And Caps, 8 Pc Each, White NRC-691869
...
NS
Kit Control Panel And Board (Sn Se079Wdw00189N And Below) NRC-640338
...

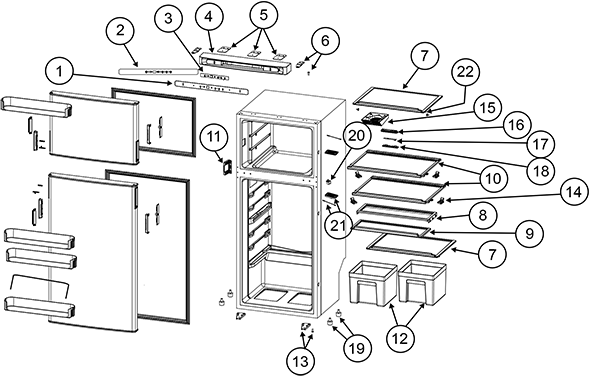

1
Kit Service Control Panel Replacement (Sn Se079Wdw00190 And Above) And (Sn Se79Wdw00189N And Below Use 640338) NRC-640087
...
1
Control Panel Label(Use 640087) NRC-640163
...
2
Kit Service Control Panel Label Replacement(Sn Se079Wdw00190 And Above) And (Sn Se079Wdw00189N And Below Use 640338) NRC-640085
...
2
Control Panel Label(Use 640085) NRC-640162
...
3
Kit User Interface Control Board Replacement(Sn Se079Wdw00190 And Above) And (Sn Se79Wdw00189N And Below Use 640338) NRC-640089
...
3
User Interface Control Board (Use 640089) NRC-640164
...
4
Top Vent (Control Housing) (Use 640091) NRC-640165
...
4
Kit Service Control Housing Replacement NRC-640091
...
5
(3) Control Housing Bracket (6) Screws NRC-640166
...
6
Upper Hinge, (3) M5X20 Screws,Hinge Pin NRC-640167
...
7
Freezer / Crisper Shelf NRC-640168
...
7
Freezer / Crisper Shelf NRC-640469
...
8
Slide Out Shelf-Rear NRC-640474
...
8
Slide Out Shelf-Rear NRC-640174
...
9
Slide Out Shelf Front NRC-640175
...
9
Slide Out Shelf Front NRC-640475
...
10
Cabinet Shelf NRC-640172
...
10
Cabinet Shelf NRC-640471
...
11
Latch Plate And (3) M4 X 16 Screws NRC-640151
...
12
Crisper Bin NRC-640176
...
13
Bottom Hinge, (3) M5 X 16 Screws And Hinge Pin NRC-640177
...
14
(6) Shelf Stopper And (6) Screws NRC-640472
...
14
(4) Shelf Stopper And (4) Screws NRC-640173
...
15
Fan Housing (Use 640095) NRC-640180
...
15
Kit Service Evaporator (Inner) Fan Housing Replacement) NRC-640095
...
16
Interior Light Housing (Use 640097) NRC-640169
...
16
Kit Service Light Box Replacement NRC-640097
...
17
Interior Light (Use 640099) NRC-640170
...
17
Kit Service Light Panel Replacement NRC-640099
...
18
Light Cover (Use 640101) NRC-640171
...
18
Kit Service Light Cover Replacement NRC-640101
...
19
Cabinet Foot NRC-640139
...
20
Door Light Switch NRC-640150
...
21
Thermistor And Cover NRC-640149
...
22
(4) Screw Cap And (4) Screws NRC-641026

Norcold N8DC

...
...
NS
Diverter Valve Wire Harness NRC-640147
...
NS
Power Cord NRC-640145
...
NS
Wire Cover NRC-640477
...
NS
Wire Cover NRC-640144
...
NS
15 Amp Fuse NRC-624518
...
NS
External Wire Harness NRC-640148
...

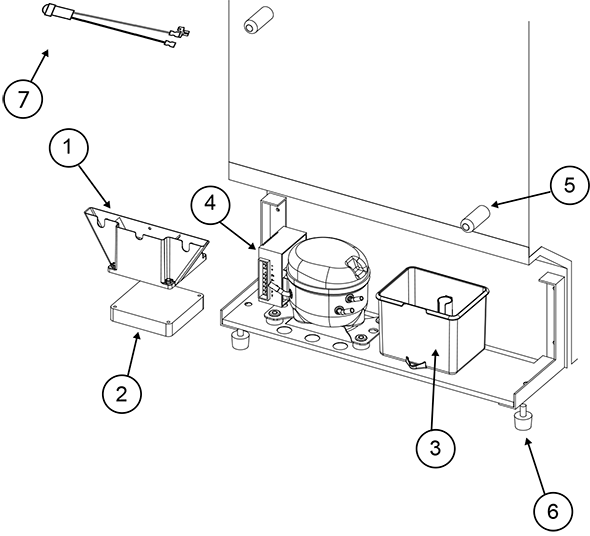

1
Kit Service Condenser Fan Covre Replacement NRC-640105
...
1
Condenser Fan Cover (Use 640105) NRC-640143
...
2
Kit Service Condenser Fan Replacement NRC-640103
...
2
Exterior Fan(Use 640103) NRC-640142
...
3
Rear Drip Cup NRC-640141
...
4
Compressor Power Module NRC-640178
...
5
Back Stop NRC-640146
...
6
Rear Foot NRC-640140
...
7
Dc Cpm Troubleshooting Led NRC-641315
