Norcold N7 POLAR SERIES

Model: N7

Save Part Not Listed?
product name

Norcold N7

...
...
1
Panel Retainer-Fzr NRC-638536
...
2
Door Assy Foamed Upper Black NRC-638530
...
3
Kit-Handle Assembly Left NRC-639506
...
3
Kit Handle Assembly Right NRC-639507
...
4
Bin Door Shelf/Clear (1 Per Door) NRC-624864
...
4
Bin-Door Shelf/White (1 Per Door) NRC-624863
...
5
Divider Door Bin/Clear (1Per Door Shelf Bin) NRC-619008
...
6
Kit Cover, Pocket NRC-639510

Norcold N7

...
...
NS
Kit Panel Adapter NRC-639406
...
1
Panel Retainer -7Ft Ff NRC-638537
...
1
Panel Retainer - 8Ft Ff NRC-638538
...
2
Door Assy Foamed Lower 7-Black NRC-638532
...
2
Door Assy Foamed Lower 8-Black NRC-638534
...
3
Kit Handle Assembly Left NRC-639506
...
3
Kit Handle Assembly Right NRC-639507
...
4
Bin-Door Shelf/Clear NRC-624864
...
4
Bin-Door Shelf/White NRC-624863
...
5
Wire-Bin/Sdl NRC-624866
...
6
Divider Door Bin/Clear (1 Per Door Shelf) NRC-619008

Norcold N7

...
...
xxx
Trim Piece Foam Tape Assy- Metal Side/8'/Black (2 Per Cabinet) (Sn Nro1Skb And Above) NRC-640455
...
NS
Switch Rocker NRC-639977
...
NS
Kit Service Blower Assy Replacement NRC-639983
...
1
Kit Hinges NRC-639508
...
2
Trim Piece Foam Tape Assy- Side/7'/Black (2 Per Cabinet) (Sn Nr01Uap And Below) NRC-639369
...
2
Trim Piece Foam Tape Assy- Metal Side/7'/Black (2 Per Cabinet) (Sn Nr01Uap And Above) NRC-640454
...
2
Trim Piece Foam Tape Assy- Side/8'/Black (2 Per Cabinet) (Sn Nro1Skb And Below) NRC-639370
...
3
Ice Cube Tray - (2 Per Cabinet) NRC-61630422
...
4
Shelf Wire Freezer NRC-638480
...
5
Kit Service Control Assy NRC-639509
...
5
Kit Service Control Assy NRC-639550
...
5
Kit Service Control Assy NRC-639551
...
6
Control Housing NRC-639554
...
7
Shelf, Wire Short NRC-638484
...
8
Shelf Wire-Full NRC-638481
...
8
Shelf Wire Full NRC-638485
...
9
Shelf Wire Cut Out NRC-638482
...
9
Shelf Wire Cut Out NRC-638483
...
10
Tray Shelf/White/Cut Out NRC-617756
...
11
Crisper Cover Glass Shelf NRC-618158
...
12
Crisper -White/ Full NRC-618571
...
13
Bin Ice Crisper/Clear (2 Per Model) (3 Per Im Model) NRC-619007
...
14
Clamp 3/8" (1 Per Shelf) NRC-623121
...
15
Cover, Hinge Hole, Center Divider NRC-639034
...
16
Strike Plate NRC-638545
...
17
Kit Trim Piece Set-Top/ Bottom/Black (Sn 29460084 And Below ) Use 640862 NRC-639442
...
17
Kit Top/Bottom Trim Black- (Sn 29460084 And Below) NRC-640862
...
17
Kit Trim Piece Set-Top/ Bottom/Black (Sn 29460085 And Above) NRC-640027
...
18
Led Assy NRC-638797
...
19
Kit Thermister (Use 638391) NRC-639700
...
19
Kit Thermister NRC-638391
...
20
Kit Hinge Covers W/Foam Tape (Sn 29460085 And Above) NRC-640028
...
21
Kit Top Bracket, Hinge Covers W/Foam Tape (Sn 29460085 And Above) NRC-640029
...
22
Kit Service Hinge Support NRC-640435

Norcold N7

...
...
NS
Kit Baffle/Wire Assy NRC-639596
...
NS
Kit Drain Hose Repair NRC-622857
...
NS
Heat Cap NRC-61695022
...
NS
Insulation Assy NRC-2M0803
...
NS
Kit Serv Cold Weather Heater Replacement NRC-639723
...
1
Kit Nsc System Pack Cu NRC-639569
...
1
Kit Nsc System Pack Cu NRC-639570
...
1
Kit Serv System Pack W/Cw N7 NRC-639852
...
1
Kit Serv System Pack W/Cw N8 NRC-639853
...
1
Kit Serv System Pack N7-3Way NRC-639785
...
1
Kit Serv System Pack N8-3Way NRC-639854
...
2
Kit-Fins NRC-639574
...
3
Kit- Heater -Ac/Backer NRC-638374
...
3
Kit-Heater -Dc/Backer NRC-638375

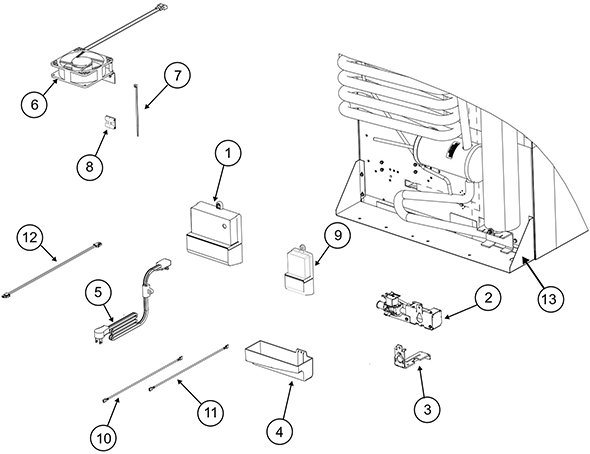

Norcold N7

...
...
NS
Kit Thermostat-Dc Fan/Thermo Disc NRC-638278
...
NS
Kit-Fan Harness NRC-639588
...
NS
Kit Serv Fan Retrofit N7/N8 NRC-639892
...
NS
Kit Wire Auxillary Ouput/Black NRC-639585
...
NS
Kit Wire Auxillary Ouput/Red NRC-639586
...
1
Kit Main Control Board Assy NRC-639593
...
2
Kit Gas Train Assy Mainline NRC-639572
...
3
Gas Train Assy Support Bracket/ Burner Door Assy NRC-639743
...
4
Kit-Drip Cup Rear/Plastic NRC-639591
...
5
Kit-Ac Power Cord NRC-639683
...
6
Kit Condenser Fan Assy NRC-639702
...
7
Cable Tie Nylon NRC-61417922
...
8
Wire Mount Adhesive NRC-618950
...
9
Kit Dc Board Assy NRC-639577
...
10
Input Wire Red NRC-638790
...
11
Input Wire Black NRC-638791
...
12
Communication Harness NRC-638792
...
13
Back Brace NRC-61586722

Norcold N7

...
...
NS
Kit- Water Tube/Heater Assy/For Ice Maker NRC-639056
...
NS
Kit-Oem Water Tube Fittings/Im NRC-639583
...
NS
Red Wire NRC-639281
...
1
Kit-Cover-Front/Ice Maker NRC-639579
...
2
Kit Service Im Replacement NRC-637582
...
3
Clamp-Tubing/Im NRC-61690822
...
4
Tube-Water Feed/Im/68" NRC-621429
...
5
Bushing-Snap NRC-61346822
...
6
Kit- Fitting-Water Tube NRC-639694
...
7
Kit-Wiring Harness-Im NRC-639086
...
8
Kit- Bracket-Mounting/Ice Maker NRC-639740
...
9
Kit Serv Water Valve Replacement (Use 640908) NRC-637140
...
9
Kit Service Im Water Valve Assy NRC-640908
...
10
Spacer-Water Valve/Nylon NRC-618169
...
11
Garden Hose Adapter-Straight/Im NRC-61679622
...
12
Nut-Compression/Water Valve Fitting/Im/Plastic NRC-622991
...
13
Nut-Compression/Water Valve Fitting/Im/Brass NRC-622846
...
14
Shut Off Arm/Im NRC-61656922
...
15
Bin-Ice/Crisper/Clear NRC-619007
...
16
Shelf, Wire, Freezer, Im NRC-639343
