product name

Norcold N4141

Model: N4141

Save Part Not Listed?

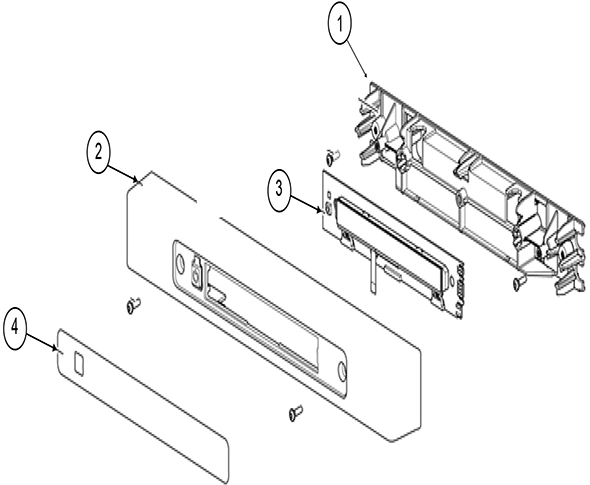

product name

Norcold N4141

...
...
1
Technical Panel Flat NRC-691102
...
1
Kit Service Control Housing Replacement NRC-639217
...
2
Housing Flat NRC-691104
...
3
Pcb Lcd Dm NRC-692246
...
4
Sticker Lcd NRC-692251

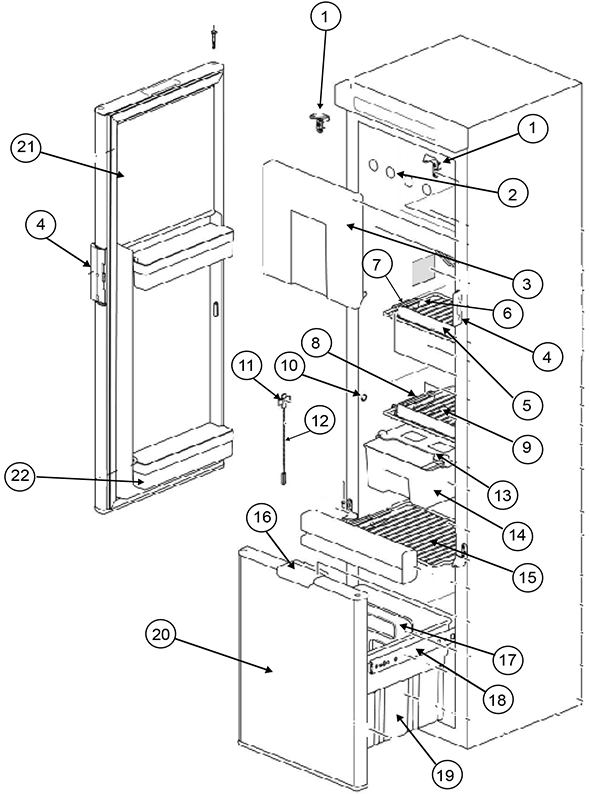

Norcold N4141

...
...
NS
Door Panel Retainer NRC-690611
...
1
Kit- Hinge Lh/Rh NRC-691456
...
2
Cap Freezer Bolt NRC-62447908
...
3
Freezer Door NRC-639186
...
3
Hinge Freezer Door (2X) (Pn 624680) NRC-639186
...
4
Kit- Door Handle NRC-691113
...
5
Shelf Food Retainer NRC-691114
...
6
Shelf NRC-691730
...
7
Shelf Clip- Small NRC-62362608
...
8
Shlef Clip- Large NRC-62362508
...
9
Shelf NRC-691731
...
10
Cap (2X) NRC-62362208
...
11
Fin Clip NRC-623059
...
12
Thermistor NRC-623077
...
13
Guiding Cover NRC-691118
...
14
Slide Out Box NRC-692253
...
15
Shelf NRC-691732
...
16
Drawer Handle NRC-691287
...
17
Drawer Divider NRC-691120
...
18
Drawer Guides NRC-691123
...
19
Drawer Bin NRC-691288
...
20
Drawer Door NRC-690521
...
21
Cabinet Door NRC-690519
...
22
Door Bin NRC-692254

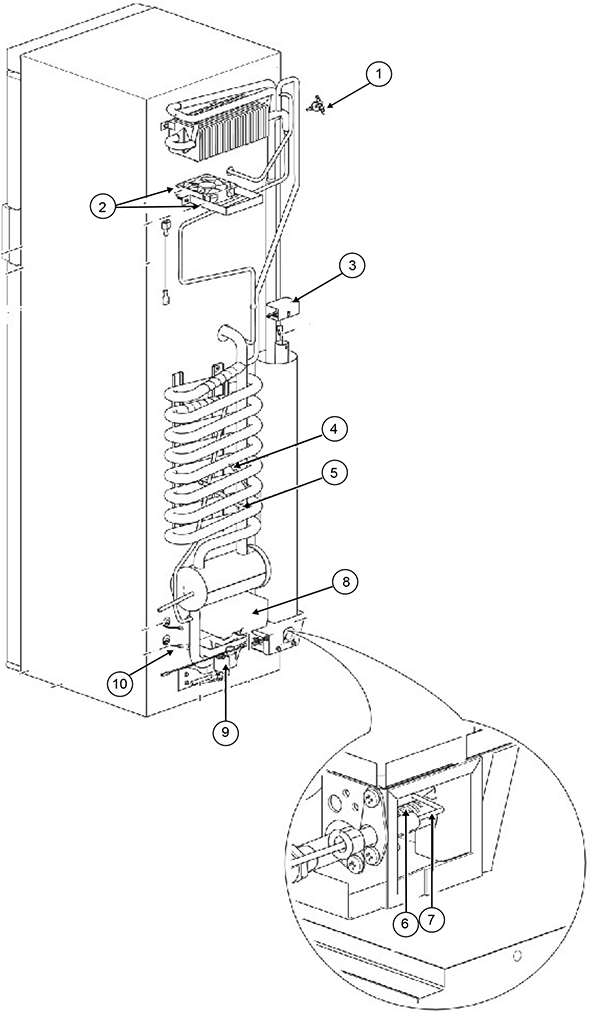

Norcold N4141

...
...
NS
Wire Harness - Solenoid Gas Valve NRC-634987
...
NS
Heat Diffuser NRC-692583
...
NS
Kit Serv Power Cord 120Vac NRC-691446
...
NS
Communication Cable NRC-636875
...
1
Thermostat Dc Fan NRC-636877
...
2
Bracket NRC-639190
...
2
Kit Serv Fan Replacement NRC-636876
...
3
Heat Cap NRC-690839
...
4
Heater Ac (Use 638215) NRC-690874
...
4
Kit Service Heater Replacement NRC-638215
...
5
Heater Dc (Use 639192) NRC-690875
...
5
Kit Service Heater Replacement NRC-639192
...
6
Burner Assembly NRC-638986
...
7
Spark Electrode NRC-636872
...
8
Power Control Board NRC-692249
...
9
Gas Valve NRC-636873
...
10
Thermistor Cable NRC-636874
Schematic Image Zoomed
