product name

Norcold N4104

Model: N4104

Save Part Not Listed?

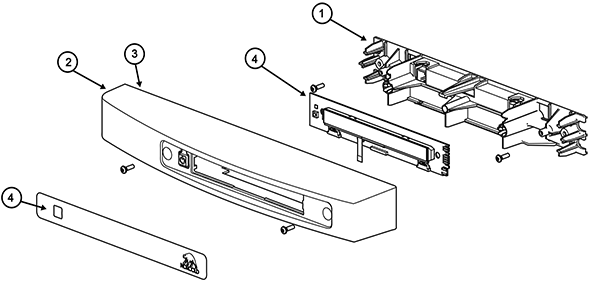

product name

Norcold N4104

...
...
1
Display Board Mounting Bracket NRC-690869
...
2
Housing-Curved Left (For Lh Hinge) NRC-69087027
...
3
Housing-Curved Right (For Rh Hinge) NRC-69087127
...
4
Pcb Lcd Dm NRC-692246
...
5
Sticker Lcd NRC-692251

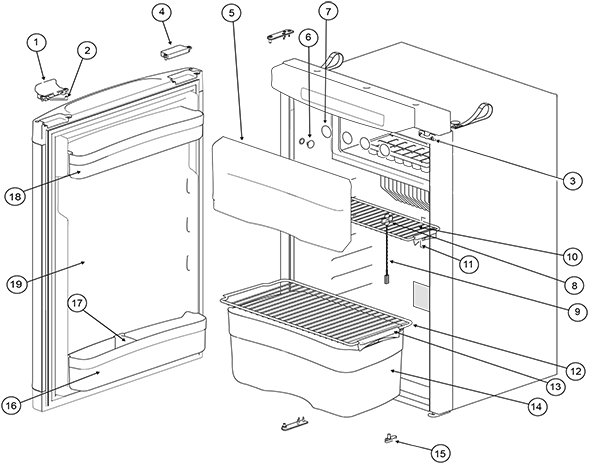

Norcold N4104

...
...
NS
Kit-Lh To Rh Door Swing (Must Also Have 692251) NRC-69021727
...
NS
Kit-Rh To Lh Door Swing (Must Also Have 692251) NRC-69021827
...
NS
Sr New Style Hinge Sng Door NRC-635010
...
NS
Sr New Style Hinge Dbl Door NRC-635011
...
1
Latch-Black NRC-69173927
...
2
Storage Strap NRC-69173927
...
3
Strike Plate-Black NRC-69173927
...
4
Pocket Cover NRC-69173927
...
5
Freezer Door NRC-690852
...
5
Hinge Freezer Door (2X) NRC-690852
...
6
Cap (Contains 2 Caps) NRC-62362208
...
7
Cap- Freezer Bolt (Contains 12 Caps) NRC-62447908
...
8
Fin Clip NRC-623059
...
9
Thermistor NRC-623077
...
10
Shelf 455 X 133 NRC-690815
...
11
Shelf Clip-Small NRC-62362608
...
12
Shelf 454 X 220 NRC-69082808
...
13
Shelf Clip-Large NRC-62362508
...
14
Vegetable Bin NRC-69082908
...
15
Latch Bottom NRC-62400127
...
16
Door Bin-Curved Wide NRC-69082408
...
17
Bottle Retainer NRC-62698912
...
18
Door Bin-Curved Shallow NRC-69082308
...
19
Lower Door NRC-690152107R

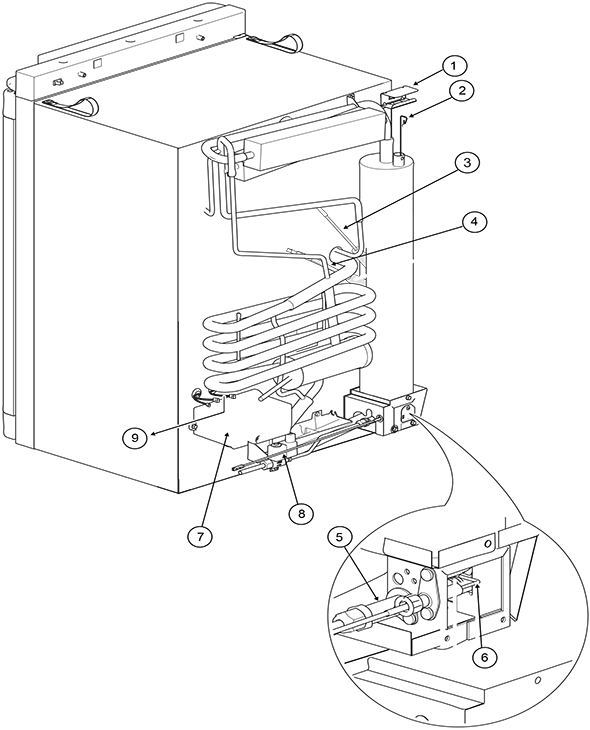

Norcold N4104

...
...
NS
Wire Harness - Solenoid Gas Valve NRC-634987
...
NS
Kit Serv Power Cord 120Vac NRC-691446
...
NS
Kit Serv Thermostat Fan NRC-636877
...
NS
Kit Serv Fan Replacement NRC-636876
...
1
Heat Cap NRC-636865
...
2
Heat Diffuser NRC-690878
...
3
Heater-Ac NRC-636866
...
4
Heater-Dc NRC-636867
...
5
Burner Assembly NRC-636868
...
6
Spark Electrode NRC-690830
...
7
Power Control Board NRC-692249
...
8
Gas Valve NRC-636873
...
9
Thermistor Cable (Connectors Included) NRC-636874
...
10
Kit Serv Communication Cable Replacement NRC-636875
