Norcold N2175

Model: N2175

Save Part Not Listed?
product name

Norcold N2175

...
...
NS
Mounting Screws & Caps, 8 Pc Each, White NRC-691869
...
NS
Mounting Screws & Caps, 4 Pc Each, White NRC-691590
...
NS
Mounting Screw Grommet Cap, 2 Pc, White NRC-62362208
...
1
Left And Right Upper Hinge NRC-692822
...
2
Fixing Nut NRC-692822
...
3
Fixing Leg NRC-692822
...
4
Left And Right Bottom Hinge NRC-692822
...
5
Pcb NRC-692865
...
6
Light Cover NRC-692865
...
7
Sticker NRC-640997
...
8
Housing NRC-692825
...
9
Cover Plate NRC-692826
...
10
Fan Shield NRC-692827
...
11
Internal Fan NRC-692777
...
12
Fan Cover NRC-692829
...
13
Thermistor Cover NRC-692776
...
14
Thermistor NRC-692776
...
15
Breakfast Tray NRC-692832
...
16
Cover Slide Out Box NRC-692831
...
17
Door Latch Plate NRC-692758
...
18
Winter Lock Support NRC-692758
...
19
Vegetable Bin NRC-692876
...
20
Freezer Drawer Divider NRC-692835
...
21
Drawer Bin NRC-692878
...
22
Drawer Guide Right NRC-692837
...
23
Drawer Guide Left NRC-692837
...
24
Bottom Cover NRC-692838
...
25
Left Bottom Fixing Plate NRC-692840
...
26
Right Bottom Fixing Plate NRC-692840
...
27
Condensor Fan NRC-692785
...
28
Control Module NRC-640178
...
29
Power Cord NRC-692846
...
30
Drip Cup NRC-692847
...
31
Evaporator Tube NRC-692848
...
32
Light Housing NRC-692779
...
33
Led Light NRC-692779
...
34
Light Cover NRC-692779
...
35
Clip Shelf Large NRC-692791
...
36
Shelf NRC-692893
...
37
Food Retainer NRC-692789
...
38
Bottle Divider NRC-692853
...
39
Door Bin NRC-692854
...
40
Door Cover NRC-692795
...
41
Plate NRC-692898
...
42
Cabinet Door And Deco Panel NRC-692857
...
43
Cabinet Deco Panel NRC-641301
...
44
Panel Retainer Cabinet Door NRC-692858
...
45
Freezer Door And Deco Panel NRC-692859
...
46
Freezer Door Deco Panel NRC-641303
...
47
Panel Retainer Freezer Door NRC-692860
...
48
Silicone Blanking Cap NRC-691456
...
49
Upper Hinge Shaft NRC-691456
...
50
Upper Hinge Shaft Spring NRC-691456
...
51
Lower Hinge Shaft NRC-691456
...
52
Handle NRC-692798
...
53
Handle Connecting Shaft NRC-692798
...
54
Big Handle Spring NRC-692798
...
55
Small Handle Spring NRC-692798
...
56
Handle Groove NRC-692798

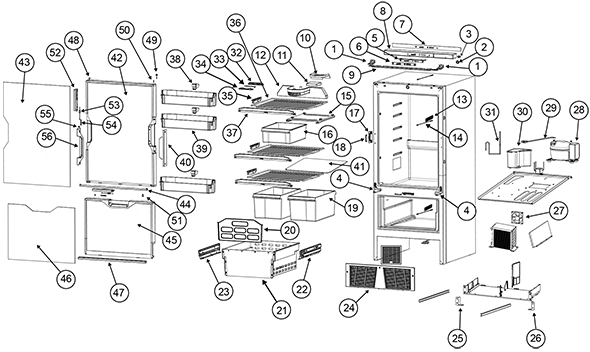

Schematic Image Zoomed
