product name

Norcold N2152

Model: N2152

Save Part Not Listed?
product name

Norcold N2152

...
...
NS
Mounting Screws & Caps, 8 Pc Each, White NRC-691869
...
NS
Mounting Screws & Caps, 4 Pc Each, White NRC-691590
...
NS
Mounting Screw Grommet Cap, 2 Pc, White NRC-62362208
...
1
Right Upper Hinge NRC-692751
...
2
Left Upper Hinge NRC-692751
...
3
Left Bottom Hinge NRC-692751
...
4
Right Bottom Hinge NRC-692751
...
5
Thermistor NRC-692776
...
6
Thermistor Cover NRC-692776
...
7
Led Panel NRC-692801
...
8
Technical Panel NRC-692802
...
9
Circuit Board Light Panel NRC-692803
...
10
Control Panel NRC-692803
...
11
Control Housing NRC-692804
...
12
Sticker NRC-640995
...
13
Fan NRC-692777
...
14
Fan Cover NRC-691867
...
15
Fan Net NRC-691867
...
16
Light Housing NRC-692779
...
17
Led Light NRC-692779
...
18
Light Cover NRC-692779
...
19
Breakfast Tray NRC-692808
...
20
Door Latch Plate NRC-692758
...
21
Winter Lock Support NRC-692758
...
22
Plate NRC-692362
...
23
Drip Cup NRC-692810
...
24
Condenser Fan Cover NRC-691887
...
25
Condenser Fan NRC-692785
...
26
Power Cord NRC-691873
...
27
Control Module NRC-640178
...
28
Freezer Door NRC-691877
...
29
Food Retainer NRC-692789
...
30
Cover Slide Out Box NRC-691865
...
31
Clip Shelf Large NRC-692791
...
32
Shelf NRC-692816
...
33
Foaming Door And Deco Panel NRC-692817
...
34
Deco Panel NRC-641300
...
35
Door Bin NRC-692794
...
36
Drawer Divider NRC-691878
...
37
Vegetable Bin Slide Guide NRC-691874
...
38
Door Cover With Chamfer (Sn E006#Zdw00530001 And Above) NRC-692875
...
38
Door Cover (Sn E006#Zdw00530000 And Below) NRC-692764
...
39
Drawer Bin NRC-691860
...
40
Upper Hinge Shaft NRC-691456
...
41
Silicone Blanking Cap NRC-691456
...
42
Upper Hinge Shaft NRC-691456
...
43
Upper Hinge Shaft Spring NRC-691456
...
44
Panel Retainer (Sn E006#Zdw00530000 And Below) NRC-692768
...
44
Panel Retainer (Sn E006#Zdw00530001 And Above) NRC-692885
...
45
Handle Assembly (Sn E006#Zdw00530000 And Below) NRC-692770
...
45
Handle Assembly (Sn E006#Zdw00530001 And Above) NRC-692886

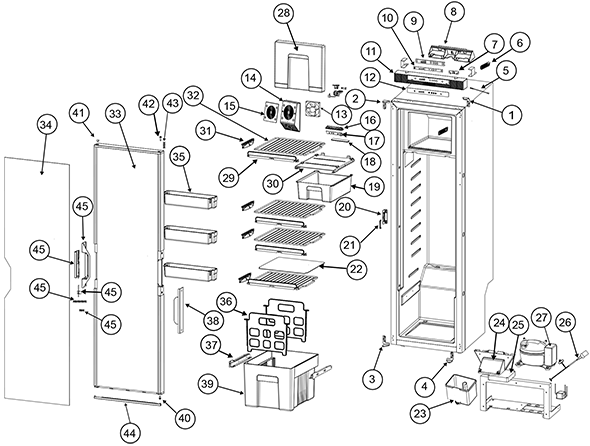

Schematic Image Zoomed
