Norcold N20DC

Model: N20DC

Save Part Not Listed?
product name

Popular Parts

Popular Parts

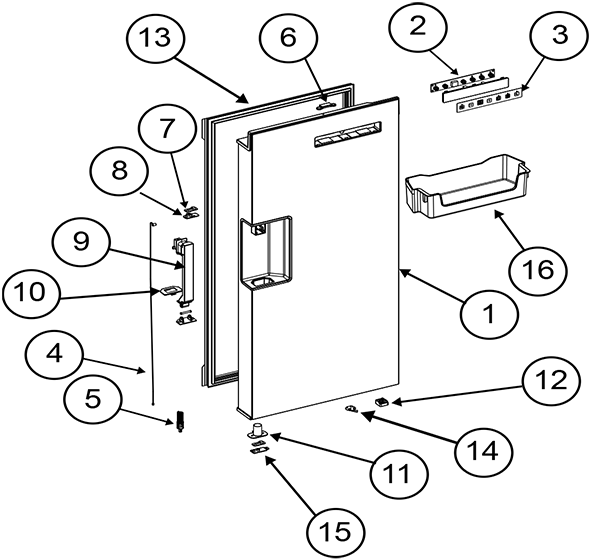

Norcold N20DC

...
...
NS
Freezer Light NRC-641091
...
1
Kit Right Cabinet Door Assembly (Use 641038) NRC-640965
...
1
Kit Right Cabinet Door Assembly (Use 641324) NRC-641038
...
1
Kit - Right Cabinet Door Assembly, N15Dc NRC-641324
...
1
Kit Right Cabinet Door Assembly (Use 641165) NRC-641061
...
1
Kit Right Cabinet Door Assembly (Use 641329) NRC-641165
...
1
Kit - Right Cabinet Door Assembly, N20Dc NRC-641329
...
2
User Interface NRC-640964
...
3
User Interface Cover NRC-640963
...
4
Door Latch Cable Assembly NRC-640973
...
5
Latch Assembly NRC-640975
...
6
Door Sensor (Magnet) And Housing NRC-640958
...
7
Handle Led NRC-640969
...
8
Handle Led Cover NRC-640970
...
9
Handle Assembly (Screws Included) NRC-640972
...
10
Handle Cover NRC-640974
...
11
Latch Cover NRC-640978
...
12
Right Door Stopper (And Screw) NRC-640977
...
13
Fresh Food Door Gasket (Use 641325) NRC-640966
...
13
Fresh Food Door Gasket NRC-641325
...
13
Door Gasket , Fresh Food (Use 641325) NRC-641063
...
13
Fresh Food Door Gasket NRC-641330
...
14
Door Foam Plug NRC-640979
...
15
Handle Led Cover Lower NRC-640971
...
16
Door Bin NRC-640968
...
16
Door Bin NRC-641064

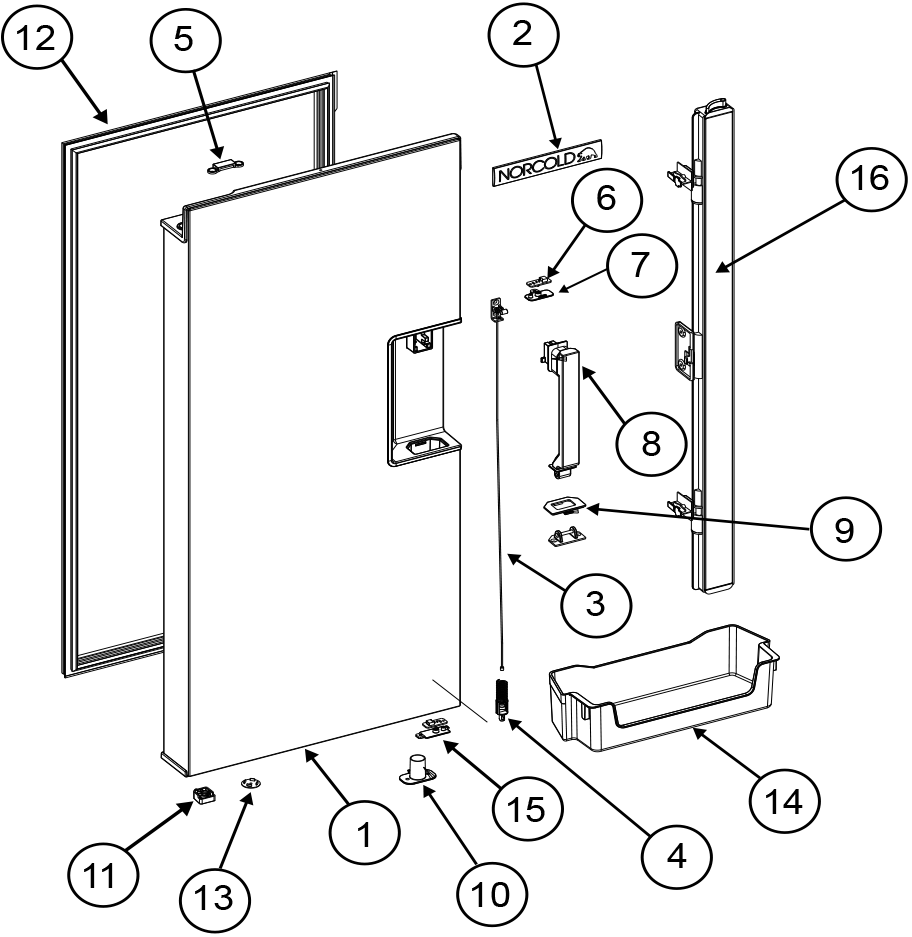

Norcold N20DC

...
...
NS
Freezer Light NRC-641091
...
1
Kit - Left Cabinet Door Assembly (Use 641039) NRC-640967
...
1
Kit - Left Cabinet Door Assembly (Use 641322) NRC-641039
...
1
Kit - Left Cabinet Door Assembly NRC-641322
...
1
Kit - Left Cabinet Door Assembly (Use 641166) NRC-641062
...
1
Kit - Left Cabinet Door Assembly (Use 641327) NRC-641166
...
1
Kit - Left Cabinet Door Assembly NRC-641327
...
2
Logo NRC-640990
...
3
Door Latch Cable Assembly NRC-640973
...
4
Latch Asssembly NRC-640975
...
5
Door Sensor (Magnet) And Housing NRC-640958
...
6
Handle Led NRC-640969
...
7
Handle Led Cover NRC-640970
...
8
Handle Assembly (Screws Included) NRC-640972
...
9
Handle Cover NRC-640674
...
10
Latch Cover NRC-640978
...
11
Left Door Stopper (And Screw) NRC-640976
...
12
Fresh Food Door Gasket (Use 641325) NRC-640966
...
12
Fresh Food Door Gasket NRC-641325
...
12
Door Gasket Fresh Food (Use 641330) NRC-641063
...
12
Fresh Food Door Gasket NRC-641330
...
13
Door Foam Plug NRC-640979
...
14
Door Bin NRC-640968
...
14
Door Bin NRC-641064
...
15
Handle Led Cover Lower NRC-640971
...
16
Flapper Assembly (Use 641040) NRC-640980
...
16
Kit - Flapper Assembly (Screws Included) NRC-641040
...
16
Flapper Assembly (Use 641167) NRC-641065
...
16
Kit - Flapper Assembly (Screws Included) NRC-641167

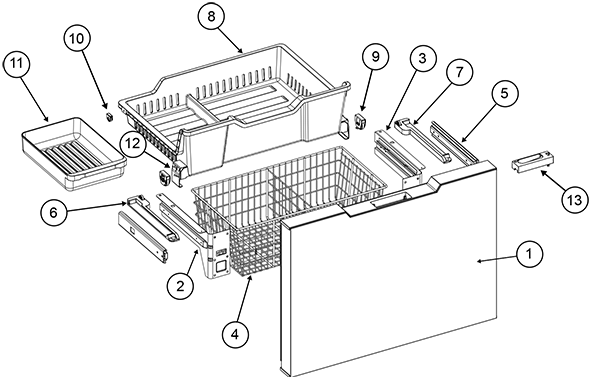

Norcold N20DC

...
...
NS
Freezer Door Gasket NRC-640982
...
NS
Freezer Door Gasket NRC-641066
...
NS
Freezer Bin Divider (Screws Included) NRC-641098
...
1
Freezer Door (Includes M6X25 Screws - Qty 12) NRC-640981
...
1
Freezer Door (Includes M6X25 Screws - Qty 12) NRC-641067
...
2
Freezer Bracket-Left (Includes M6X25 Screws - Qty 6) NRC-640956
...
3
Freezer Bracket-Right (Includes M6X25 Screws - Qty 6) NRC-640957
...
4
Freezer Wire Basket NRC-640955
...
4
Wire Freezer Bin NRC-641060
...
5
Freezer Slides And Mounting Scerws NRC-640945
...
6
Freezer Guide Rail-Left (Screws Included) NRC-640948
...
7
Freezer Guide Rail- Right (Screws Included) NRC-640949
...
8
Freezer Bin Upper (Use 641041) NRC-640950
...
8
Kit- Freezer Bin Upper NRC-641041
...
8
Upper Freezer Bin (Use 641168) NRC-641059
...
8
Kit- Freezer Bin Upper NRC-641168
...
9
Upper Bin Freezer Wheels - Front NRC-640953
...
10
Upper Bin Freezer Wheels - Rear NRC-640952
...
11
Ice Bin NRC-640954
...
12
Bin Restraint NRC-640951
...
13
Handle Assembly (Screws Included) NRC-640983

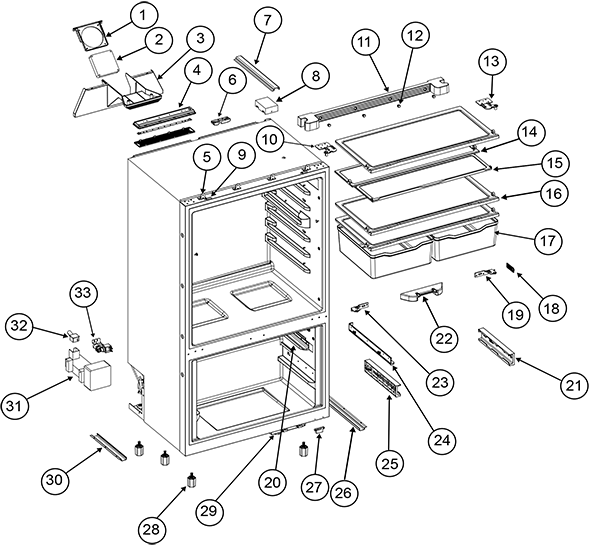

Norcold N20DC

...
...
NS
Shelf Divider (Screws Included) NRC-641096
...
NS
Cripser Divider (Screws Included) NRC-641097
...
NS
Mounting Screw Grommet Cap, 2 Pc, White NRC-62362208
...
NS
Mounting Screw & Grommet Cap, 4 Pc Each White NRC-691590
...
NS
Mounting Screw & Grommet Cap, 8 Pc Each, White NRC-691869
...
1
Internal Fan Cover NRC-640928
...
2
Internal Fan (Use 641042) NRC-640927
...
2
Kit- Internal Fan NRC-641042
...
3
Internal Fan Housing NRC-640929
...
4
Light Assembly NRC-640933
...
5
Vent Mounting Bracket And Screws NRC-640925
...
6
Flapper Guide NRC-640932
...
7
Wire Cover NRC-640960
...
8
Control Board (Use 641043) NRC-640984
...
8
Kit- Control Board NRC-641043
...
9
Magnet Door Switch And Screws NRC-640924
...
10
Upper Left Hinge And Screws NRC-640940
...
11
Vent NRC-640926
...
11
Top Vent NRC-641054
...
12
Vent Hole Plug NRC-641032
...
13
Upper Right Hinge And Screws NRC-640941
...
14
Rear Slide Out Shelf NRC-640935
...
14
Slide Out Shelf Rear NRC-641056
...
15
Front Slide Out Shelf NRC-640936
...
15
Slide Out Shelf Front NRC-641057
...
16
Fresh Food Shelf NRC-640934
...
16
Fresh Food Shelf NRC-641055
...
17
Crisper Bin NRC-640937
...
17
Crisper Bin NRC-641058
...
18
Thermostat And Cover NRC-640149
...
19
Center Hinge - Right (Screws Included) NRC-640939
...
20
Upper Freezer Drawer Mount- Right (Screws Included) NRC-640947
...
21
Lower Freezer Drawer Mount- Right (Screws Included) NRC-640944
...
22
Latch Plate And Screws NRC-640942
...
23
Center Hinge - Left (Screws Included) NRC-640938
...
24
Upper Freezer Drawer Mount- Left (Screws Included) NRC-640946
...
25
Lower Freezer Drawer Mount- Left (Screws Included) NRC-640943
...
26
Bottom Wire Cover NRC-640959
...
27
Door Sensor-Freezer NRC-640988
...
28
Foot (X6) NRC-640962
...
29
Fuse Housing NRC-641036
...
30
Fuse Wire Cover NRC-641037
...
31
Ice Maker NRC-641033
...
32
Ice Maker Fitting NRC-641034
...
33
Water Valve NRC-641035

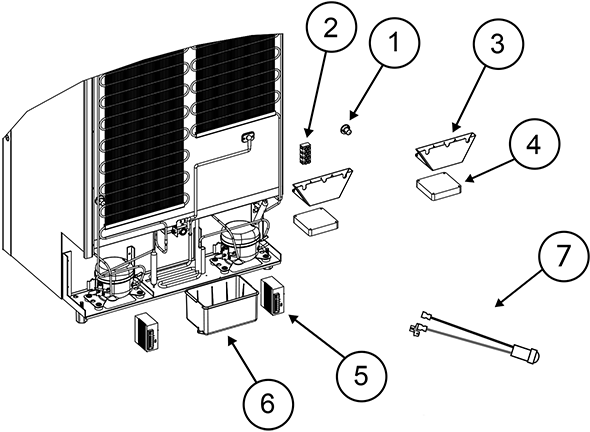

Norcold N20DC

...
...
1
Back Stopper NRC-640985
...
2
Terminal Block NRC-640986
...
3
Kit Service Condenser Fan Cover Replacement NRC-640105
...
4
Kit Service Condenser Fan Replacement NRC-640103
...
5
Compressor Power Module NRC-640178
...
6
Rear Drip Tray NRC-640989
...
7
Dc Cpm Troubleshooting Led NRC-641315
