Norcold 1210 SERIES

Model: 1210

Save Part Not Listed?

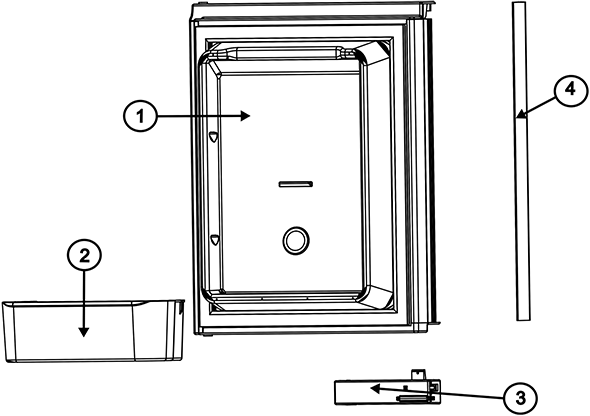

product name

Norcold 1210

...
...
NS
Storage Latch-Door/Black (Not Shown) NRC-619374
...
1
Door Liner Assy-Upper/Rh/Panel NRC-627942
...
1
Door Liner Assy-Upper/Rh/Wrap/Black (Use 632740) NRC-629130
...
1
Door Liner Assy-Upper/Rh/Wrap/At Black (07/30/08 To Sn 14305975) NRC-632740
...
1
Door Liner Assy-Upper/Rh/Wrap/Anco Black (Sn 14305976 & Above) NRC-634073
...
1
Door Liner Assy-Upper/Rh/Wrap/Ss (Valspar)(Sn 9658578 To 11723120) NRC-630094
...
1
Door Liner Assy-Upper/Rh/Wrap/Ss (At)(Sn 11723121 Thru 13081918) NRC-632739
...
1
Door Liner Assy-Upper/Rh/Wrap/Ss (Anco)(Sn 13081919 & Above) NRC-634068
...
1
Door Liner Assy-Upper/Rh/Wrap/Pewter Royce NRC-62913401
...
2
Bin-Door Shelf NRC-628686
...
3
Door Handle Assy-Upper Rh Door/Lower Lh Door NRC-629815
...
3
Door Handle Assy-Upper Rh Door/Lower Lh Door NRC-621106
...
4
Panel Retainer-Upper/Panel Type Only NRC-627947

Norcold 1210

...
...
NS
Storage Latch-Door/Black (Not Shown) NRC-619374
...
1
Door Liner Assy-Upper/Lh/Panel NRC-627941
...
1
Door Liner Assy-Upper/Lh/Wrap/Black (Use 632742) NRC-629129
...
1
Door Liner Assy-Upper/Lh/Wrap/At Black (07/30/08 To Sn 14305975) NRC-632742
...
1
Door Liner Assy-Upper/Lh/Wrap/Anco Black (Sn 14305976 & Above) NRC-634074
...
1
Door Liner Assy-Upper/Lh/Wrap/Ss (Valspar)(Sn 9658578 To 11723120) NRC-630095
...
1
Door Liner Assy-Upper/Lh/Wrap/Ss (At)(Sn 11723121 Thru 13081918) NRC-632741
...
1
Door Liner Assy-Upper/Lh/Wrap/Ss (Anco)(Sn 13081919 & Above) NRC-634069
...
1
Door Liner Assy-Upper/Lh/Wrap/Pewter Royce NRC-62913301
...
2
Bin-Door Shelf NRC-628686
...
3
Door Handle Assy-Upper Lh Door/Lower Rh Door NRC-629814
...
3
Door Handle Assy-Upper Lh Door/Lower Rh Door NRC-621107
...
4
Panel Retainer-Upper (Panel Type Only) NRC-627947

Norcold 1210

...
...
NS
Storage Latch-Door/Black (Not Shown) NRC-619374
...
1
Door Liner Assy-Lower/Rh/Panel NRC-627944
...
1
Door Liner Assy-Lower/Rh/Wrap/Black (Use 632744) NRC-629132
...
1
Door Liner Assy-Lower/Rh/Wrap/At Black (07/30/08 To Sn 14305975) (Use 634075) NRC-632744
...
1
Door Liner Assy-Lower/Rh/Wrap/Anco Black (Sn 14305976 & Above) NRC-634075
...
1
Door Liner Assy-Lower/Rh/Wrap/Ss (Valspar)(Sn 9658578 To 11723120) (Use 634070) NRC-630096
...
1
Door Liner Assy-Lower/Rh/Wrap/Ss (At)(Sn 11723121 Thru 13081918) (Use 634070) NRC-632743
...
1
Door Liner Assy-Lower/Rh/Wrap/Ss (Anco)(Sn 13081919 & Above) NRC-634070
...
1
Door Liner Assy-Lower/Rh/Wrap/Pewter Royce NRC-62913601
...
2
Bin-Door Shelf NRC-628686
...
3
Panel Retainer-Lower (Panel Type Only) NRC-627948
...
4
Door Handle Assy-Upper Lh Door/Lower Rh Door NRC-629814
...
4
Door Handle Assy-Upper Lh Door/Lower Rh Door NRC-621107

Norcold 1210

...
...
NS
Storage Latch-Door/Black (Not Shown) NRC-619374
...
1
Door Liner Assy-Lower/Lh/Panel NRC-627943
...
1
Door Liner Assy-Lower/Lh/Panel/Dispenser NRC-629146
...
1
Door Liner Assy-Lower/Lh/Wrap/Black NRC-629131
...
1
Door Liner Assy-Lower/Lh/Wrap/At Black (07/30/08 To Sn 14305975) (Use 634076) NRC-632747
...
1
Door Liner Assy-Lower/Lh/Wrap/Anco Black (Sn 14305976 & Above) NRC-634076
...
1
Door Liner Assy-Lower/Lh/Wrap/Black/Dispenser NRC-629148
...
1
Door Liner Assy-Lower/Lh/Wrap/At Black/Dispenser (07/30/08 To Sn 14305975) NRC-632748
...
1
Door Liner Assy-Lower/Lh/Wrap/Anco Black/Dispenser (Sn 14305976 & Above) NRC-634077
...
1
Door Liner Assy-Lower/Lh/Wrap/Ss (Valspar)(Sn 9658578 To 11723120) (Use 632745) NRC-630097
...
1
Door Liner Assy-Lower/Lh/Wrap/Ss (At)(Sn 11723121 Thru 13081918) NRC-632745
...
1
Door Liner Assy-Lower/Lh/Wrap/Ss (Anco)(Sn 13081919 & Above) NRC-634071
...
1
Door Liner Assy-Lower/Lh/Wrap/Ss/Dispenser (Valspar)(Sn 9658578 To 11723120) NRC-630098
...
1
Door Liner Assy-Lower/Lh/Wrap/Ss/Dispenser (At)(Sn 11723121 Thru 13081918) NRC-632746
...
1
Door Liner Assy-Lower/Lh/Wrap/Ss/Dispenser (Anco)(Sn 13081919 & Above) NRC-634072
...
1
Door Liner Assy-Lower/Lh/Wrap/Pewter Royce NRC-62913501
...
2
Bin-Door Shelf NRC-628686
...
3
Flapper Assy (Serial # 10414601 And Above) NRC-631030
...
3
Kit-Flapper Assy/Guide Blocks (Serial# 10414600 & Below) NRC-631366
...
4
Panel Retainer-Lower (Panel Type Only) NRC-627948
...
5
Door Handle Assy-Upper Rh Door/Lower Lh Door NRC-629815
...
5
Door Handle Assy-Upper Rh Door/Lower Lh Door NRC-621106

Norcold 1210

...
...
NS
Hole Plug-For Top Trim Piece/Black NRC-618170
...
NS
Drain Hose Assy-1200 Series NRC-622392
...
NS
Kit Serv Drain Hose Replacement (1210) NRC-639105
...
NS
Lamp Bracket Assy (Use 638292) NRC-61629722
...
NS
Kit Service Lamp Bracket Replacement NRC-638292
...
NS
Lamp-Dc Light Bulb NRC-632545
...
NS
Plate-For Dummy Box (Non-Dispenser Models Only) NRC-628460
...
NS
Control Panel (Dispenser Models Only) NRC-628454
...
NS
Ice Cube Tray-Plastic (Non-Ice Maker Models Only) NRC-61630422
...
NS
Kit Serv Thermister Replacement NRC-638394
...
1
Kit-Installation ("U" Trim Pieces/Screws/Caps) NRC-623528
...
2
Hinge Pin-Upper/Black (Use 638780) NRC-623899
...
2
Kit Service Upper Hinge Pin Replacement NRC-638780
...
3
Hinge-Outside/Upper Rh/Lower Lh NRC-628946
...
4
Hinge Pin-Lower (Use 638636) NRC-61550722
...
4
Kit Service Lwr Hinge Pin Replacement NRC-638636
...
5
Hinge-Inside/Upper Rh/Lower Lh NRC-624363
...
6
Hinge-Inside/Upper Lh/Lower Rh NRC-624364
...
7
Cover-Hinge/1210 Series NRC-627955
...
8
Trim Piece-Side/With "U" Top/Bottom Trim Piece NRC-623254
...
9
Retainer-Shelf NRC-622033
...
10
Hinge-Outside/Upper Lh/Lower/Rh NRC-628945
...
11
Guide Block Assy-Bottom/Black (Serial # 10414601 & Above) NRC-631360
...
11
Kit-Flapper Assy/Guide Blocks (Serial# 10414600 & Below) NRC-631366
...
12
Fins (Use Serial# Nr02Guw And Below) NRC-618785
...
12
Fin Fresh Food Assy (Serial # Nr02Gux And Above) NRC-640283
...
13
Drip Tray-Inside/Cabinet NRC-618774
...
14
Probe-Contact/Large NRC-620689
...
15
Switch-Door Light/1200 Series NRC-623918
...
16
Lamp Thermister Wire Assy NRC-620871
...
17
Control Assy-Optical/Ge/1210 Series NRC-629113
...
17
Control Assy-Optical/Ac/1210 Series NRC-629817
...
18
Cover-Lamp Bracket NRC-621827
...
19
Guide Block Assy-Top/Black (Serial # 10414601 & Above) NRC-631359
...
19
Kit-Flapper Assy/Guide Blocks (Serial# 10414600 & Below) NRC-631366
...
20
Strike Plate-Black NRC-628473
...
21
Front Box-Dummy Box (Non-Dispenser Models Only) NRC-624366
...
22
Shelf-Wire/Freezer/1200 Series (Use 632434) NRC-618847
...
22
Shelf-Wire/Freezer/1200 Series NRC-632434
...
23
Shelf-Wire/Short/1200 Series (Use 632436) NRC-618849
...
23
Shelf-Wire/Short/1200 Series NRC-632436
...
24
Shelf-Wire/Long/1200 Series (S/N 18023741 And Below) NRC-618848
...
24
Shelf-Wire/Long/1200 Series (S/N 18023742 And Above) NRC-632435
...
25
Crisper Cover-Glass Shelf NRC-618757
...
26
Bin-Bottle/Crisper NRC-628688
...
27
Divider-Bottle Crisper NRC-628694
...
28
Support Wall-For Crisper Bin NRC-632608
...
29
Strip-Freezer-Black NRC-625210

Norcold 1210

...
...
NS
Cap-Heat Deflector (Serial # 16240755 & Below) NRC-629099
...
NS
Spacer-Nylon NRC-628011
...
NS
Kit Serv Upr Insulation Replacement NRC-639083
...
1
System Pack-Cooling Unit/Step (Backer Heater) (Serial # 14883315 & Below) NRC-634746
...
1
System Pack-Cooling Unit/Straight (Backer Heater) (Serial # 14883316 & Above) NRC-634747
...
1
Send Burner Box Kit (Sn Nr04Fg8 And Above) NRC-634747
...
2
Fins-Evaporator (Serial # Nr02Guw And Below) NRC-618785
...
2
Fin Fresh Food Assy (Serial # Nr02Gux And Above) NRC-640283
...
3
Heater-Ac (2 Per System)(Cooling Unit Serial# 11231145 & Below) NRC-618872
...
3
Heater-Ac/Backer (2 Per System)(Cooling Unit Serial# 11231146 & Above) (Use 638372) NRC-630807
...
3
Kit Service Heater Replacement NRC-638372
...
4
Base-Burner Box (Serial # 16240755 & Below) NRC-618902
...
4
Base-Burner Box (Serial # 16240756 & Above) NRC-61695322
...
4
Kit Service Burner Box Base (Sn Nr04Fg8 And Above) NRC-641004
...
5
Kit-Cover Assy-Burner Box NRC-637158
...
6
Drip Cup-Rear/Plastic NRC-622546
...
7
Drain Hose Assy (Serial # 16240755 & Below) NRC-622392
...
7
Drain Hose Assy (Serial # 16240756 & Above) NRC-635407
...
8
Bracket-Dc Fan (2 Per System) (Serial # 9144576 Thru 16240755) NRC-628747
...
8
Bracket-Dc Fan (2 Per System) (Serial # 16240756 & Above) NRC-628747
...
9
Fan-External Dc (2 Per System) NRC-628685
...
9
Fan-External Dc (2 Per System)(Use 628685) NRC-636441
...
10
Thermostat-Dc Fan/Thermo Disc (Use 638278) NRC-618093
...
10
Kit Service Fan Thermostat Replacement NRC-638278
...
11
Baffle Diffuser/Wire Assy (Serial # 16240755 & Below) NRC-618915
...
11
Baffle Diffuser/Wire Assy (Serial # 16240756 & Above) NRC-635339
...
12
Splash Cover NRC-640288
...
13
Temperature Monitor Control NRC-637360
...
14
Insulation / Canister Assy NRC-2M1213

Norcold 1210

...
...
NS
Burner Sleeve Kit NRC-640452
...
NS
Splash Cover NRC-640288
...
1
Base-Power Board NRC-628674
...
2
Power Board NRC-628661
...
3
Cover-Power Board NRC-628677
...
4
Bracket-Gas Valve NRC-628993
...
5
Gas Valve (Use 637540) NRC-633726
...
5
Kit Service Gas Vale Replacement NRC-637540
...
6
Burner Tube-1200 Series (Use 638982) NRC-624683
...
6
Kit Serv Gas Burner Tube Replacement NRC-638982
...
7
Kit-Burner Orifice Adptr Assy (S/N 16317456 And System Sn 16273576 And Before) NRC-629013
...
7
Kit-Burner Orifice Adptr Assy (S/N 16317457 And System Sn 1627355 And After) NRC-635614
...
8
Cord-Ac Power NRC-61554422
...
8
Cord-Power/White (Ice Maker Models Only) NRC-621755
...
8
Cord-Ac Power/Ice Maker NRC-618406
...
9
Kit-Cover Assy-Burner Box NRC-637158
...
10
Base-Burner Box (Serial # 16240755 & Below) NRC-618902
...
10
Base-Burner Box (Serial # 16200756 & Above) NRC-61695322
...
10
Assembly Burner Box Bracket (Serial # Nr04Fg8 And Above) NRC-637182
...
11
Electrode-Spark/Sense/Single Electrode/0.25" (Use 638097) NRC-61692222
...
11
Kit Service Spark Sense Electrode Replacement NRC-638097

Norcold 1210

...
...
1
Base-Power Board NRC-628674
...
2
Power Board (Serial # 9098172 & Above) NRC-628661
...
3
Cover-Power Board (Serial # 9098172 & Above) NRC-628677
...
4
Cord-Ac Power NRC-61554422
...
4
Cord-Power/Ice Maker/White NRC-621755
...
5
Cover Assy-Burner Box NRC-618910
...
6
Base-Burner Box (Serial # 16240755 & Below) NRC-618902
...
6
Base-Burner Box (Serial # 16240755 & Above) NRC-61695322

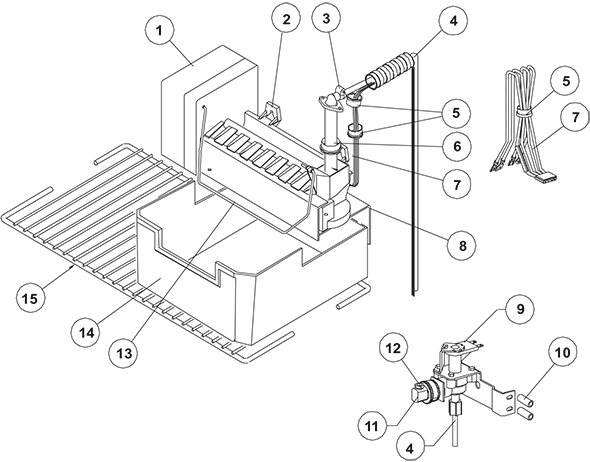

Norcold 1210

...
...
NS
Thermostat-Im Heater Assy NRC-620240
...
1
Cover-Front/Ice Maker NRC-61656822
...
2
Kit-Ice Maker (Use 637582) NRC-633324
...
2
Kit-Service Im Replacement NRC-637582
...
3
Clamp-Hose/Tubing/Im NRC-61690822
...
3
Nut-Compression/Plastic NRC-622991
...
4
Water Tube/Heater Assy/For Ice Maker (Models Without Dispenser) NRC-621429
...
4
Water Tube/Heater Assy/For Ice Maker (Models With Dispenser) NRC-625879
...
5
Bushing-Snap NRC-61541422
...
6
Fitting-Water Tube/Im/4.17" NRC-620039
...
7
Wiring Harness-Im (Use 639086) NRC-618407
...
7
Kit Service Wire Harness Repalcement NRC-639086
...
8
Bracket-Im Mounting (639706) NRC-620890
...
8
Kit Service Im Mounting Bracket NRC-639706
...
9
Kit-Water Valve-Single Port (Use 637140) NRC-633325
...
9
Kit Service Water Valve Replacement (Use 637580) NRC-637140
...
9
Kit Service Watervalve Replacement (Use 640908) NRC-637580
...
9
Kit Service, Im Water Valve Assy NRC-640908
...
9
Kit-Water Valve-Dual Port/Dispenser NRC-637164
...
10
Spacer-Water Valve/Nylon (2 Per Assembly) NRC-618169
...
11
Garden Hose Adapter-Straight/Im NRC-61679622
...
12
Nut-Compression/Water Valve Fitting/Im/Plastic NRC-622991
...
12
Nut-Brass/Garden Hose Adapter NRC-622846
...
12
Nut-Compression 5/16"/Dispenser Models NRC-625880
...
13
Shut Off Arm/Im NRC-61656922
...
14
Bin-Ice NRC-618803
...
15
Shelf-Wire/Freezer NRC-618847

Norcold 1210

...
...
1
Lamp Bracket Assy NRC-61629722
...
2
Cover-Lamp Bracket NRC-621827
...
3
Lamp-Ge #214-2/Dc Light Bulb NRC-632545
...
4
Clip-Thermister Mounting/Fin (Use 638281) NRC-633734
...
4
Kit Service Fin Clip Replacement NRC-638281
...
5
Lamp/Thermister Wire Assy NRC-620871
...
5
Lamp/Thermister Wire Assy NRC-636658

Norcold 1210

...
...
xxx
Backsplash Assy-Dispenser NRC-629528
...
xxx
Backsplash/Clip Assy (Use 635687) NRC-627570
...
xxx
Backsplash/Clip Assy NRC-635687
...
xxx
Board-Led/Dispenser NRC-627143
...
xxx
Bracket-Switch/Dispenser/1210 Series NRC-628476
...
xxx
Bracket-Water Valve/Dispenser NRC-624503
...
xxx
Connector-5/16" Union/Dispenser NRC-625881
...
xxx
Connector-Union/Dispenser NRC-625528
...
xxx
Control Panel-Housing/Dispenser/1210 Series NRC-628454
...
xxx
Cover Assy-Reservoir/Dispenser (1-4-2012 And Before) NRC-625886
...
xxx
Cover Assy-Reservoir/Dispenser (1-5-2012 And After) NRC-635379
...
xxx
Door Liner Assy-Lower/Lh/Panel/Dispenser NRC-629146
...
xxx
Door Liner Assy-Lower/Lh/Wrap/Black/Dispenser NRC-629148
...
xxx
Door Liner Assy-Lower/Lh/Wrap/Ss/Dispenser (Valspar) NRC-630098
...
xxx
Drain Grid-Dispenser NRC-625241
...
xxx
Drip Cup-Dispenser NRC-625385
...
xxx
Drip Tray-Dispenser NRC-625366
...
xxx
Fastener-Led Board/Dispenser NRC-625006
...
xxx
Heater-Water Line-Dispenser NRC-626803
...
xxx
Heater-Water Valve/Dispenser NRC-626804
...
xxx
Jumper-Wire Harness/Dispenser NRC-626802
...
xxx
Kit-Im Tube Fittings/Dispenser NRC-625882
...
xxx
Nut-Compression 5/16"/Dispenser NRC-625880
...
xxx
Paddle-Dispenser NRC-624391
...
xxx
Plunger-Switch/Dispenser NRC-624392
...
xxx
Ring-Retaining/Dispenser NRC-624573
...
xxx
Spigot-Water Dispenser NRC-626820
...
xxx
Spring-Compression/Dispenser NRC-618182
...
xxx
Switch/Bracket Assy-Dispenser NRC-629526
...
xxx
Switch-Dispenser NRC-624574
...
xxx
Trim Panel-Dispenser NRC-624390
...
xxx
Water Reservoir-Dispenser NRC-624502
...
xxx
Water Tube/Heater Assy/For Ice Maker/Dispenser NRC-625879
...
xxx
Water Valve/Heater Assy-Dispenser NRC-625856
...
xxx
Kit-Water Valve-Dual Port/Dispenser NRC-637164
...
1
Backsplash Assy NRC-629528
...
2
Backsplash/Clip Assy (Use 635687) NRC-627570
...
2
Backsplash/Clip Assy NRC-635687
...
3
Drip Tray NRC-625366
...
4
Spring-Compression NRC-618182
...
5
Paddle NRC-624391
...
6
Drip Cup NRC-625385
...
7
Drain Grid NRC-625241
...
8
Control Panel-Housing NRC-628454
...
9
Spigot NRC-626820
...
10
Board-Led NRC-627143
...
11
Bracket-Switch NRC-628476
...
12
Switch NRC-624574
...
13
Plunger-Switch NRC-624392
...
14
Fastener-Led Board NRC-625006
...
15
Ring-Retaining NRC-624573
...
16
Switch/Bracket Assy NRC-629526
...
17
Trim Panel NRC-624390
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
