Murray 866053 - EX150WT-C, Briggs & Stratton Plate Compactor

Model: 866053 - EX150WT-C, Plate Compactor

Back To Assemblies

Save Part Not Listed?
product name

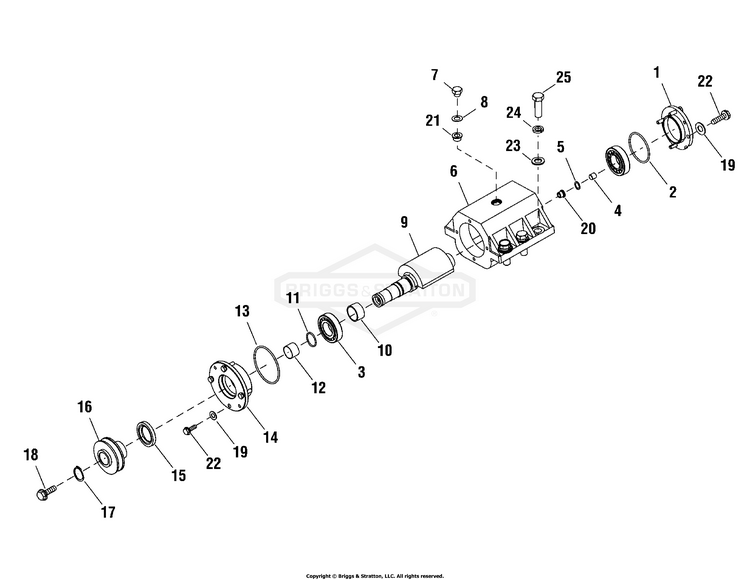

Eccentric Box Group (80003747)

...
...
1
COVER, Eccentric Box BS-700510
...
2
O-RING BS-700511
...
3
BEARING, Single Row Roller BS-700512
...
4
PLUG, Hex Socket Head, M10 BS-700513
...
5
GASKET BS-700514
...
6
ECCENTRIC BOX BS-700515
...
7
PLUG, Hex Head, M14 BS-700516
...
8
GASKET BS-700517
...
9
ECCENTRIC SHAFT BS-700518
...
10
BUSHING BS-700519
...
11
O-RING BS-700520
...
12
BUSHING BS-700521
...
13
O-RING BS-700522
...
14
COVER, Eccentric Box BS-700523
...
15
LIP OIL SEAL RING BS-700525
...
16
PULLEY, Eccentric Box BS-700526
...
17
CIRCLIP BS-700527
...
18
BOLT, Venting BS-700528
...
19
WASHER, Spring BS-700598
...
20
THREAD BUSHING A BS-701483
...
21
THREAD BUSHING B BS-701484
...
22
BOLT, Hex, 18 x 30 BS-702730
...
23
WASHER, Flat BS-702783
...
24
WASHER, Spring BS-702786
...
25
BOLT, Hex, M16 x 50 BS-702791
