Murray 866053 - EX150WT-C, Briggs & Stratton Plate Compactor

Model: 866053 - EX150WT-C, Plate Compactor

Back To Assemblies

Save Part Not Listed?
product name

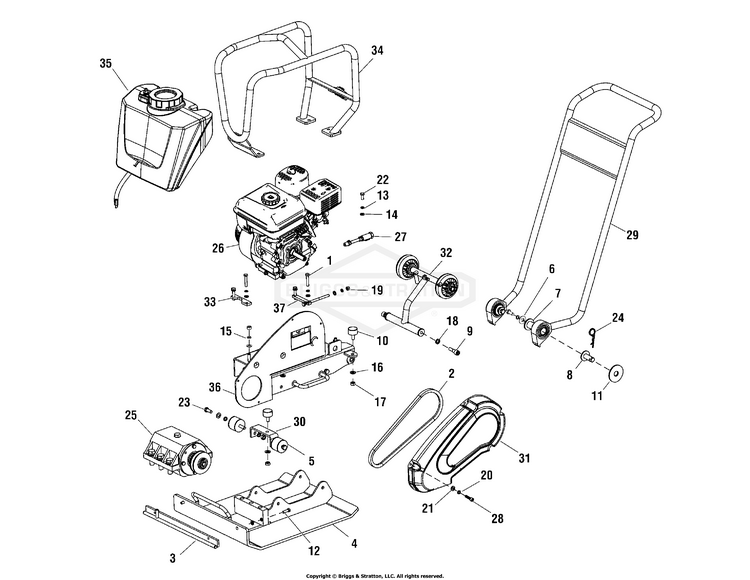

Main Unit (866053)

...
...
1
BOLT, Hex, M8 x 45 BS-700472
...
2
V-BELT BS-700477
...
3
WATER HOSE BS-700482
...
4
BASE PLATE BS-700486
...
5
VIBRATION MOUNT, Rubber BS-700487
...
6
WASHER BS-700494
...
7
BUSHING, Nylon BS-700495
...
8
SHAFT BS-700496
...
9
BOLT, Locking, Wheel Frame BS-700497
...
10
HANDLE VIBRATION, Rubber BS-700499
...
11
WASHER BS-700529
...
12
BOLT, Hex, M8 x 25 BS-700597
...
13
WASHER, Spring BS-700598
...
14
WASHER, Flat BS-700599
...
15
WASHER, Spring BS-700604
...
16
WASHER, Flat BS-700605
...
17
NUT, Hex, M8 BS-700608
...
18
WASHER, Spring BS-700623
...
19
NUT, Hex, M8 BS-700637
...
20
WASHER, Spring BS-700666
...
21
WASHER, Flat BS-700667
...
22
BOLT, Hex, BS-701541
...
23
BOLT, Hex, BS-702600
...
24
RETAINER RING BS-702751
...
25
ECCENTRIC BOX ASSEMBLY BS-702756
...
26
ENGINE ASSEMBLY BS-702757
...
27
EXHAUST OIL ASSEMBLY BS-702758
...
28
SCREW, Socket Head BS-702759
...
29
HANDLE ASSEMBLY BS-702760
...
30
BRACKET BS-702765
...
31
BELT COVER BS-702767
...
32
ROAD WHEEL FRAME ASSEMBLY BS-702769
...
33
ENGINE FIXING PLATE BS-702770
...
34
TANK GUARD ASSEMBLY BS-702771
...
35
WATER TANK ASSEMBLY BS-702772
...
36
ENGINE PLATE BS-702773
...
37
ENGINE ADJUSTING PLATE BS-702774
