Murray 866053 - EX150WT-C, Briggs & Stratton Plate Compactor

Murray 866053 - EX150WT-C, Briggs & Stratton Plate Compactor

Model: 866053 - EX150WT-C, Plate Compactor

Back To Assemblies

Save Part Not Listed?

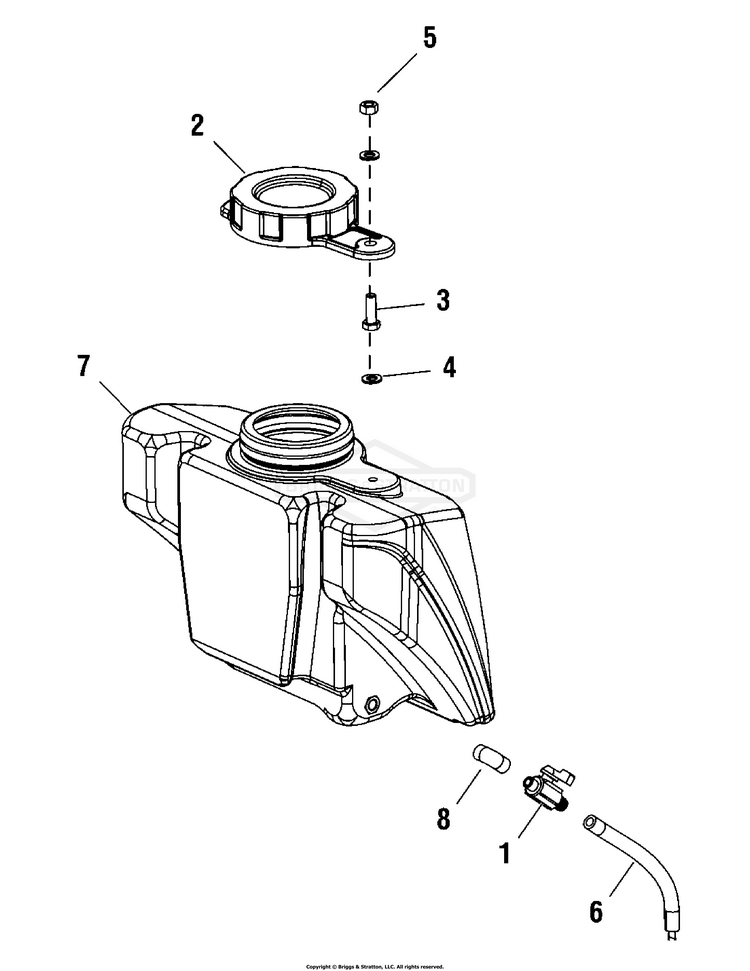

Water Tank Group (80003763)

1

VALVE, Brass Ball BS-700586

2

COVER, Water Tank BS-700592

3

BOLT, Hex, M10 x 30 BS-700603

4

WASHER, Flat BS-700605

5

NUT, Nex, M10 BS-700608

6

WATER PIPE, Rubber BS-702804

7

WATER TANK BS-702805

8

CONNECTOR, L-Type BS-702806
