Murray 1697286 - Briggs & Stratton, SP33, Brush Cutter

Model: 1697286 - , SP33, Brush Cutter

Save
 Part Not Listed?Part Not Listed?
product name

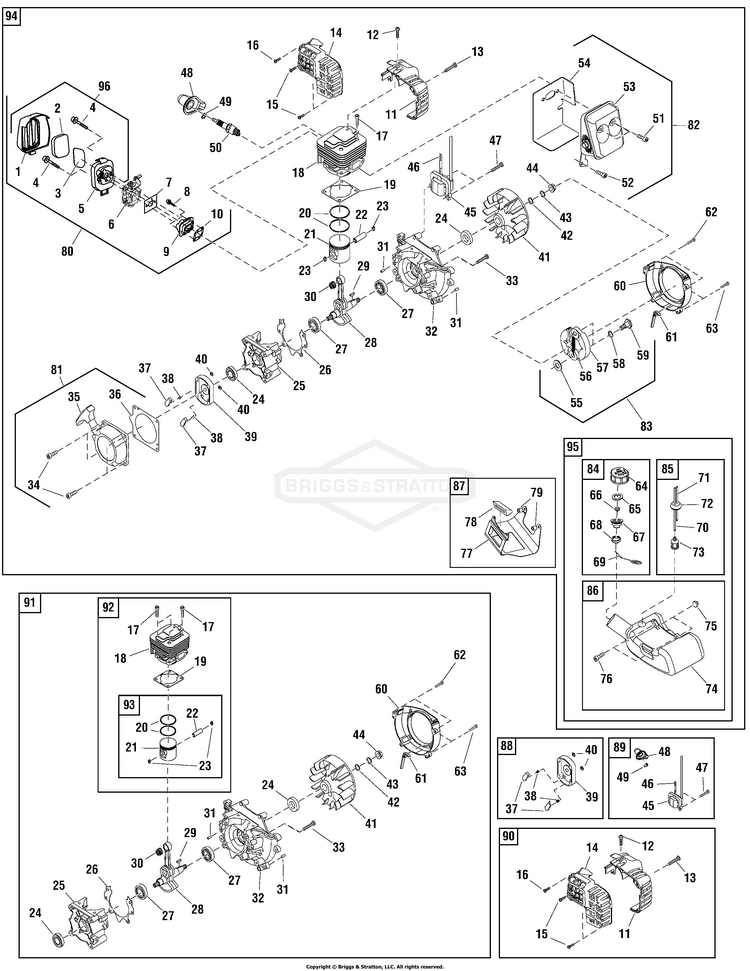

Engine Group - SP33

...
...
1
COVER, Cleaner, Outer BS-701903
...
2
FILTER BS-701895
...
3
BRACKET, Filter Net BS-701896
...
5
BRACKET, Air Cleaner BS-701904
...
6
CARBURETOR BS-84007179
...
7
GASKET, Carburetor BS-700327
...
9
ADMITTING PIPE BS-701910
...
10
GASKET, Admitting Pipe BS-700325
...
11
SHROUD, Front BS-700762
...
14
SHROUD, Back BS-700812
...
15
SCREW, Self Tapping, 5 x 20 BS-700764
...
16
SCREW, Self Tapping, 4.2 x 30 BS-700765
...
17
BOLT, M5 x 18 BS-700391
...
18
CYLINDER BS-701886
...
19
GASKET, Cylinder BS-700334
...
20
RING, Piston BS-700338
...
21
PISTON BS-700339
...
22
PIN, Piston BS-700337
...
23
RING, Pin Retain BS-700314
...
24
SEAL, Oil, 11.7 x 22 x 7 BS-700345
...
25
CRANK CASE, Rear BS-701888
...
26
GASKET, Crank Case BS-700347
...
27
BEARING, 6201/P6 BS-700346
...
28
CRANKSHAFT BS-700817
...
29
KEY, 3 x 5 x 13 BS-700341
...
30
BEARING, Needle BS-700816
...
31
PIN, Cylindrical, B4 x 10 BS-700386
...
32
CRANK CASE, Front BS-701887
...
35
STARTER BS-700809
...
36
STARTER PAD BS-700329
...
41
FLY WHEEL BS-701893
...
42
WASHER, Flat, Dia. 8 BS-700380
...
43
WASHER, Spring, Dia. 8 BS-700379
...
44
NUT, M8 BS-700378
...
45
MAGNETO COIL BS-701902
...
46
CORD, Magneto BS-700827
...
48
BOOT, Spark Plug BS-700352
...
49
CLIP, Spark Plug BS-700351
...
50
SPARK PLUG BS-700360
...
53
MUFFLER BS-702123
...
54
GASKET, Muffler BS-700825
...
55
WASHER, B BS-700383
...
56
SPRING, Clutch BS-701897
...
57
EXPANDER, Complete BS-701968
...
58
WASHER, Wave BS-700382
...
59
SCREW, Shaft BS-700767
...
60
COVER, Fan BS-701889
...
61
FLASH PAN BS-700362
...
73
FILTER, Fuel BS-701666
...
74
FUEL TANK BS-701969
...
75
PLUG, Rubber BS-700388
...
77
BRACKET, Fuel Tank BS-700370
...
78
COVER, Rubber BS-700390
...
79
PAD, Bracket BS-700389
...
80
KIT, Air Cleaner & Carburetor (Includes Ref. Nos. 1, 2, 3, 4, 5, 6, 7, 8, 9 & 10) BS-84007197
...
81
KIT, Starter Assembly (Includes Ref. Nos. 34, 35 & 36) BS-701912
...
82
KIT, Muffler Assembly (Includes Ref. Nos. 51, 52, 53 & 54) BS-702124
...
83
KIT, Expander Assembly (Includes Ref. Nos. 55, 56, 57, 58 & 59) BS-701916
...
84
KIT, Fuel Cap Assembly BS-701894
...
85
KIT, Fuel Line Assembly (Includes Ref. Nos. 70, 71, 72 & 73) BS-701915
...
86
KIT, Fuel Tank Assembly (Includes Ref. Nos. 74, 75 & 76) BS-701917
...
87
KIT, Tank Bracket Assembly (Includes Ref. Nos. 77, 78 & 79) BS-701918
...
88
KIT, Start Reel Assembly (Includes Ref. Nos. 37, 38, 39 & 40) BS-701892
...
89
KIT, Magneto Assembly (Includes Ref. Nos. 45, 46, 47, 48 & 49) BS-701919
...
90
KIT, Shroud Assembly (Includes Ref. Nos. 11, 12, 13, 14, 15 & 16) BS-701920
...
91
KIT, Cylinder Assembly (Includes Ref. Nos. 24, 25, 26, 27, 28, 29, 30, 31, 33, 42, 43, 44, 60, 61, 62, 63, 72 & 73) BS-701921
...
92
KIT, Cylinder Head (Includes Ref. Nos. 17, 18, 19 & 93) BS-702024
...
93
KIT, Piston (Includes Ref. Nos. 20, 21, 22 & 23) BS-702025
...
94
ENGINE ASSEMBLY, Complete BS-84007198
...
95
KIT, Fuel Tank & Cap (Includes Ref. Nos. 84, 85 & 86) BS-702360
...
96
KIT, Air Cleaner (Includes Ref. Nos. 1, 2, 3, 4 & 5) BS-702361

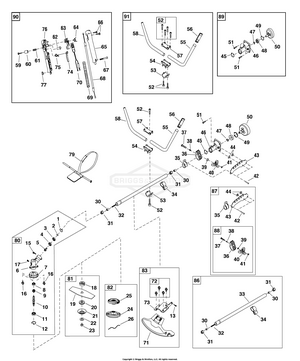

Shaft Group

...
...
5
PINION BS-702423
...
7
COVER, Blade BS-700769
...
9
GEAR BS-702424
...
17
BOLT, M8 x 12 BS-701971
...
18
GASKET, Spline BS-700772
...
19
BLADE, Two Teeth BS-84007144
...
20
HOLDER BS-700841
...
21
PROTECTOR, Blade BS-701901
...
22
WASHER, Wave, Dia 10 BS-700773
...
23
NUT BS-700397
...
24
STRAIGHT SHAFT CAST H BS-706436
...
25
COVER, Alloy Head BS-84007145
...
26
TRIMMER LINE (10 Pack) BS-84007146
...
30
BEARING, Oil BS-700407
...
31
RUBBER COVER, Bearing Oil BS-700406
...
32
DRIVE SHAFT BS-701890
...
33
SHAFT, Straight BS-84007147
...
34
RETAINER, Wire BS-701906
...
35
RING, Hang BS-700420
...
36
RING FOR LIMIT BS-701909
...
40
HANDLE, Self Lock BS-701899
...
43
HANG HANDLE BS-84007148
...
44
SPACER, Hang Handle BS-701908
...
50
CLUTCH DRUM, Complete BS-701471
...
53
BRACKET, Shaft, Lower BS-84007149
...
54
BRACKET, Shaft, Upper BS-84007150
...
55
HANDLE, Left BS-84007151
...
56
GRIP, Handle BS-80090624
...
57
HANDLE, Mounting, Upper BS-84007153
...
58
HANDLE, Right BS-84007154
...
59
SCREW, ST 2.9 x 13 BS-84007155
...
60
BUTTON, Speed Lock BS-84007190
...
61
SPRING, Speed Lock BS-84007157
...
62
PIN, Clock BS-84007381
...
63
TRIGGER, Presence BS-84007191
...
64
SPRING BS-84007160
...
65
COVER, Throttle BS-84007161
...
66
SCREW, ST 2.9 x 18 BS-84007162
...
68
CABLE, Comp. BS-700781
...
69
COVER, Cable BS-84007163
...
70
STOP BUTTON ASSEMBLY BS-84007192
...
71
SAFETY GUARD BS-84007165
...
73
HOLDER, Safety BS-84007166
...
74
TRIGGER, Throttle BS-84007193
...
75
SPRING BS-84007168
...
76
COVER, Throttle BS-84007169
...
79
BELT BS-701900
...
80
KIT, Gear Box Assembly BS-84007170
...
81
KIT, Blade Assembly BS-84007171
...
82
KIT, Alloy Head BS-84007172
...
83
KIT, Safety Guard BS-84007173
...
86
KIT, Drive Shaft Assembly, SP BS-84007174
...
87
KIT, Hang Handle Assembly BS-84007175
...
88
KIT, Limit Ring Assembly BS-701930
...
89
KIT, Clutch Assembly BS-701931
...
90
KIT, Throttle Assembly, B&S SP BS-84007194
...
91
KIT, Handle Assembly BS-84007177
...
...
...
