Murray 1697285 - Briggs & Stratton, BP43, Brush Cutter

Model: 1697285 - , BP43, Brush Cutter

Save
 Part Not Listed?Part Not Listed?
product name

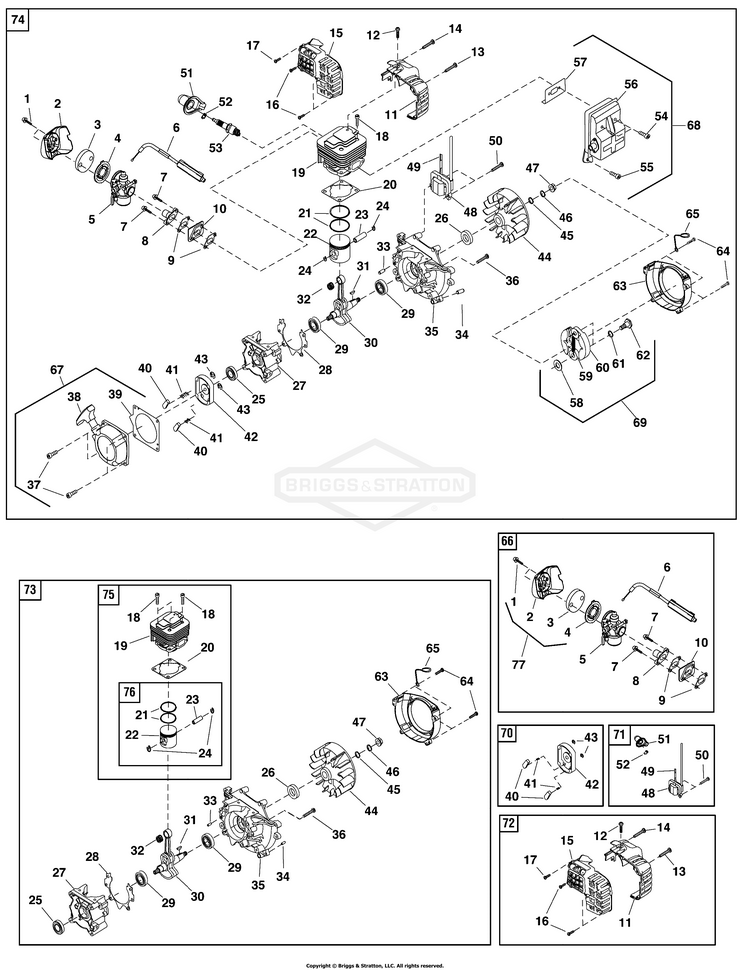

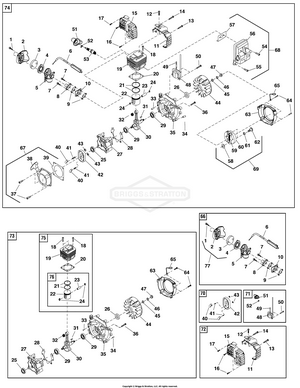

Engine Group - BP43

...
...
1
BOLT, M4 x 25 BS-701976
...
2
COVER, Cleaner, Outer BS-701174
...
3
FILTER BS-701089
...
4
BRACKET, Filter Net BS-701088
...
5
CARBURETOR, Ruixing BS-84007408
...
6
FUEL CABLE ASSEMBLY BS-701978
...
7
BOLT, M5 x 25 BS-701979
...
8
ADMITTING PIPE BS-701095
...
9
GASKET, Admitting Pipe BS-700847
...
10
GASKET BS-701177
...
11
SHROUD, Front BS-700907
...
15
SHROUD, Rear BS-700908
...
16
SCREW, Self Tapping, 5 x 20 BS-700764
...
17
SCREW, Self Tapping, ST4.2 x 25 BS-700924
...
18
BOLT, M5 x 20 BS-700374
...
19
CYLINDER BS-702052
...
20
GASKET, Cylinder BS-700853
...
21
RING, Piston BS-702053
...
22
PISTON BS-700858
...
23
PIN, Piston BS-700856
...
24
RING, Pin Retain BS-700912
...
25
SEAL, Oil, 11.7 x 22 x 7 BS-700345
...
26
OIL SEAL, 30 x 14.7 x 7 BS-700864
...
27
CRANK CASE, Rear BS-702039
...
28
GASKET, Crank Case BS-700866
...
29
BEARING, 6201/P6 BS-700865
...
30
CRANKSHAFT BS-700861
...
31
KEY, 3 x 5 x 13 BS-700341
...
32
BEARING, Needle BS-700860
...
33
PIN, Cylindrical, B5 x 12 BS-700885
...
34
PIN, Cylindrical, B4 x 10 BS-700386
...
35
CRANK CASE, Front BS-702040
...
38
STARTER BS-700809
...
39
STARTER PAD BS-700329
...
44
FLY WHEEL BS-702054
...
45
WASHER, Flat, Dia. 8 BS-700380
...
46
WASHER, Spring, Dia. 8 BS-700379
...
47
NUT, M8 BS-700378
...
48
MAGNETO COIL BS-702034
...
49
CORD, Magneto BS-701179
...
51
BOOT, Spark Plug BS-700352
...
52
CLIP, Spark Plug BS-700351
...
53
SPARK PLUG BS-700360
...
54
BOLT, M5 x 55-10.9 BS-702032
...
56
MUFFLER BS-702125
...
57
GASKET, Muffler BS-700874
...
58
WASHER, B BS-700383
...
59
SPRING, Clutch BS-701897
...
60
EXPANDER, Complete BS-701968
...
61
WASHER, Wave BS-700382
...
62
SCREW, Shaft BS-700767
...
63
COVER, Fan BS-702041
...
65
BRACKET BS-701099
...
66
KIT, Air Cleaner & Carburetor (Includes Ref. Nos. 1, 2, 3, 4, 5, 6, 7, 8, 9 & 10) BS-84007409
...
67
KIT, Starter Assembly (Includes Ref. Nos. 37, 38 & 39) BS-701912
...
68
KIT, Muffler Assembly (Includes Ref. Nos. 54, 55, 56 & 57) BS-702031
...
69
KIT, Expander Assembly (Includes Ref. Nos. 58, 59, 60, 61 & 62) BS-701916
...
70
KIT, Start Reel Assembly (Includes Ref. Nos. 40, 41, 42 & 43) BS-701892
...
71
KIT, Magneto Assembly (Includes Ref. Nos. 48, 49, 50, 51 & 52) BS-702033
...
72
KIT, Shroud Assembly (Includes Ref. Nos. 11, 12, 13, 14, 15, 16 & 17) BS-702035
...
73
KIT, Cylinder Assembly (Includes Ref. Nos. 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 45, 46, 47, 63, 64, 65 & 75 BS-702036
...
74
ENGINE BS-84007373
...
75
KIT, Cylinder Head (Includes Ref. Nos. 18, 19, 20 & 76) BS-702037
...
76
KIT, Piston (Includes Ref. Nos. 21, 22, 23 & 24) BS-702038
...
77
KIT, Air Cleaner (Includes Ref. Nos. 1, 2, 3 & 4) BS-702419

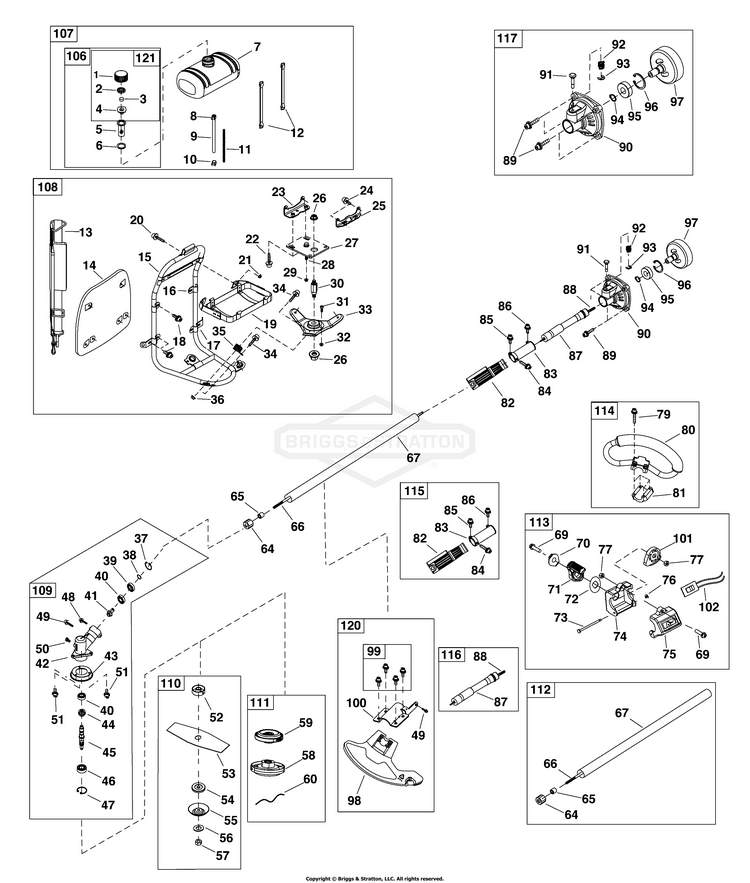

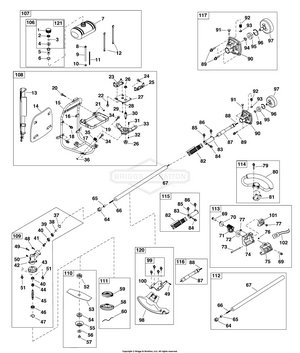

Shaft Group

...
...
1
CAP, Fuel Tank BS-702028
...
2
INNER CAP, Fuel Tank BS-701112
...
3
NET, Fuel Filter BS-701111
...
4
INNER CAP, Rubber BS-701110
...
5
FUEL FILTER ASSEMBLY BS-701108
...
6
GASKET, Filter BS-701107
...
7
FUEL TANK BS-701101
...
8
CLAMP, Fuel Hose, Upper BS-701103
...
9
FUEL PIPE BS-701104
...
10
CLAMP, Fuel Hose, Lower BS-701105
...
11
SPRING, Fuel Pipe Protection BS-701106
...
12
BELT, Fuel Tank BS-701102
...
13
BELT BS-701115
...
14
CUSHION, Back BS-701116
...
15
BRACKET, Engine BS-701117
...
16
BRACKET, Back Cushion, Upper BS-701127
...
17
BRACKET, Back Cushion, Lower BS-701126
...
18
BOLT, M5 x 16 BS-701987
...
19
BRACKET ASSEMBLY, Fuel Tank BS-701118
...
21
NUT, M5 BS-701128
...
22
BOLT, M6 x 16 BS-701988
...
23
BRACKET, Front BS-701123
...
24
BOLT, M5 x 16 BS-701987
...
25
BRACKET, Rear BS-701122
...
26
NUT, M10 BS-701124
...
27
PLATE, Bracket BS-701121
...
28
BOLT, M6 x 40 BS-701989
...
29
NUT, M6 BS-701125
...
30
SHAFT BS-701120
...
31
BOLT, M5 x 12 BS-700399
...
32
NUT, M5 BS-701128
...
33
SEAT ASSEMBLY BS-701119
...
34
BOLT, M6 x 16 BS-701988
...
35
SPRING BS-701130
...
36
NUT, M6 BS-701125
...
39
BEARING BS-701991
...
41
PINION BS-702423
...
42
CASE, Gear Box BS-701134
...
43
COVER, Blade BS-700393
...
44
GEAR BS-702424
...
46
BEARING BS-701992
...
50
BOLT, M6 x 12 BS-701993
...
51
BOLT, M5 x 10 BS-701994
...
52
GASKET, Spline BS-700394
...
53
BLADE, Two Teeth BS-84007144
...
54
HOLDER BS-700841
...
55
PROTECTOR, Blade BS-701901
...
56
WASHER, Wave, Dia 10 BS-700773
...
57
NUT BS-700397
...
59
COVER, Alloy Head BS-84007145
...
60
TRIMMER LINE (10 Pack) BS-84007146
...
64
COVER, Drive Shaft, Rubber BS-701140
...
65
OIL BEARING BS-700407
...
66
DRIVE SHAFT BS-701139
...
67
SHAFT, Straight, BP Brusch BS-84007393
...
71
LEVEL, Throttle, Red BS-80090678
...
72
GASKET BS-84007386
...
73
PIN BS-84007387
...
74
THROTTLE COVER, Rear BS-84007388
...
75
THROTTLE COVER, Front BS-84007389
...
76
STOP RING. 2.5 BS-84007390
...
79
BOLT, 5/16-18X1.25 G5 BS-703446
...
80
HANDLE BS-702009
...
81
HOLDER, Lower BS-702010
...
82
COVER, Shaft Connection BS-84007411
...
83
CONNECTOR, Straight Shaft BS-701152
...
85
BOLT, M5 x 20 BS-702013
...
86
BOLT, M5 x 30 BS-702014
...
87
SHAFT, Flexible, Outer BS-702015
...
88
SHAFT, Flexible, Inner BS-702016
...
89
BOLT, M6 x 20 BS-702018
...
90
CASE, Clutch BS-701157
...
91
PIN BS-701159
...
92
SPRING BS-701160
...
93
STOP RING, 5 BS-701161
...
97
CLUTCH DRUM, Comp. BS-701158
...
98
SAFETY GUARD BS-84007165
...
99
BOLT, M5 x 10 BS-84007380
...
100
HOLDER, Safety BS-84007166
...
101
SEAT, Throttle Control BS-84007407
...
102
SWITCH, Stop, Red BS-84007398
...
106
KIT, Fuel Cap Assembly BS-701984
...
107
KIT, Fuel Tank Assembly BS-701983
...
108
KIT, Back Belt Group BS-701986
...
109
KIT, Gear Box Assembly BS-84007410
...
110
KIT, Blade Assembly BS-84007171
...
111
KIT, Alloy Head BS-84007172
...
112
KIT, Drive Shaft Assembly BS-84007394
...
113
KIT, Throttle Assembly BS-84007379
...
114
KIT, Front Handle BS-702007
...
115
KIT, Shaft Connection, Group BS-702011
...
116
SHAFT ASSEMBLY, Flexible BS-701153
...
117
KIT, Clutch Assembly BS-702017
...
120
KIT, Safety Guard BS-84007173
...
121
LID, Fuel Tank, Comp. BS-701985
...
...
...
