Murray 1695642A-00 - Turbo, 46" & 52" Mower Deck

Model: 1695642A-00 - Turbo, 46" & 52" Mower Deck

Save
 Part Not Listed?Part Not Listed?
product name

Turbo, Housing

...
...
0010
SCREW, HEX, 1/4-20X.5 BS-704130
...
0020
NUT BS-703161
...
0030
NUT, Hex Flange Whiz-Lock, 5/16-18 BS-703330
...
0040
HOUSING ASSEMBLY BS-84004565
...
0050
BOLT, 1/4-20 x 2" Round Head Short Square Neck, GR5, Black BS-1931317
...
0060
PLATE-COVER,BLACK POL BS-1705267SM
...
0070
BOLT, Round Head, Short Square Neck BS-703185
...
0080
BEARING, BALL BS-2108202SM
...
0090
BEARING RETAINER - PL BS-1665982SM
...
0100
RETAINER, GR5, 5/16 BS-703297
...
0110
LATCH, Turbo BS-1738000AYP
...
0120
ANCHOR, Spring BS-1668500SM
...
0130
CAPSCREW,1/4-20X0.875 BS-703819
...
0140
WASHER, FLAT BS-703451
...
0150
SPACER, 3/8 x 5/8 x 1-3/4 BS-1676833SM
...
0160
SPRING, Extension BS-1716853SM
...
0170
WASHER, FLAT BS-703878
...
0180
NUT, 3/18-16, GR2 BS-703230
...
0190
LEVER ASSEMBLY, Turbo BS-1706284AYP
...
0200
PULLEY, 2-3/4" Diam., For 4L Belt BS-1736092SM
...
0210
SETSCREW, Nylok, 5/16-18 x 5/16 BS-1960619SM
...
0220
KEY, Woodruff BS-2860403SM
...
0230
WASHER, Flat, 7/16 x 1-1/4 OD BS-1933263
...
0240
PULLEY, Idler BS-2154534SM
...
0250
Bolt BS-01X111MA
...
0260
WELD, PLATE & BAR ASSEMBLY BS-1738101AYP
...
0270
BOLT, Carriage, 3/8-16 x 2-1/4 BS-1931355SM
...
0280
FAN ASSY. (5 Blade) BS-1706631ASM
...
0290
SCREW, Hex Hd., Slotted, Plastite, 1/4-10 x 5/8 BS-1960728SM
...
0300
BRACKET, Deflector, Prop, Turbo BS-1738166AYP
...
0310
STOP, Belt BS-1678435SM
...
0320
WASHER, 5/16 BS-703302
...
0330
LCKWSHR BS-703116
...
0340
HN, 5/16C GR5 YZ BS-7091511SM
...
0370
WASHER, 5/16 BS-703298
...
0380
CAPSCREW, Hex Head, 1/2 -13 x 4 BS-23316
...
0390
BOLT, 3/8-16X1.75 BS-703812
...
0400
ASSEMBLY, Chute, Turbo Blower BS-1737994AYP
...
0410
NUT, 3/8-16 BS-703333
...
0420
NUT, Hex Lock, 1/2-13 BS-1960379SM
...
0430
V-BELT, Cog, 39.62 BS-1736554YP
...
0440
SHIM THICK BS-1751304AYP
...
0450
SHIM THIN BS-1751305AYP

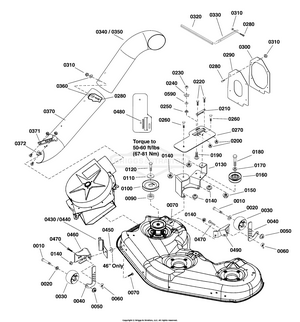

Turbo, Mounting

...
...
0010
BOLT, SHOULDER BS-1736539YP
...
0020
WASHER, 0.516IDX1OD BS-703853
...
0030
WHEEL, GAUGE BS-1736896YP
...
0040
BRKT WHEEL ADJ BS-1739472AYP
...
0050
NUT, 3/8-16 Hex Flange Esna, Black BS-703158
...
0060
NUT-WING .375-16 NYLO BS-7091049SM
...
0070
BOLT, 5/16-18X1.25 G5 BS-703446
...
0090
SPACER, Pulley BS-1738102YP
...
0100
PULLEY, 3-3/4" BS-1713090SM
...
0110
WASHER, SPRING 0.475I BS-1656916SM
...
0120
CAPSCREW BS-1921212FS
...
0130
BRACKET, Belt Cover BS-1737989AYP
...
0140
NUT, 5/16-18, GR5 BS-703409
...
0150
NUT, 3/8-16 BS-703333
...
0160
PULLEY, w/Bearing BS-1721134SM
...
0170
WASHER, FLAT BS-703878
...
0180
CAPSCREW, 3/8-16X2 BS-703589
...
0190
BOLT,RD SH SQ BS-703175
...
0200
NUT, 1/4-20, GR5 BS-703233
...
0210
BRKT HOC GAGE BS-1739486AYP
...
0220
BOLT,1/4-20X0.5 BS-703978
...
0230
NUT, 5/16-18 Hex Lock, ESNA, YZ BS-7091298
...
0240
KNOB, Plastic, 5/16-18 BS-1733098SM
...
0250
NUT,SPEED BS-028X76MA
...
0260
BOLT BS-703225
...
0270
COVER, Belt, Turbo BS-1738143AYP
...
0280
SCREW, Truss Head Phillips, 10-24 x 3/4 BS-1960404SM
...
0290
SEAL BS-1733741YP
...
0300
FLANGE, Seal BS-1732735ASM
...
0310
NUT, NYLOCK, 10-24 BS-703412
...
0320
EDGING, Seal BS-1721175SM
...
0330
PLATE, Deflector BS-1733580ASM
...
0340
TUBE, Upper, Turbo BS-1738160YP
...
0350
TUBE, Upper BS-1732800SM
...
0360
WASHER, Rivet, 3/16 BS-1910531SM
...
0370
TUBE & CLIP ASSEMBLY BS-1719719SM
...
0371
STRAP, Hood Rubber BS-2171600SM
...
0372
PIN, Latch BS-054563MA
...
0430
ASSEMBLY, Mount, Turbo Blower BS-1737997AYP
...
0440
ASSY MOUNT BS-1739438AYP
...
0450
SPACER, Pivot 46" Decks only BS-1723244SM
...
0460
BRKT GAGE WHEEL BS-1739471AYP
...
0470
BOLT, RD SQ 3/8-16X1 BS-703815
...
0480
DECAL, Height of Cut BS-1737541YP
...
0490
BRKT GAGE WHEEL BS-1739787AYP
...
0590
WASHER, 5/16 BS-703298
...
...
...
