Midea L2 FRONT LOADING WASHING MACHINE LF52N3AWWFR

Model: LF52N3AWWFR

Save Part Not Listed?
product name

...
...
1
ACCESSORY ASSEMBLY MID-16338100001841
...
2
ACCESS_DOOR_SHIELD_SUB MID-12138100021909
...
3
AMERICAN STANDARD POWER CORD MID-17438100001072
...
4
BAFFLE MID-12138100003761
...
5
BASKET ASSEMBLY MID-12238200003114
...
6
BELT MID-12638100000246
...
7
BOLT AND SPRING WASHER AND PLAIN WASHER MID-11301002000028
...
8
CONTROL PANEL ASSEMBLY MID-12138100A54254
...
9
COUNTERBALANCE BOLT MID-11301808000010
...
10
CROSSBOARD SCREW AND WASHER ASSEMBLY MID-11301013000006
...
11
DAMPER MID-12938100001322
...
12
DAMPER PIN MID-12138100003923
...
13
DISPENSER_SUB MID-12138100003770
...
14
DISPLAY PANEL MID-17138100020643
...
15

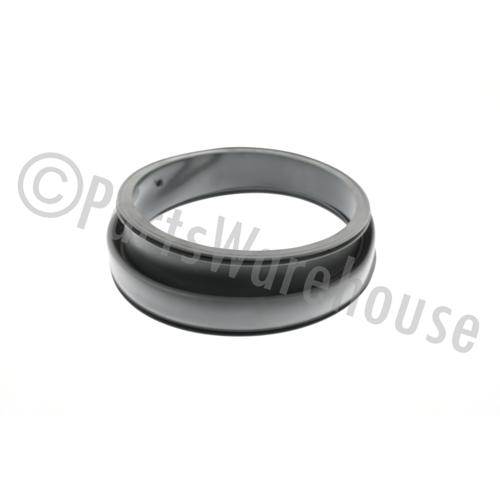

DOOR GASKET MID-12638100003002
...
16
DOOR GASKET CLAMP MID-12938100000021
...
17
DOOR LOCK MID-17438100000466
...
18
DOOR SUBASSEMBLY MID-12138100A51143
...
19
DRAIN HOSE MID-12138100003964
...
20
DRAIN HOSE ASSEMBLY MID-12138100002976
...
21
DRAWER MID-12138100003888
...
22
DRAWER HANDLE AND PRINTING MID-12138100A54288
...
23
DRAWER_LATCH_LEVEL MID-12138100003800
...
24
ELECTRIC FILTER ASSEMBLY MID-17438100001354
...
25
FREQUENCY-CONVERTER MID-17138100021372
...
26
FRONT PANEL MID-12238100008074
...
27
FRONT TUB MID-12138100025466
...
28
FRONT_PANEL_PIN MID-12138100003774
...
29
FRONT_TOP_BRACKET MID-12238100005595
...
30
GASKET_OUTSIDE_CLAMP MID-12938100000103
...
31
HEATER MID-17438100000435
...
32
HEATER SUPPORT MID-12238100000507
...
33
HEXAGON HEAD BOLT MID-11301806000007
...
34
INSERTER MID-12138100003939
...
35
INTERNAL WIRE ASSEMBLY MID-17438100006709
...
36
KNOB ASSEMBLY MID-12138200009191
...
37
LOWER COUNTERWEIGHT MID-12738100000583
...
38
MAIN_BOX_SUB MID-12138100000303
...
39
MOTOR_WASHER MID-12238100000802
...
40
PCB MID-17138100023393
...
41
PERMANENT MAGNET SYNCHRONOUS PUMP MID-11001011000121
...
42
PLAINWASHER MID-11300402000011
...
43
PLAINWASHER MID-11300410000029
...
44
PLATE MID-12138100034747
...
45
PULLEY MID-12338100000146
...
46
PUMP_RUBBER_ISOLATOR MID-12638100000316
...
47
REAR CONTERWEIGHT MID-12738100000601
...
48
REAR COVER MID-12238100005581
...
49
REAR TUB ASSEMBLY MID-12138100032114
...
50
REINFORCING PLATE MID-12238100005585
...
51
SCREW MID-11301212000001
...
52
SCREW MID-11301225000094
...
53
SEALED GASKET MID-12638100000294
...
54
SERVICE PANEL DOOR MID-12138100021906
...
55
SHIPPING_BOLT(SHORT)_SUB MID-12138100003891
...
56
SHIPPING_BOLT_SUB MID-12138100003903
...
57
SHIPPING_SCREW_COVER MID-12138100003906
...
58
SIPHON MID-12138100002383
...
59
SOFTENER COVER MID-12138100000563
...
60
SPIDER ASSEMBLY MID-12338100000094
...
61
SPRING SUPPORT MID-12138100003064
...
62
SUSPENSION SPRING MID-12900101002580
...
63
TAPPING SCREW MID-11303202000007
...
64
TAPPING SCREW MID-11303223000235
...
65
TAPPING SCREW MID-11303220000025
...
66
TAPPING SCREW AND PLAIN WASHER MID-11301014000004
...
67
THREE PHASE ASYNCHRONOUS MOTOR MID-11002013001151
...
68
TOP COVER ASSEMBLY MID-12238100008072
...
69
TOP COVER PIN MID-12138100010017
...
70
TUB DRAIN HOSE ASSEMBLY MID-12638100003001
...
71
TUB SEAL MID-12638100000175
...
72
TUB WATER INLET HOSE ASSEMBLY MID-12638100003003
...
73
UPPER COUNTERWEIGHT MID-12738100000582
...
74
VENT_HOSE MID-12138100003766
...
75
VENT_HOSE_COUPLING MID-12138100003926
...
76
WATER INLET HOSE ASSEMBLY MID-12038000000421
...
77
WATER INLET PIPE MID-12038100000013
...
78
WATER INLET PIPE MID-12638100000328
...
79
WATER INLET VALVE MID-17438100000417
...
80
WATER LEVEL SENSOR MID-11201005000003
...
81
WIRE_CATCH MID-12138100003956
...
82
WIRE_CATCH MID-12138100003954
